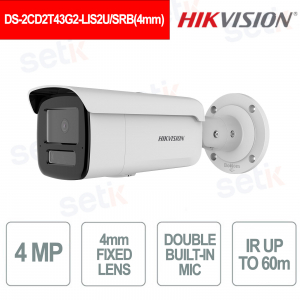

Hikvision 4MP AcuSense 4mm IP Bullet Camera with Smart Hybrid Light and Active Alarm

Hikvision 4MP AcuSense 4mm IP Bullet Camera with Smart Hybrid Light and Active Alarm
BEST SELLER -35% New

DS-2CD2T43G2-LIS2U/SRB(4mm) - is a professional IP bullet camera designed for active video surveillance of outdoor and perimeter areas. It guarantees detailed images thanks to the 4 MP resolution and excellent performance even in strong backlighting with the real 120 dB WDR . It is equipped with a 4 mm fixed lens , ideal for a perfect balance between width of vision and depth of detail. AcuSense technology with artificial intelligence allows advanced detection of people and vehicles, reducing false alarms. The Smart Hybrid Light system with IR, white light, red/blue strobe and acoustic warning performs a powerful deterrent function. Metal structure with IP67 protection for total reliability outdoors. Hikvision

Technical Data Sheet

Reference: DS-2CD2T43G2-LIS2U/SRB(4mm)

Brand: Hikvision

EAN: 6931847119126

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD2T43G2-LIS2U/SRB(4mm) – 4mm 4MP FIXED LENS BULLET CAMERA - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - ACTIVE ALARM

Hikvision

The Hikvision DS-2CD2T43G2-LIS2U/SRB is a professional IP bullet camera designed for active video surveillance of outdoor and perimeter environments. It guarantees extremely detailed images thanks to 4 MP resolution and high performance even in strong backlighting conditions with true 120 dB WDR . It is equipped with a 4 mm fixed lens , ideal for a perfect balance between wide vision and depth of detail. AcuSense technology with artificial intelligence enables advanced detection of people and vehicles, reducing false alarms. The Smart Hybrid Light system with IR, white light, red/blue strobe and audible warning performs an effective active deterrent function. Metal structure with IP67 protection for total reliability outdoors.

Main features:

- Resolution 4 MP (2688×1520)

- 4mm fixed optics

- AcuSense technology with deep learning

- Intelligent detection of people and vehicles

- Smart Hybrid Light with IR, white light and red/blue strobe

- Integrated acoustic warning with speaker

- Real WDR 120 dB

- Built-in dual microphone

- H.265+ video compression

- IP67 protection for outdoor use


Further details

Fixed optics :
The 4mm professional lens offers an excellent compromise between field of view (82° horizontal) and depth of field, ideal for precise monitoring of perimeters, accesses and external areas with high definition of detail.
Resolution:
4 MP 2688×1520 Progressive Scan CMOS sensor delivers sharp, detailed images, perfect for advanced video analytics and accurate subject identification.
Acusense :
AcuSense AI technology uses deep learning algorithms to focus on real events, improving efficiency and dramatically reducing false alarms.
Human Detection:
Intelligent person detection allows alarms to be triggered only in the presence of humans, increasing the reliability of the security system.
Vehicle Detection :
The vehicle detection function allows for accurate monitoring of cars and vehicles in transit, ideal for car parks, entrances and sensitive areas.
Motion Detection :
Intelligent motion detection is optimized by AI to distinguish significant from insignificant movements.
Face Detection :
The facial detection system enhances video analytics and supports advanced monitoring and verification applications.
Deep Learning Function :
Deep learning features include perimeter protection with line crossing and intrusion detection, with targeted classification of people and vehicles.
Microphone :
The dual-microphone array enables high-quality audio recording in real time , offering a complete level of audio-video security.
 Network Protocol:
Support for the main network protocols (ONVIF Profile S/G, TCP/IP, HTTPS, RTSP, IPv4/IPv6) guarantees maximum compatibility and integration with IP video surveillance systems.

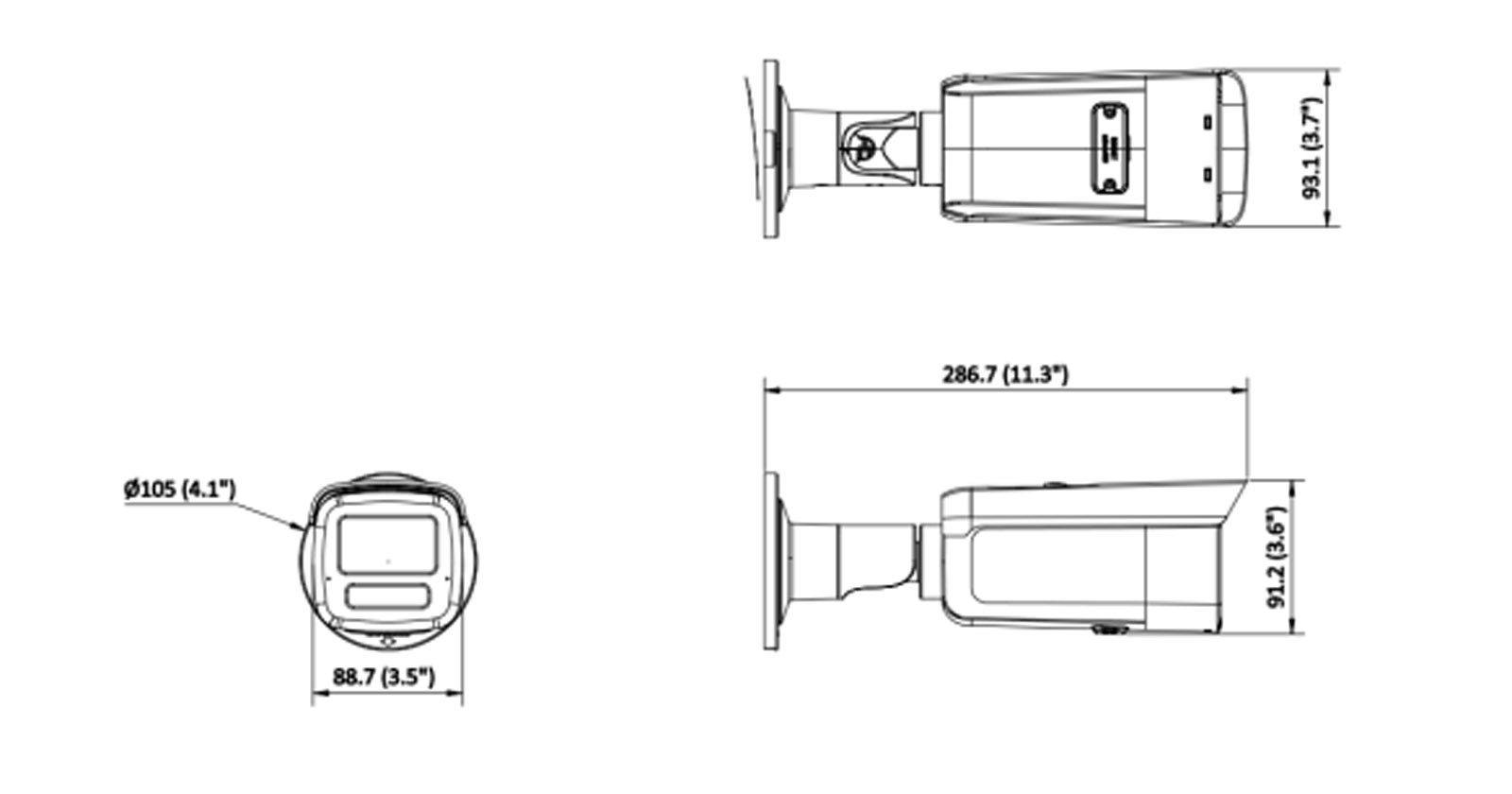

DS-2CD2T43G2-LIS2U-SRB(4mm) dimensions

Technical data sheet

DS-2CD2T43G2-LIS2U/SRB(4mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV 82°, vertical FOV 45°, diagonal FOV 96°
Lens Mount M12
Iris Type Fixed
Openings F1.6
Depth of Field 1.4 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 60 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Target Cropping

Yes

Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200,Hik-Connect,Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Web Browser

Plug-in required live view: IE 11,
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch

Yes

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

8 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Built-in Speaker 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Audio Built-in Microphone: Arrayed dual-microphone
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Face detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 1.4 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 4, max. 18W

Material

Metal

Dimension

88.7 mm × 93.1 mm × 286.7 mm (3.5" × 3.7" × 11.3")

Package Dimension

386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")

Weight

Approx. 1150 g (2.5 lb.)

With Package Weight

Approx. 1640 g (3.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Flashing Light

SRB models: Red and Blue Light
Other models: White Light

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
LOA: IEC/EN 60950-1
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
