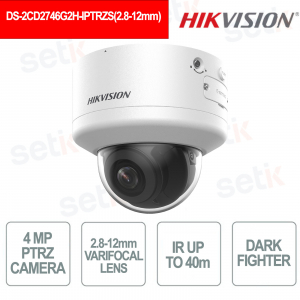

DS-2CD2746G2H-IPTRZS(2.8-12mm) - is a 4MP (2688×1520) IP dome camera with 1/1.8" Progressive Scan CMOS sensor, designed for high-performance professional video surveillance. It integrates a 2.8-12 mm motorized varifocal lens with motorized PTRZ (Pan, Tilt, Rotate, Zoom) and F1.2 aperture, offering a horizontal viewing angle from 114.6° to 41.8° and remote adjustment up to 1,000 cycles. AcuSense technology with Deep Learning allows intelligent classification of people and vehicles , with advanced perimeter protection and Face Capture. It guarantees clear images even in critical conditions thanks to DarkFighter 0.0008 Lux , WDR 120 dB and IR up to 40 m , with H.265+ compression to optimize bandwidth and storage. The certified metal structure IP66 and IK10 , with integrated audio and alarm I/O, ensures reliability in indoor and outdoor environments. Hikvision

Technical Data Sheet

Reference: DS-2CD2746G2H-IPTRZS(2.8-12mm)

Brand: Hikvision

EAN: 942160497815

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE SHIPPING! ×


FREE SHIPPING ON
THE ENTIRE CATALOGUE!

Code: FREE-WEEK-E
Only until 10:00 a.m. on 16/02

DS-2CD2746G2H-IPTRZS(2.8-12mm) – PTRZ DOME CAMERA VARIFOCAL LENS 2.8-12mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - DARKFIGHTER

Hikvision

The Hikvision DS-2CD2746G2H-IPTRZS is a 4MP (2688×1520) IP dome camera with 1/1.8" Progressive Scan CMOS sensor, designed for high-precision professional video surveillance. It integrates a 2.8-12 mm motorized varifocal lens with remote PTRZ (Pan, Tilt, Rotate, Zoom) up to 1,000 cycles, F1.2 aperture and horizontal viewing angle from 114.6° to 41.8° , ensuring maximum installation flexibility. AcuSense technology with Deep Learning allows intelligent classification of people and vehicles , Face Capture and advanced perimeter protection. Superior performance in critical conditions thanks to DarkFighter 0.0008 Lux, WDR 120 dB , IR up to 40 m and H.265+ compression to optimize bandwidth and storage. The IP66 and IK10 certified metal structure, with built-in audio and alarm I/O, it ensures reliability in indoor and outdoor environments.

Main features:

- Resolution 4 MP (2688×1520)

- 2.8-12 mm F1.2 motorized varifocal lens with remote PTRZ

- AcuSense technology with Deep Learning and Face Capture

- DarkFighter 0.0008 Lux and WDR 120 dB

- IR up to 40m with H.265+

- IP66 and IK10 protection with integrated audio and alarm


Further details

Varifocal optics :
2.8–12 mm
F1.2 : motorized varifocal lens with a horizontal viewing angle of 114.6° to 41.8° , precise framing adjustment and depth of field from 1 m to infinity, ideal for professional installations.
Resolution:
4MP 2688×1520
1/1.8" Progressive Scan CMOS sensor for high-definition images, advanced details and smooth recording up to 30 fps with H.265+ compression to optimize bandwidth and storage.
Motorized PTRZ (Pan, Tilt, Rotate, Zoom):
Remote adjustment with rotation up to 350° pan and rotate and 85° tilt , up to 1,000 cycles, for quick and precise setup without manual intervention.
DarkFighter Technology 0.0008 Lux :
Excellent low-light performance, with IR up to 40m and Smart Supplement Light for professional night-time video surveillance.
Human Detection:
AcuSense Deep Learning- based intelligent people classification system reduces false alarms and improves the accuracy of security events.
Vehicle Detection:
Accurate vehicle identification with targeted alarm activation, ideal for access control, parking and sensitive perimeters.
Motion Detection :
Motion detection with filtering for specific targets (human/vehicle), integration with line crossing, intrusion, region entrance and region exiting for complete perimeter protection.
Deep Learning Function :
Smart features like Face Capture and Intelligent Perimeter Protection, designed for advanced video analytics in professional environments.
I/O Alarm :
Presence of 1 alarm input and 1 alarm output (24VDC/24VAC, 1A) with notifications via email, FTP/NAS, recording activation and acoustic signaling.
 Network Protocol:
Compatibility with TCP/IP, HTTPS, RTSP, ONVIF (Profile S, G, T), IPv4/IPv6 , TLS 1.1/1.2/1.3 encryption and 802.1X authentication for secure integration into VMS systems.

Technical data sheet

DS-2CD2746G2H-IPTRZS(2.8-12mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Remote adjustment (Max. 1,000 cycles)
Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
Lens Mount Integrated
Iris Type Fixed
Openings F1.2
Depth of Field 1 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Type

Mono sound

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200,Hik-Connect,Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Web Browser

Plug-in required live view: IE 11,
Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output, audible warning
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 1.05 A, max. 12.6 W, reverse polarity protection, two-core terminal block
PoE: IEEE 802.3af, Class 4, max. 15W

Material

Metal

Dimension

Ø155 mm × 140.4 mm (Ø6.10" × 5.53")

Package Dimension

203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")

Weight

Approx. 840 g (1.9 lb.)

With Package Weight

Approx. 1450 g (3.2 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
RCM: AS/NZS CISPR 32:2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006

Protection

IK10: IEC 62262:2002,IP66: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
