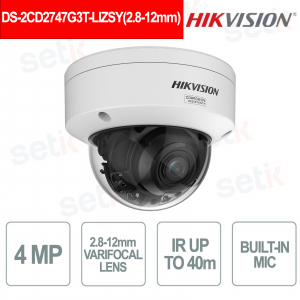

DS-2CD2747G3T-LIZSY(2.8-12mm) - is a 4 MP (2688×1520) IP dome camera with ColorVu 24/7 technology and 1/1.8" Progressive Scan CMOS sensor, designed for color images even in minimum light conditions. It integrates a 2.8–12 mm motorized varifocal lens with F1.2 aperture and 114.6°–41.8° horizontal field of view, ideal for adapting the frame from wide to telephoto. It has WDR 130 dB , HikAI-ISP for advanced noise reduction and Smart Hybrid Light with IR and white light up to 40 m. It supports H.265+/H.264+ compression , video analytics with classification of people and vehicles via deep learning and advanced perimeter protection. Metal structure with IP67, IK10 and NEMA 4X protection, also suitable for outdoor environments with moderate exposure to sunlight. corrosion. Hikvision

Technical Data Sheet

Reference: DS-2CD2747G3T-LIZSY(2.8-12mm)

Brand: Hikvision

EAN: 6936422118396

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD2747G3T-LIZSY(2.8-12mm) – DOME CAMERA VARIFOCAL LENS 2.8-12mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION - COLORVU

Hikvision

The Hikvision DS-2CD2747G3T-LIZSY is a professional 4 MP (2688×1520) IP dome camera with a 1/1.8" Progressive Scan CMOS sensor and 24/7 ColorVu technology for always color images even in very low light (0.0005 Lux). It integrates a 2.8–12 mm motorized varifocal lens with F1.2 aperture and 114.6°–41.8° horizontal FOV, ideal for covering large areas or focusing on specific details. It offers 130 dB WDR, HikAI-ISP with advanced noise reduction, Smart Hybrid Light IR and white light up to 40 m and video analytics with people/vehicle classification based on deep learning. The metal structure with IP67, IK10 and NEMA 4X protections guarantees reliability even in harsh outdoor environments.

Main features:

- Resolution 4MP 2688×1520

- 2.8-12mm F1.2 motorized varifocal lens

- ColorVu 24/7 color technology

- WDR 130 dB and HikAI-ISP

- Smart Hybrid Light IR + white light up to 40 m

- IP67, IK10, NEMA 4X protection


Further details

Varifocal optics :
2.8–12mm
with F1.2 aperture and wide 114.6°–41.8° field of view , ideal for adapting framing from wide-angle to telephoto and optimizing coverage of indoor and outdoor areas.
Resolution:
4MP
with 1/1.8" Progressive Scan CMOS sensor , for high definition images, high detail and superior performance in low light conditions.
Smart Hybrid Light :
With 850nm IR integration and white light up to 40m , equipped with intelligent lighting mode to ensure optimal visibility day and night.
24/7 Colorful Imaging :
ColorVu 24/7 colorful imaging technology for consistently colorful images even at very low brightness ( 0.0005 Lux ), improving the identification of critical subjects and details.
Human Detection:
With intelligent classification based on Deep Learning , it can filter out false alarms by distinguishing people from other objects.
Vehicle Detection :
Advanced with perimeter analysis (line crossing, intrusion, region entrance/exit) and targeted vehicle recognition
Motion Detection :
With alarm activation on specific targets (person/vehicle) for more precise control of events.
Deep Learning Function :
With Face Capture and advanced perimeter protection, designed for highly reliable professional video surveillance scenarios.
I/O Alarm :
Integrated 1 input / 1 output alarm system (24V DC/AC, 1A) with notifications, automatic recording and event sending to NAS/FTP/email.
 Network Protocol:
Full support for major network protocols (TCP/IP, HTTPS, RTSP, ONVIF Profile S/T/G, IPv4/IPv6, SSL/TLS) for maximum integration into IP networks and VMS systems.

Technical data sheet

DS-2CD2747G3T-LIZSY(2.8-12mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Lens Mount Integrated
Iris Type Fixed
Openings Max. F1.2
Depth of Field 1 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio
Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200,Hik-Connect,Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Web Browser

Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

130 dB

SNR ≥ 52 dB
Image Stabilization EIS
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Reset Key Yes
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.5W

Material

Base: Metal, cover: Metal

Dimension

Ø141 mm × 112 mm (Ø5.55" × 4.41")

Package Dimension

244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")

Weight

Approx. 850 g (1.9 lb.)

With Package Weight

Approx. 1355 g (3.0 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
