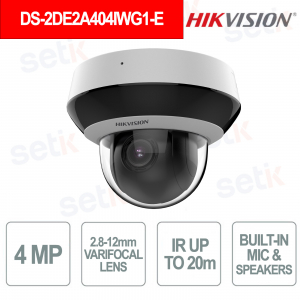

PTZ camera 4MP Acusense IR 20m 4x Zoom 2.8-12mm Lens IP66 IK10 AI Deep Learning - Hikvision

PTZ camera 4MP Acusense IR 20m 4x Zoom 2.8-12mm Lens IP66 IK10 AI Deep Learning - Hikvision
-35% New

DS-2DE2A404IWG1-E - is a mini dome PTZ camera designed for advanced indoor and outdoor video surveillance, equipped with 4MP (2560×1440) resolution and Acusense technology with deep learning for people and vehicle classification , ensuring intelligent scene analysis It integrates a 2.8–12 mm varifocal lens with 4x optical zoom , offering a flexible field of view and precise details even over large areas. Thanks to DarkFighter technology and sensitivity up to 0.005 Lux , it ensures clear images even in low light conditions, supported by IR up to 20 m for reliable night vision. The IP66 and IK10 structure guarantees resistance to dust, water and vandalism, while the PTZ functions with rotation up to 355° and tilt 90° allow complete coverage. Complete with integrated microphone and speaker , H.265+ compression and smart functions such as intrusion and line crossing, it represents a professional solution for intelligent security and continuous monitoring. Hikvision

Technical Data Sheet

Reference: DS-2DE2A404IWG1-E

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2DE2A404IWG1-E – 4MP 2.8-12mm VARIFOCAL LENS PTZ CAMERA - ACUSENSE - DEEP LEARNING FUNCTION - DARKFIGHTER - BUILT-IN MICROPHONE AND SPEAKERS

Hikvision

The Hikvision DS-2DE2A404IWG1-E is a 4MP PTZ camera designed for professional indoor and outdoor video surveillance, with 2560×1440 resolution and Acusense technology with deep learning for intelligent recognition of people and vehicles. Equipped with a 2.8–12 mm varifocal lens with 4x optical zoom , it allows precise framing control and dynamic coverage thanks to PTZ movement up to 355°. Performance in critical conditions is guaranteed by DarkFighter technology and sensitivity up to 0.005 Lux , with IR illumination up to 20 m for effective night vision. The rugged IP66 and IK10 structure makes it ideal for outdoor environments, while the integrated microphone and speaker allow real-time audio communication. It supports H.265+ compression and advanced smart functions for a complete and intelligent security system.

Main features:

- 4MP resolution (2560×1440)

- 2.8–12 mm varifocal lens with 4x optical zoom

- Acusense technology with deep learning

- IR night vision up to 20m

- DarkFighter technology for low light

- AcuSense with people and vehicle recognition

- IP66 and IK10 vandal-proof protection

- PTZ 355° pan / 90° tilt

- Built-in microphone and speaker

- Advanced H.265+ compression


Further details

Varifocal optics :
The camera integrates a 2.8–12 mm lens that allows flexible adjustment of the viewing angle, allowing both wide shots and close-up details , ideal for adapting to different video surveillance scenarios.
Resolution:
Thanks to the 4MP resolution (2560×1440) it offers high definition images with a high level of detail, improving the identification of subjects and scenes in a professional context.
PTZ camera:
Equipped with PTZ functionality (Pan 355° / Tilt 90°), it allows dynamic control of the scene with fluid movements and programmable presets for complete coverage of the monitored area.
Acusense Technology:
It integrates advanced Acusense algorithms that reduce false alarms by intelligently distinguishing between people and vehicles, improving the effectiveness of the security system.
Deep Learning Function :
It uses deep learning technologies for advanced video analytics, enabling accurate event recognition and intelligent alarm management.
DarkFighter Technology :
It guarantees excellent performance in low light conditions thanks to DarkFighter technology , with high light sensitivity and clear images even at night.
Built-in Microphone & Speakers :
Includes built-in microphone and speaker for two-way audio communication and real-time sound recording, increasing the level of security.
Interfaces :
It features an RJ45 Ethernet interface , a microSD slot up to 512GB and audio inputs/outputs, ensuring wide compatibility and integration flexibility.
 Network Protocol:
It is a network IP camera compatible with advanced protocols (ONVIF, RTSP, HTTPS), ideal for centralized video surveillance systems and remote access.

Technical data sheet

DS-2DE2A404IWG1-E
Room
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 4x optical, 16x digital
Slow Shutter Yes
Lens
Focal Length 2.8 to 12 mm
Focal Length & FOV Horizontal field of view: 99.4° to 32.8°, vertical field of view: 51.7° to 18.4°, diagonal field of view: 119.9° to 37.5°
Focus Auto, semi-auto, manual
Iris Type Fixed
Openings F1.8
Zoom Speed Approx. 2 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 20 m
Smart Supplement Light Yes
IR Wavelength 850mm
PTZ
Movement Range (Pan) 0° to 355°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Park Action Preset, patrol scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task patrol scan,Preset,dome reboot,dome adjust
Power-off Memory Yes
Video
Main Stream 50Hz: 25fps (2560×1440, 1920×1080, 1280×960, 1280×720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60Hz: 30fps (704×480, 640×480, 352×240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed regions for main stream

Audio
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 64 Kbps (G.711),16 Kbps (G.722.1),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.726)
Audio Sampling Rate 8 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Web Browser

Chrome80+、Firefox80+、Safari13+、Edge89+

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Defog Digital Defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

24 programmable polygon privacy masks, mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone 1 built-in microphone, picking up sounds in the radius up to 5 meters
Built-in Speaker 1 built-in speaker, with effective distance reaching max. 10 meters
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Power Output 12 VDC, max. 60 mA
Event
Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection, region exiting detection, region entrance detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
General
Power

12VDC, Max. 9.2W; PoE (802.3af)

Dimension

Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00")

Weight

Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.)

Operating Condition

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)

General Function

Mirror, password protection

Approval
Protection

IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
