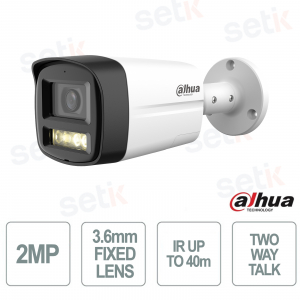

HAC-HFW1200TLM-IL-T - is a 2MP Full HD 1080p HDCVI bullet camera with 3.6mm fixed lens , designed to offer clear images and a wide viewing angle of up to 89°, ideal for monitoring large areas. Thanks to Smart Dual Light and Smart Light+ technology, it guarantees optimal visibility in both low light and total darkness up to 40 meters , while the advanced 3DNR function reduces noise, improving video quality. Equipped with two-way audio with integrated microphone and speaker , it allows direct communication via app. Multi-standard CVI/CVBS/AHD/TVI compatibility ensures maximum installation flexibility, while IP67 certification guarantees resistance to water and dust for outdoor use. Ideal solution for residential and professional applications that require reliability and high performance. Dahua
HAC-HFW1200TLM-IL-T | 2MP HDVCI Bullet Camera with 3.6mm Fixed Lens - Smart Dual Light

The Dahua HAC-HFW1200TLM-IL-T is a 2MP Full HD 1080p HDCVI bullet camera with 3.6mm fixed lens , designed to offer clear images and a wide viewing angle of up to 89°, ideal for monitoring outdoor and indoor environments. Thanks to Smart Dual Light and Smart Light+ technology , it guarantees optimal visibility even in the dark with illumination of up to 40 meters , while 3DNR noise reduction improves video quality in difficult conditions. It integrates two-way audio with microphone and speaker , allowing direct communication via app. Multi-standard CVI/AHD/TVI/CVBS compatibility ensures maximum flexibility, while IP67 protection makes it resistant to water and dust for reliable outdoor installations.
Main specifications:
- 2MP Full HD 1080p resolution for clear and detailed images
- 3.6mm fixed lens with wide viewing angle up to 89°
- Smart Dual Light + Smart Light+ for intelligent night vision up to 40 m
- Integrated two-way audio with microphone and speaker
- Advanced 3DNR noise reduction for cleaner images
- Multi-standard CVI/AHD/TVI/CVBS compatibility for maximum integration
- IP67 water and dust resistant for outdoor use
Further details

Technical data sheet
| MODEL | HAC-HFW1200TLM-IL-T |
| Room | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 3.6 mm |
| Max. Openings | F2.0 |
| Field of View | H: 89°; V: 48.2°; D: 109.1° |
| Close Focus Distance | 0.7 m (2.30 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps; TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | DWDR |
| White Balance | Auto; White balance area |
| Gain Control | Manual;Auto |
| Noise Reduction | 3D NR |
| Motion Detection | Yes |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Pick-up Distance | 8 m (26.25 ft) |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
| Audio | |
| Built-in MIC | Yes, up to 8 m (26.25 ft) |
| Audio Camera | CVI; TVI |
| Two-way Talk | Yes (CVI, TVI) |
| Speaker | Yes, up to 8 m (26.25 ft) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera) |
| Power Consumption | Max 9.37 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal front cover + plastic rear barrel + metal bracket |

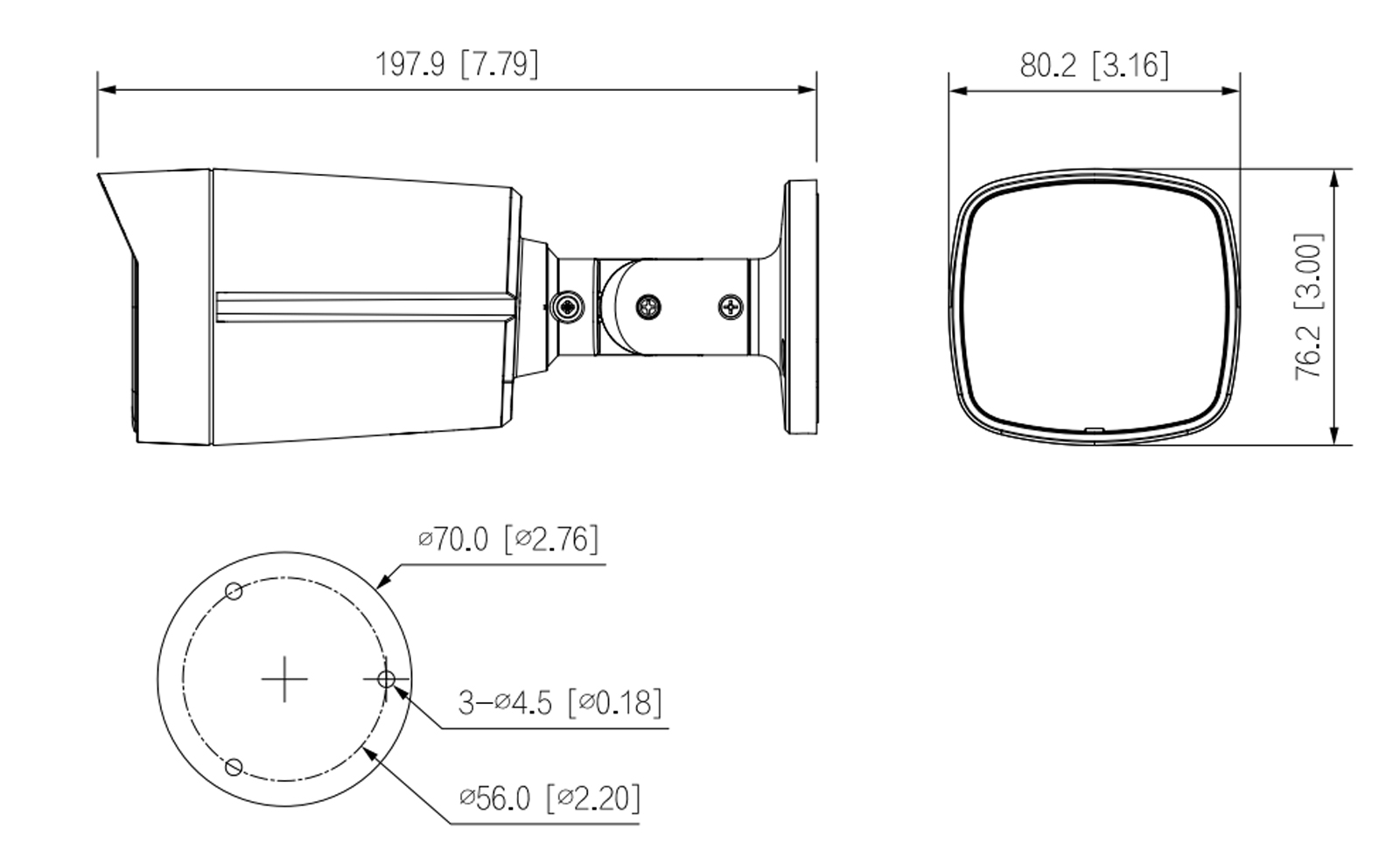

| Product Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00") (L × W × H) |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.49 kg (1.08 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
