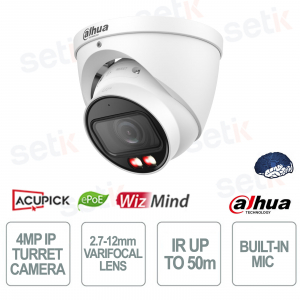

IPC-HDW5459T-ZE-IL - Camera with 2.7-12mm motorized lens is a 4MP eyeball camera designed to offer maximum flexibility thanks to the vari-focal zoom and the wide viewing angle adjustable up to 115°. The 1/1.8” 4MP CMOS sensor guarantees clear and detailed images up to 2688×1520, even in low light conditions. Thanks to Smart Dual Light technology , it combines IR up to 50 m and warm light up to 40 m for intelligent and color night vision. It integrates Xinghan AI and advanced functions such as AcuPick, Face Detection and Perimeter Protection , improving accuracy and reducing false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated microphone and alarm support. Robust structure with IP67 protection , ideal for professional installations. Dahua
IPC-HDW5459T-ZE-IL | 4MP IP Turret Camera with 2.7-12mm Varifocal Lens - Artificial Intelligence - POE

The Dahua IPC-HDW5459T-ZE-IL with 2.7-12mm motorized lens is a 4MP eyeball camera designed to offer maximum versatility thanks to the vari-focal zoom and the wide viewing angle adjustable up to 115°. The 1/1.8” 4MP CMOS sensor guarantees high definition images up to 2688×1520 even in low light conditions. Thanks to Smart Dual Light technology , it combines IR illumination up to 50 m and warm light up to 40 m for intelligent color night vision. It integrates Xinghan AI and advanced functions such as AcuPick, Face Detection and Perimeter Protection , ensuring precise video analysis and reduction of false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated microphone and alarm support. The resistant structure with IP67 protection makes it ideal for professional installations in outdoor environments.
Main specifications:
- 1/1.8” 4MP CMOS sensor with resolution up to 2688×1520 for sharp images
- 2.7-12mm motorized lens with vari-focal zoom and adjustable viewing angle
- Smart Dual Light technology with IR up to 50 m and warm light up to 40 m
- Advanced Artificial Intelligence: AcuPick, Face Detection, Perimeter Protection and People Counting
- Xinghan Large-Scale AI Models-Vision for Intelligent Analysis and Advanced Recognition
- Smart H.265+/AI H.265 compression for bandwidth and storage optimization
- Built-in microphone for ambient audio acquisition
- IP67 dust and water resistant for outdoor use
Further details
It integrates numerous intelligent alarm events such as intrusion, motion, video tampering and network anomalies, with advanced alert management for proactive protection.

Technical data sheet
| MODEL | IPC-HDW5459T-ZE-IL |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0007 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Openings | F1.8 |
| Field of View | H: 115°–47°; V: 62°–27°; D: 137°–54° |
| Iris Control | Car |
| Close Focus Distance | 0.13 m (0.43 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520@ (1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.5W (12VDC); 5W (PoE); Max. : 14.8W (12VDC); 17.5 W (PoE) (IR on + WDR + intelligence on + light active deterrence) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross Weight | 0.96 kg (2.12 lb) |
