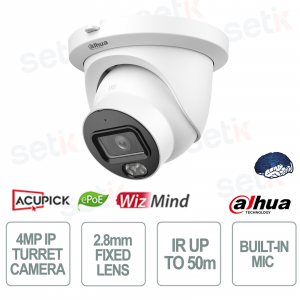

IPC-HDW5459TM-ASE-IL | 4MP IP Turret Camera with 2.8mm Fixed Lens - Artificial Intelligence - POE

Dahua

The Dahua IPC-HDW5459TM-ASE-IL with 2.8 mm lens is a 4MP eyeball camera designed to ensure high definition images thanks to the 1/2.7” 4MP CMOS sensor with resolution up to 2688×1520. The wide viewing angle of up to 112° ensures optimal coverage, while Smart Dual Light technology combines IR illumination and warm light up to 50 m for intelligent color night vision. Thanks to Xinghan AI technology and advanced functions such as AcuPick, Face Detection and Perimeter Protection , it offers precise video analytics and false alarm reduction. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated microphone and audio/alarm support. Robust structure with IP67 protection , ideal for professional installations in outdoor environments.

Main specifications:

- 1/2.7” 4MP CMOS sensor with resolution up to 2688×1520 for detailed images

- 2.8mm fixed optics with up to 112° viewing angle for wide coverage

- Smart Dual Light technology with IR and warm light up to 50m for intelligent night vision

- Advanced Artificial Intelligence: AcuPick, Face Detection, Perimeter Protection and People Counting

- Xinghan Large-Scale AI Models-Vision for Intelligent Analysis and Advanced Recognition

- Smart H.265+/AI H.265 compression for bandwidth and storage optimization

- Built-in microphone with audio support and alarm inputs/outputs

- IP67 dust and water resistant for outdoor use

Further details

Optics :
Equipped with a 2.8 mm fixed lens , it offers a wide field of view up to 108.4° horizontal , ensuring extended coverage and effective monitoring of indoor and outdoor environments without blind spots.
Resolution:
Thanks to the 4MP 1/2.7” CMOS sensor , it supports a resolution of up to 2688×1520 at 25/30 fps , ensuring sharp, detailed images suitable for professional security contexts.
Xinghan Large-Scale AI Models-Vision :
It integrates advanced large-scale AI models with NPUs and edge computing , optimizing image processing and improving recognition, scene analysis and intelligent data management.
Artificial Intelligence :
It supports advanced features such as AcuPick, Face Detection, Perimeter Protection and People Counting , enabling accurate video analysis, target classification and false alarm reduction .
Smart Dual Light:
Intelligent technology that combines IR illumination and warm light up to 50m , automatically activating white light to obtain color images during detected events and reduce light pollution.
Built-in microphone:
It features a built-in microphone with support for advanced audio codecs, enabling ambient audio recording for even more complete security.
Alarm :
It integrates alarm inputs/outputs and numerous intelligent events such as intrusion, motion, video tampering and network anomalies, ensuring proactive monitoring and advanced alert management .
Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF, HTTP and P2P protocols , it supports up to 4 simultaneous video streams and full integration into professional IP video surveillance systems.
Functions :
It includes advanced technologies such as 120 dB WDR, 3D NR, ROI, Smart Illumination and AI Coding , ensuring optimized images and high performance in any operating scenario.
Doors :
Equipped with 10/100 Mbps RJ-45 port , audio and alarm inputs/outputs , and MicroSD support up to 1 TB , offering maximum connection and storage flexibility.
IPC-HDW5559TM-ASE-IL dimensions

Technical data sheet

MODEL IPC-HDW5459TM-ASE-IL
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0007 lux@F1.6 (Color, 30 IRE)
0.0004 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–80°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 112°; V: 58°; D: 137°
Iris Control Fixed
Close Focus Distance 1.5 m (4.92 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1 fps–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1280 × 720@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR
Video Bit Rate H.264: 3 kbps–16384kbps;
H.265: 3 kbps–16384kbps;
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Cyber Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.1W (12VDC); 6.1W (PoE)
Max.(H.265 + WDR+ warm light + intelligence on): 13.2 W (12 VDC); 15.5W (PoE)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal
Product Dimensions 105.5 mm × Φ122.0 mm (4.15" × Φ4.80")
Net Weight 530 g (1.17 lb)
Gross Weight 710 g (1.57 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
