IPC-HFW3849T1-ZAS-PV-PRO - Camera with 2.7-12 mm motorized lens is an 8MP bullet camera designed to offer maximum flexibility and quality thanks to the 1/1.8” 8MP CMOS sensor with resolution up to 3840×2160. The motorized vari-focal zoom allows an adjustable field of view up to 112° , adapting to any surveillance scenario. WizColor technology guarantees color images even in low light conditions, while the Smart Dual Light offers IR illumination and warm light up to 60 m. It integrates Xinghan AI and advanced functions such as Perimeter Protection, SMD 4.0, Face Detection and AcuPick , ensuring intelligent analysis and reduction of false alarms. Equipped with a dual microphone, speaker and active alarm with siren and red/blue lights , it guarantees proactive security. Robust structure with IP67 protection , ideal for professional outdoor installations. Dahua

Technical data sheet

Reference: IPC-HFW3849T1-ZAS-PV-PRO

Brand: Dahua

EAN: 6937552412002

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

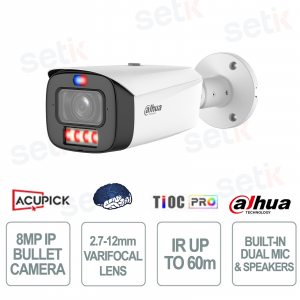

IPC-HFW3849T1-ZAS-PV-PRO | 8MP IP BULLET CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE

Dahua

The Dahua IPC-HFW3849T1-ZAS-PV-PRO with 2.7-12 mm motorized lens is an 8MP bullet camera designed to offer maximum versatility and quality thanks to the 1/1.8” 8MP CMOS sensor with resolution up to 3840×2160. The motorized vari-focal zoom allows an adjustable field of view up to 112° , adapting to any surveillance scenario. WizColor technology allows color images even in low light conditions, while the Smart Dual Light offers IR illumination and warm light up to 60 m. It integrates Xinghan AI and advanced functions such as SMD 4.0, Perimeter Protection, Face Detection and AcuPick , ensuring intelligent analysis and reduction of false alarms. Equipped with integrated microphones, speaker and active alarm with siren and red/blue lights , it ensures proactive security. Robust structure with IP67 protection , ideal for professional outdoor installations.

Main specifications:

- 8MP CMOS 1/1.8” sensor with resolution up to 3840×2160 for ultra-sharp images

- 2.7-12 mm motorized lens with vari-focal zoom and adjustable viewing angle up to 112°

- WizColor technology for high-quality color images even at night

- Smart Dual Light with IR and warm light up to 60m for intelligent night vision

- Advanced Artificial Intelligence: SMD 4.0, Perimeter Protection, Face Detection and AcuPick

- Xinghan Large-Scale AI Models-Vision for Intelligent Analytics and Advanced Performance

- Built-in microphones and speakers with two-way audio and active alarm with siren and lights

- IP67 dust and water resistant for outdoor use

Further details

Optics :
Equipped with a 2.7-12 mm vari-focal motorized lens , it allows for precise and adjustable zoom with a field of view from 112° to 48° , adapting perfectly to any professional video surveillance scenario.
Resolution:
It integrates a 1/1.8” 8MP CMOS sensor with a resolution of up to 3840×2160 at 25/30 fps , ensuring ultra-defined, detailed and high-performance images even in low light conditions.
Xinghan Large-Scale AI Models-Vision :
It uses advanced AI models with NPU and edge computing , optimizing multi-task analysis, intelligent recognition and efficient management of computing resources .
Artificial Intelligence :
It supports advanced features such as Perimeter Protection, SMD 4.0, Face Detection and AcuPick , offering accurate detection of people and vehicles and significant reduction in false alarms.
WizColor Technology:
Thanks to the combination of AI-ISP, high-sensitivity sensor and large aperture , it allows for color images even at night , exploiting ambient light to obtain realistic and sharp details.
Siren and Light Active Deterrence :
It integrates an active deterrent system with siren and red/blue lights , which can be activated automatically in the event of an event, improving safety thanks to immediate intervention and visual/acoustic deterrence .
TiOC Pro:
Advanced technology that combines AI, smart lighting and active deterrence , offering a complete solution for real-time monitoring, prevention and intervention .
Built-in Microphone & Speaker:
Equipped with dual built-in microphones and speakers , it supports two-way audio and real-time communication, ideal for active safety applications.
Alarm :
It features alarm inputs/outputs and numerous intelligent events such as intrusion, motion, tampering and network anomalies, ensuring advanced alert management and proactive protection .
Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF, HTTP, FTP and P2P protocols , supports up to 3 video streams and full integration into professional IP systems.
Doors :
Includes RJ-45 Gigabit port, audio and alarm inputs/outputs , as well as MicroSD support up to 512 GB , ensuring maximum connection and storage flexibility.
IPC-HFW3849T1-ZAS-PV-PRO dimensions

Technical data sheet

MODEL IPC-HFW3849T1-ZAS-PV-PRO
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0006 lux@F1.2(Color,30IRE)
0.0003 lux@F1.2(B/W,30IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft) (IR)
Up to 60 m (196.85 ft) (IR) (Warm light)
Illuminator On/Off Control Auto;Manual;Zoomprio
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ16
Focal Length 2.7 mm–12 mm
Max. Openings F1.2
Field of View H: 112°–48°
V: 58°–27°
D: 137°–55°
Iris Control Fixed
Close Focus Distance W: 1.75 m (5.74 ft)
T: 5.21 m (17.09 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3840 × 2160@(1 fps–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 8M (3840 × 2160); 6M (3200×1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate H.264: 3 kbps–16384kbps;
H.265: 3 kbps–16384kbps;
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Max power consumption: 2W; max sound level at 10 cm: 110 dB
* Test results from laboratory
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP;SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Cyber Security Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
Power
Power Supply 12 VDC/PoE+ (802.3at)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.1W (12VDC); 6.5W (PoE)
Max.(H.265 + WDR+ warm light + siren and light active deterrence + intelligence on): 14.5 W (12 VDC); 18.3W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal + Plastic
Product Dimensions 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight 1.00 kg (2.20 lb)
Gross Weight 1.30 kg (2.87 lb)
