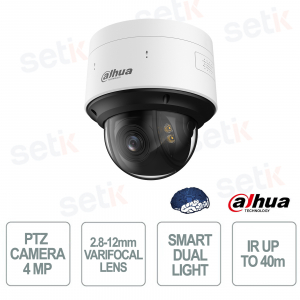

Dahua 4MP WizMind 2.8-12mm 4x Zoom Smart Dual Light IP67 IK10 AI PTZ Camera - Dahua

Dahua 4MP WizMind 2.8-12mm 4x Zoom Smart Dual Light IP67 IK10 AI PTZ Camera - Dahua
IN PROMOTION -56% New

SD5R404GA-HNF - is an advanced PTZ camera designed for professional applications, featuring 4MP resolution with a highly sensitive STARVIS™ sensor for detailed images even in low light conditions. The 2.8-12mm varifocal lens with 4x optical zoom allows for flexible and precise coverage, while Smart Dual Light technology guarantees intelligent night vision up to 40 meters with automatic switching between IR and white light. Thanks to the WizMind platform with Artificial Intelligence , it integrates advanced functions such as facial recognition, perimeter protection and video analytics with metadata. The PTZ system with PTRZ technology facilitates installation and remote adjustment, while the robust IP67 and IK10 structure ensures reliability even in harsh outdoor environments. Dahua

Technical data sheet

Reference: SD5R404GA-HNF

Brand: Dahua

EAN: 6939554938733

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


SD5R404GA-HNF | 4MP PTZ IP CAMERA WITH 2.8-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE

Dahua

The Dahua SD5R404GA-HNF is a professional-grade PTZ camera with 4MP resolution and a highly sensitive STARVIS™ sensor, designed to ensure clear images even in low-light conditions. The 2.8-12mm varifocal lens with 4x optical zoom allows for dynamic and precise coverage, ideal for monitoring large areas in great detail. Thanks to Smart Dual Light technology, it offers intelligent night vision up to 40 meters with automatic switching between IR and white light. It integrates the WizMind platform with Artificial Intelligence , with advanced functions such as facial recognition, perimeter protection and video analysis with metadata. The PTZ system with PTRZ technology simplifies installation and management, while the IP67 and IK10 structure guarantees resistance and reliability in outdoor environments.

Main specifications:

- 4MP STARVIS™ resolution: high definition images with high sensitivity even in low light conditions

- 2.8-12mm varifocal lens: Flexible coverage with 4x optical zoom to adapt to different surveillance scenarios

- Smart Dual Light: Intelligent lighting up to 40m with automatic switching between IR and white light

- WizMind Artificial Intelligence: Advanced features such as facial recognition, perimeter protection and video analysis

- PTRZ (Advanced PTZ) technology: Remote pan, tilt and zoom adjustment for easy and precise control

- Video Metadata & AcuPick: Intelligent search and detailed analysis of people and vehicles

- IP67 and IK10 protection: resistance to dust, water and vandalism for outdoor installations

- Two-way audio: Built-in microphones and speakers for real-time communication

Further details

Optics :
2.8-12mm Varifocal Lens : High-performance lens with 4x optical zoom that allows for flexible and adjustable coverage , switching from wide-angle view to finer details, ideal for monitoring both large areas and specific points.
Resolution:
4MP Resolution : 4 megapixel STARVIS™ CMOS sensor that guarantees high definition images (up to 2688×1520) with high light sensitivity, ensuring excellent video quality even in low light environments.
Smart Dual Light :
intelligent technology that combines IR illumination and white light up to 40m , automatically activating full color when a target is detected to obtain greater detail of night events .
Video Metadata :
advanced analysis system that extracts detailed data on people, faces and vehicles (such as color, type, accessories), allowing for quick searches and intelligent video management .
PTRZ:
Innovative technology that allows remote adjustment of pan, tilt, rotation and zoom , simplifying installation and maintenance without direct manual intervention.
Parking Space Management :
Intelligent function that allows vehicle counting and parking management , monitoring available spaces in real time and improving space efficiency.
ANPR (Automatic Number Plate Recognition):
Advanced system for automatic license plate recognition , capable of identifying vehicles, color and type even when moving up to 60 km/h.
PTZ Camera:
Motorized camera with full pan, tilt and zoom movements , designed to ensure dynamic monitoring and total area coverage .
Active Deterrence :
Active security system with customizable light and sound alarms , which allows you to deter intrusions in real time by increasing the level of protection.
Network Camera:
Professional IP camera with support for advanced protocols (ONVIF, RTSP, HTTP, HTTPS) for perfect integration into video surveillance and remote management systems.
Doors :
Equipped with RJ-45 port, audio and alarm inputs/outputs, RS-485 and PoE support , it offers complete and versatile connectivity for professional installations.

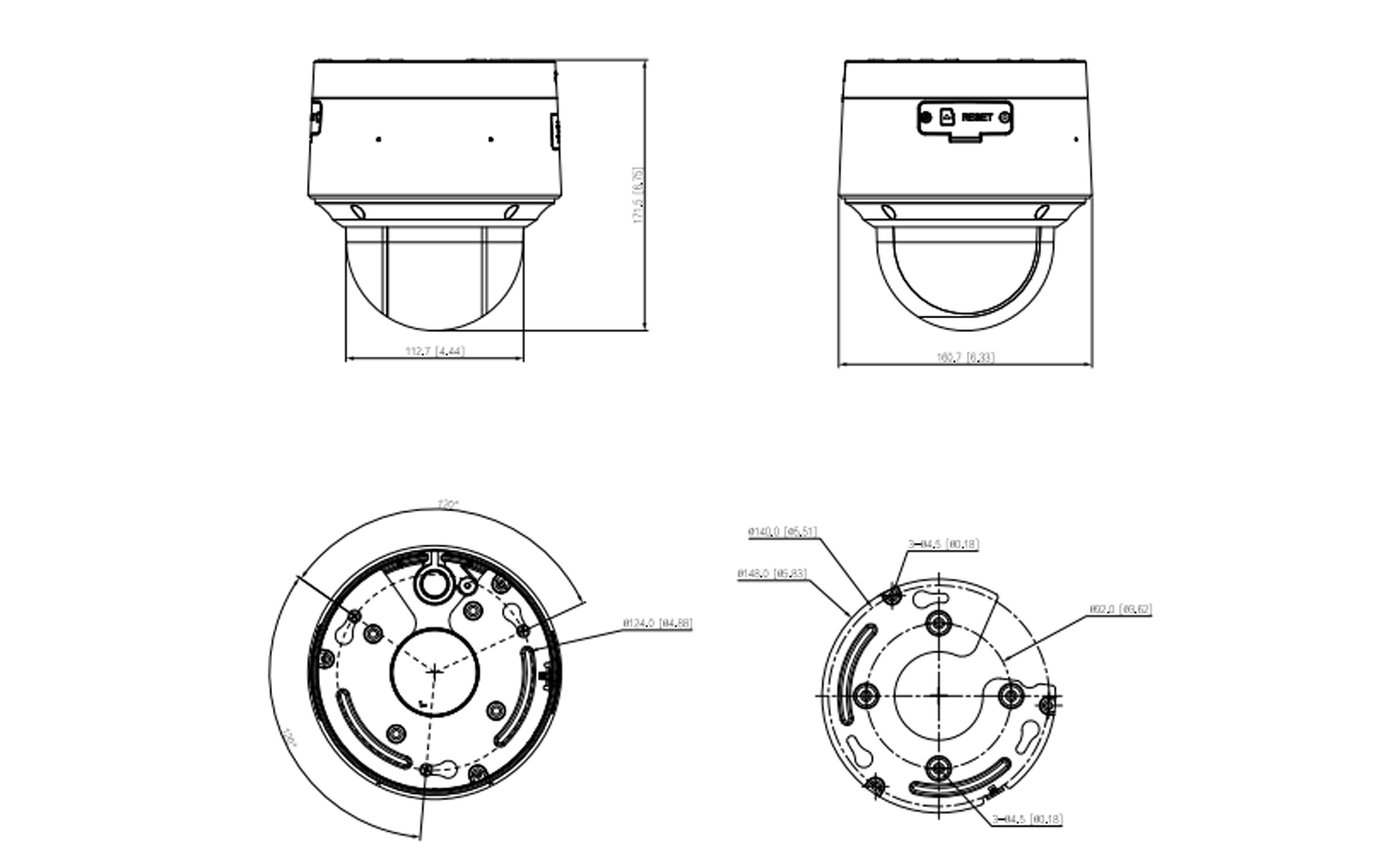

SD5R404GA-HNF dimensions

Technical data sheet

MODEL SD5R404GA-HNF
Room
Image Sensor 1/1.8" CMOS
Pixel 4 MP
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed 1 s–1/30,000 s
Min. Illumination Color: 0.001 lux@F1.0;
B/W: 0.0001 lux@F1.0;
0 lux (Illuminator on)
Illumination Distance 40 m (131.2 ft) (IR); 40 m (131.2 ft) (warm light)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 4 (Dual-core light)
Lens
Focal Length 2.8 mm–12 mm
Max. Openings F1.0-F1.2
Field of View

H: 114.9°–50.3°; V: 61.1°–28.4°; D: 129.3°–56.2°

Optical Zoom

4x

Focus Control

Auto; semi-auto; manual

Iris Control Car
Close Focus Distance 1 m–2.5 m (3.28 ft–8.20 ft)
PTZ
Pan/Tilt Range Pan: 0° to 355°;Tilt: 0° to 90°;Rotate: 0° to 355°
Power-off Memory Yes
Intelligence
Video Metadata Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles and 8 for non-motor vehicles. It also extracts attributes from human faces and bodies, detecting up to 6 attributes for faces, and 8 for bodies;Privacy Protection.
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification;Privacy Protection.
Face Recognition Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; supports extraction attributes. 6 attributes and 8 expressions; supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces;Privacy Protection.
People Counting Uses advanced image processing technology to extract depth information from images. he extracted information is then processed by advanced, deep learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy;Privacy Protection.
Parking Space Management Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles.
ANPR ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets
Active Deterrence
Intelligence Type WizMind
Light Warning Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarms and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10. (Requires external speaker for use)
Video
Video Compression H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); Smart H.265+; Smart H.264+
Streaming Capability 5 stream
Video Frame Rate Main stream: 4M (2688 × 1520)@(1–25/30 fps); 4M(2560 × 1440)/3M/1080p/1.3M/720p@(1–50/60 fps)
sub stream: D1/VGA/CIF@(1–25/30 fps)
Third stream: 1080p/1.3M/720p@(1–25/30 fps)
Fourth Stream: D1/VGA/CIF@(1–25/30 fps)
Fifth Stream: D1/VGA/CIF@(1–25/30 fps)
Bit Rate Control VBR; CBR
Video Bit Rate H.264: 96 Kbps–14,848 Kbps
H.265: 38 Kbps–8,960 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual; Gain priority
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization EIS
Defog Electronic
Digital Zoom 16x
Image Rotation 180°
Privacy Masking Up to 8 areas can be set
S/N Ratio ≥55 dB
Audio
Built-in MIC Yes
Built-in Speaker Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network RJ-45 (10/100 Base-T)
Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS
Interoperability ONVIF(Profile S & Profile G & Profile T);CGI;SDK
Streaming Method Unicast/Multicast
User/Host 20 (Total bandwidth: 64 M)
Storage Micro SD card (512GB); FTP/SFTP; NAS
Browser web5.0:
IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions
Management Software DMSS; DSS Pro
Mobile Client Android; iOS
Certification
Certifications CE: EN 50130-4 EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 62368-1
Port
Analog Output 1 channel (CVBS output, BNC)
RS-485 1 (Bit range: 1,200 bps–9,600 bps)
Audio Input 1 channel
Audio Output 1 channel
Alarm I/O 2/1
Audio I/O 1/1
Alarm Input 2 channels
Alarm Output 1 channel
Alarm Linkage Capture; recording; send email; alarm digital input
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Cable Length 530 mm (20.87")
Power
Power Supply 12 VDC, 4 A ± 10%
24 VAC, 3 A ± 25%
PoE (802.3at)
Power Output 12 VDC, 0.1 A
Power Consumption Basic: 7W (DC); Max.: 16W (Illuminator + PTZ) (DC)
Basic: 7W (AC); Max.: 16W (Illuminator + PTZ) (DC)
PoE:
Basic: 7 W
Max: 16 W (illuminator + PTZ)
Power Adapter Optional
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Protection IP67;IK10;TVS 6000V lightning proof; surge protection
Structure
Casing Material ADC12; PC
Product Dimensions 171.5 mm × Φ160.7 mm (6.75" × Φ6.33")
Net Weight 2.4 kg (5.29 lb)
Gross Weight 3.0 kg (6.61 lb)
