IPC-HDW5859H-ZE-PV-PRO - The WizMind 8MP WizColor Eyeball camera with 2.7-12 mm motorized varifocal lens offers a professional solution for advanced video surveillance, thanks to the 1/1.8” 4K (3840×2160) CMOS sensor that guarantees clear images even in low light conditions. The wide focal range allows flexible adjustment of the viewing angle (112°–48°) , adapting to any scenario. It integrates WizColor technology with AI-ISP for color images even at night and AI Xinghan with deep learning for advanced functions such as AcuPick, face detection and perimeter protection. The Smart Dual Light system with IR up to 60 m and warm light up to 50 m ensures effective night vision, supported by WDR 130 dB and 3D NR . The device is completed by the presence of a built-in microphone and speaker with two-way audio and active alarms and protection IP67 and IK10 for outdoor environments. Dahua

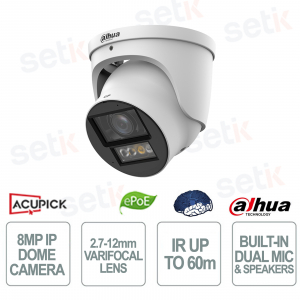

IPC-HDW5859H-ZE-PV-PRO | 8MP IP DOME CAMERA WITH 2.7-12mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE - CORROSION-RESISTANT

The Dahua IPC-HDW5859H-ZE-PV-PRO WizMind 8MP WizColor Eyeball camera with 2.7-12 mm motorized varifocal lens offers high performance for professional video surveillance, thanks to the 1/1.8” 4K (3840×2160) CMOS sensor that ensures clear images even in low light conditions. The wide adjustable viewing angle (112°–48°) allows for flexible coverage, while WizColor technology with AI-ISP guarantees color images even at night. It integrates Xinghan artificial intelligence with deep learning for advanced functions such as AcuPick, video metadata, face detection and perimeter protection. The Smart Dual Light system with IR up to 60 m and warm light up to 50 m , supported by WDR 130 dB and 3D NR , ensures optimal visual quality in any scenario. The device is completed by the presence of a built-in microphone and speaker with two-way audio and active alarms . IP67 and IK10 protection for outdoor environments.
Main specifications:
- 8MP 4K resolution with 1/1.8” CMOS sensor for ultra-high definition images
- 2.7-12 mm motorized varifocal lens with 112°–48° adjustable viewing angle
- WizColor technology with AI-ISP for color images even at night
- Xinghan Artificial Intelligence with AcuPick, Face Detection and Perimeter Protection
- Smart Dual Light (IR 60m + warm light 50m) for advanced night vision
- Built-in dual microphone and speaker with two-way audio
- Active sound and light alarm for immediate safety
- IP67 and IK10 protection resistant to weather and vandalism
Further details
The Xinghan AI platform integrates advanced deep learning models and high-performance NPUs , enabling multi-task analysis, accurate recognition and intelligent scene adaptation .
WizColor technology with AI-ISP enables color shooting even at night , taking advantage of minimal light sources such as urban or moonlight to obtain vivid, detailed images without any loss of quality .
Thanks to the self-learning system based on deep learning , the camera is able to analyse behaviours and filter out false alarms , progressively improving precision and operational efficiency.
It supports intelligent sound and light alarms , with advanced events such as intrusion, line crossing and motion detection, ensuring immediate and preventive protection .

Technical data sheet
| MODEL | IPC-HDW5859H-ZE-PV-PRO |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0006 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Openings | F1.2 |
| Field of View | H: 114°–48°; V: 59°–27°; D: 143°–56° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.2 m (0.67 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 130 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.1W (12VDC); 4.8W (PoE) Max. 21.6W (12VDC); 24.2 W (PoE) (IR on + WDR +intelligence on + siren and light active deterrence) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 1.15 kg (2.54 lb) |
