IPC-HDW5559T-ZE-IL - The WizMind 5MP camera with 2.7-13.5mm vari-focal lens is designed to offer advanced video surveillance with high-definition images thanks to the 5MP CMOS sensor and excellent performance even in low light conditions. Equipped with Smart Dual Light technology with IR up to 50 meters and warm light up to 40 meters, it guarantees intelligent color night vision. The integration of Xinghan AI and deep learning models enables advanced functions such as intelligent detection, facial recognition and perimeter protection , reducing false alarms thanks to automatic self-learning . AI H.265/H.264 compression optimizes bandwidth and storage, while the integrated microphone and MicroSD slot up to 1TB expand the functionality. Built for outdoor environments, it has IP67 protection and PoE power supply for a reliable and professional installation. Dahua

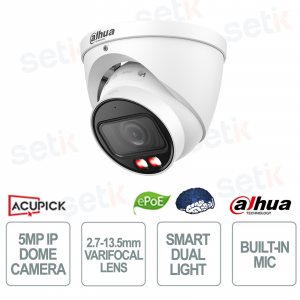

IPC-HDW5559T-ZE-IL | 5MP IP DOME CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - POE - SMART DUAL LIGHT

The Dahua IPC-HDW5559T-ZE-IL WizMind 5MP camera with 2.7-13.5mm vari-focal lens is a professional solution for intelligent video surveillance, equipped with a 5MP CMOS sensor that guarantees clear and detailed images even in low light conditions. Thanks to Smart Dual Light technology with IR up to 50 meters and warm light up to 40 meters, it ensures advanced night vision even in color. The integration of AI Xinghan and deep learning models enables advanced functions such as intelligent detection, facial recognition and perimeter protection , improving accuracy thanks to automatic self-learning . It supports AI H.265/H.264 compression , built-in microphone and MicroSD storage up to 1TB , offering maximum efficiency and versatility. The robust structure with IP67 protection and PoE power supply makes it ideal for reliable outdoor installations.
Main specifications:
- 5MP resolution for high definition images
- Motorized 2.7-13.5mm vari-focal lens for maximum flexibility
- Smart Dual Light with IR 50m and warm light 40m
- Xinghan Artificial Intelligence with advanced deep learning
- Smart features: facial recognition, AcuPick, people counting and perimeter protection
- AI H.265/H.264 compression for bandwidth and storage optimization
- Built-in microphone and MicroSD support up to 1TB
- IP67 protection ideal for outdoor installations
Further details
It integrates advanced deep learning algorithms and NPU power , improving detection, recognition and scene adaptation , while optimizing performance and power consumption.
Based on continuous machine learning , it allows the camera to analyse behaviour and reduce false alarms , progressively increasing the reliability of the security system.
With IR illumination up to 50m and warm light up to 40m , it automatically activates white light when a target is detected, ensuring color video even at night and greater effectiveness in evidence collection.
Intelligent alarm system with intrusion, motion, tampering and network anomaly detection, capable of generating timely notifications and increasing the system's security level.

Technical data sheet
| IPC-HDW5559T-ZE-IL | |
| Room | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2960 (H) × 1668 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0009 [email protected] (Color, 30 IRE) 0.0005 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm-13.5 mm |
| Max. Openings | F1.6 |
| Field of View | H: 110°–32°; V: 57°–18°; D: 134°–37° |
| Iris Control | Car |
| Iris Control Type | DC-Iris |
| Close Focus Distance | 0.3 m (0.98 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Quick Pick | 0 |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 2960 × 1668@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.5W (12VDC); 5W (PoE); Max.: 14.8W (12VDC); 17.5 W (PoE) (IR on + WDR + intelligence on + light active deterrence) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross Weight | 0.96 kg (2.12 lb) |
