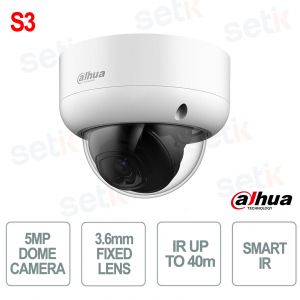

HAC-HDBW1501EA-A-S3 5MP Dome 3.6mm IR 40m Audio IP67 IK10 Video Surveillance Camera - Dahua

HAC-HDBW1501EA-A-S3 5MP Dome 3.6mm IR 40m Audio IP67 IK10 Video Surveillance Camera - Dahua
-56%

HAC-HDBW1500EA-A-S3 - is a camera with 3.6mm lens is a high-performance HDCVI dome camera designed to ensure professional video surveillance thanks to the 5MP resolution (2880×1620) and the advanced CMOS sensor, offering extremely sharp and detailed images. Equipped with Smart IR with a range of up to 40 meters and 3DNR technology, it ensures uniform night vision and noise reduction even in low-light environments. It integrates a built-in microphone for audio transmission over coaxial cable and Super Adapt function for automatic image optimization. The robust structure with IP67 and IK10 protection guarantees resistance to dust, water and vandalism, making it ideal for outdoor installations and critical environments. Dahua

Technical data sheet

Reference: HAC-HDBW1500EA-A-S3

Brand: Dahua

EAN: 6937552413252

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HAC-HDBW1501EA-A-S3 | 5MP HDCVI DOME CAMERA FIXED LENS 3.6mm - SMART IR ILLUMINATION

Dahua

The Dahua HAC-HDBW1501EA-A-S3 with 3.6mm lens is an HDCVI dome camera designed to offer high-performance video surveillance thanks to its 5MP (2880×1620) resolution and advanced CMOS sensor, ensuring extremely sharp and detailed images. Equipped with Smart IR with a range of up to 40 meters and 3DNR technology, it ensures uniform night vision and noise reduction even in low light conditions. It integrates a built-in microphone for audio acquisition over coaxial cable and a Super Adapt function for automatic image optimization. The robust structure with IP67 and IK10 protection makes it resistant to dust, water and vandalism, ideal for outdoor installations and critical environments.

Main specifications:

- 5MP resolution for extremely detailed images

- 3.6mm fixed lens with wide viewing angle

- Smart IR up to 40m for advanced night vision

- 3DNR technology for video noise reduction

- Built-in microphone for audio recording

- Super Adapt for automatic performance adjustment

- IP67 and IK10 protection resistant to water, dust and shock

- CVI/CVBS/AHD/TVI compatibility for maximum integration

- HDCVI transmission over coaxial cable with long distance

- Sturdy and reliable metal structure

Further details

✅ Optics :
The 3.6mm fixed lens offers a wide field of view up to 86.8° horizontal , ensuring effective coverage of environments with a good balance between detail and depth, ideal for indoor and outdoor installations.
✅ Resolution:
The 5MP CMOS sensor (2880×1620) ensures extremely sharp and detailed images , allowing precise identification of people and objects even over long distances.
✅ Smart IR Illumination:
Smart IR technology with a range of up to 40 meters automatically adjusts the intensity of the IR LEDs, ensuring uniform night vision without overexposure and improving image quality in dark conditions.
✅ Built-in Microphone:
Equipped with a built-in microphone with audio transmission over coaxial cable , it allows audio recording synchronized with video , increasing the level of security and evidence collection.
✅ Doors :
It features multi-format BNC video output (CVI/TVI/AHD/CVBS) and 12V DC power supply, offering maximum compatibility with existing systems and simple and versatile installation.
HAC-HDBW1801EA-A-S3 dimensions

Technical data sheet

MODEL HAC-HDBW1501EA-A-S3
Room
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.01 [email protected] (Color, 30 IRE)
0.001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 65 dB
Illumination Distance IR: 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6 mm
Max. Openings F2.0
Field of View

H: 90.1°; V: 47.8°; D: 109.3°

Iris Control Fixed
Close Focus Distance 1.3 m (4.27 ft)
Video
Video Frame Rate CVI:
PAL: 5M@25fps; [email protected]; 4M@25fps; 1080p@25fps
NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR
WDR DWDR
White Balance Auto; White balance area
Gain Control Auto/Manual
Noise Reduction 3D NR
Illumination Mode Smart IR&WL(CVI,TVI); WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: EN 55032; EN 55035;
Audio
Built-in Mic Yes
Audio Camera CVI; TVI
Pick-up Distance 8 m (26.25 ft)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply 12 VDC (±30%)
Power Consumption Max 3.5 W (12 VDC, IR on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material Metal
Product Dimensions Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51")
Net Weight 0.44 kg (0.97 lb)
Gross Weight 0.62 kg (1.37 lb)
Installation Wall mount; ceiling mount; vertical pole mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
