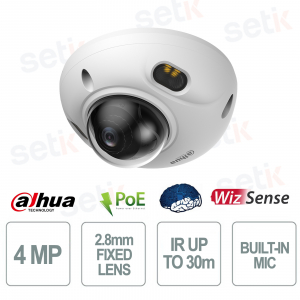

Dahua WizSense 4MP IP67 IK10 Smart Dual Light 2.8mm Dome Camera with AI and People and Vehicle Detection

Dahua WizSense 4MP IP67 IK10 Smart Dual Light 2.8mm Dome Camera with AI and People and Vehicle Detection
-58%

IPC-HDBW3449F-AS-IL - The dome camera with 2.8 mm fixed lens offers high definition images thanks to the 4 MP CMOS sensor and resolution up to 2688×1520 at 30 fps , ensuring detailed surveillance in any context. Equipped with Smart Dual Light technology with IR illumination and warm light up to 30 meters , it ensures clear footage both day and night. The advanced WizSense , Perimeter Protection , AcuPick and SMD 4.0 functions allow accurate recognition of people and vehicles, while the integrated microphone , PoE support, IP67 and IK10 protection make it ideal for professional installations in indoor and outdoor environments. Dahua

Technical Data Sheet

Reference: IPC-HDBW3449F-AS-IL

Brand: Dahua

EAN: 6937552429475

Disponibilità: 6

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


IPC-HDBW3449F-AS-IL | 2.8mm OUTDOOR POE IP DOME CAMERA - 4 MEGAPIXEL - ARTIFICIAL INTELLIGENCE - SMART DUAL LIGHT


Dahua

The Dahua IPC-HDBW3449F-AS-IL dome camera with 2.8 mm fixed lens is the ideal solution for professional video surveillance thanks to its 4 MP CMOS sensor , 2688×1520 resolution and WizSense AI technology for accurate detection of people and vehicles. The Smart Dual Light system with IR and warm light illumination up to 30 meters ensures clear, color images even in low light conditions, while the Perimeter Protection , AcuPick , SMD 4.0 , WDR 120 dB and integrated microphone functions offer advanced control and intelligent event management. IP67 and IK10 protection ensure maximum reliability even in the most difficult environments.

Main specifications:

- 4 MP resolution: 1/2.9" CMOS sensor with detailed images up to 2688×1520 at 30 fps.

- 2.8 mm optics: wide viewing angle up to 100.7° horizontal for extended coverage of the monitored area

- Smart Dual Light: Intelligent illumination with IR and warm light up to 30 m for always clear and colorful shots

- WizSense Artificial Intelligence: Perimeter Protection support, SMD 4.0, Face Detection and precise classification of people and vehicles

- Built-in Microphone: Ambient audio acquisition for more comprehensive surveillance

- H.265+ compression: reducing bandwidth and storage space while maintaining high video quality

- Advanced Storage: MicroSD support up to 512GB, NAS and FTP/SFTP

- Professional protection: IP67 certifications against dust and water and IK10 against vandalism

- PoE Powered: Simplified installation via 802.3af PoE or 12 VDC power supply

- Advanced Image Quality: 120 dB WDR, 3D NR, BLC and HLC technologies for optimized images in every scenario

Further details

Optics :
The 2.8mm fixed lens offers a wide 100.7° horizontal viewing angle , ideal for monitoring entrances, parking lots, commercial areas and residential environments with extended and detailed coverage, reducing blind spots and improving the effectiveness of video surveillance.
Resolution:
Thanks to the powerful 4 Megapixel CMOS sensor and maximum resolution of 2688 × 1520 pixels , the camera captures high-definition images with a high level of detail, allowing clear identification of people, vehicles and objects even in complex scenarios.
Smart Dual Light :
Smart Dual Light technology intelligently combines infrared illumination and white light up to 30 meters away. When presence is detected, the camera automatically activates warm light to record color images, switching back to IR mode when the area is clear, reducing light pollution and optimizing nighttime recording quality.
Xinghan Large-Scale AI Models-Vision:
The advanced Xinghan AI Models-Vision system leverages advanced AI algorithms and a powerful NPU architecture to process multiple tasks simultaneously, improving video analytics accuracy, operational efficiency, and intelligent data management directly on the camera.

Artificial Intelligence (AI):
Integrated AI features include Perimeter Protection , SMD 4.0 , Face Detection , AcuPick , and intelligent person and vehicle classification. These technologies dramatically reduce false alarms and enable quick and accurate searches of recorded events, increasing the security level of the facility.
Built-in Microphone:
The built-in microphone allows for audio recording synchronized with video, offering more complete control of the monitored environment and providing additional useful information when reviewing recordings or verifying events.
Network Camera:
Designed as a true professional IP camera , it supports advanced network protocols, remote access via browser and dedicated applications for iOS and Android , allowing real-time management and monitoring from anywhere via Internet connection.
PoE (Power over Ethernet):
802.3af PoE support allows the camera to be powered and transmitted data using a single Ethernet network cable, simplifying installation, reducing cabling costs, and increasing infrastructure reliability.
Ports and Interfaces:
The camera features 1 alarm input , 1 alarm output , 1 RCA audio input , 1 RCA audio output and 10/100 Mbps RJ-45 network port, providing broad flexibility for integration with security systems, external sensors, audio devices and professional management platforms.

Technical data sheet

Model IPC-HDBW3449F-AS-IL
Room
Image Sensor 1/2.9" CMOS
Effective Pixel 2688 (H) × 1520 (V)
ROM/RAM 256 MB/ 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.005 [email protected] (Color, 30 IRE)
0.0005 [email protected] (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR);
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (Multi-core (IR + warm) light)

Pan/Tilt/Rotation Range Pan: –30° to 30°
Tilt: 0° to 80°
Rotation: 0° to 360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 100.7°; V: 56.3°; D: 117.4°
Iris Type Fixed
Close Focus Distance 1.0 m (3.28 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), loitering detection, and stay detection
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Ai Coding AI H.265; AI H.264
*includes SmartCodec Technology,Smart H.264+ /H.265+
Video Frame Rate

Main stream: 2688 × 1520@(1 fps–25/30 fps)
Sub stream: 1920 × 1080@(1 fps–25/30 fps)
Third stream:1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control

VBR; CBR; ABR

Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self Adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512G); NAS
Browser IE: IE11 Chrome Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Phone iOS; Android
Cyber Security Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 1 channel out: wet contact, max load 300 mA 12 VDC
Power
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption

Basic: 3.3W (12VDC); 8.3W (PoE);
Max.: 4.2W (12VDC); 9.2 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67; IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Metal
Dimensions 64.8 mm × Φ111.0 mm (2.55" × Φ4.37")
Net Weight 423 g (0.93 lb)
Gross Weight 590 g (1.30 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
