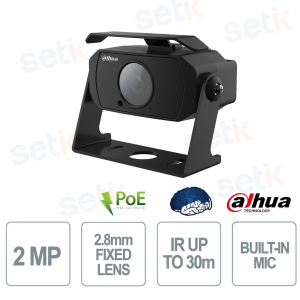

Dahua IPC-HMW3230-M12 2MP Full HD 2.8mm IP67 PoE Smart IR 30m Camera with Built-in Microphone

Dahua IPC-HMW3230-M12 2MP Full HD 2.8mm IP67 PoE Smart IR 30m Camera with Built-in Microphone
-56%

IPC-HMW3230-M12 - The vehicle camera with M12 mount and 2.8 mm fixed lens is a compact network camera designed for mobile and professional applications, capable of acquiring Full HD 2 Megapixel images (1920x1080) up to 30 fps. Thanks to Smart IR technology with a range of up to 30 meters , the 1/2.7" CMOS sensor , H.265+ and H.264+ compression and the DWDR function, it guarantees clear videos even in difficult lighting conditions. It also integrates built-in microphone , video analytics functions such as Tripwire and Intrusion Detection , PoE/12V DC power supply and IP67 protection, ideal for outdoor installations and vehicles. Dahua

Technical Data Sheet

Reference: IPC-HMW3230-M12

Brand: Dahua

EAN: 6923169766959

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


IPC-HMW3230-M12 | 2.8mm IP POE VEHICLE CAMERA WITH M12 MOUNT - 2 MEGAPIXEL - ARTIFICIAL INTELLIGENCE - SMART IR


Dahua

The Dahua IPC-HMW3230-M12 vehicle camera with M12 mount and 2.8 mm lens is a professional IP camera designed for mobile applications and advanced video surveillance, equipped with a 2 Megapixel Full HD 1080p CMOS sensor and H.265+/H.264+ compression for smooth images and bandwidth optimization. Thanks to Smart IR technology with a range of up to 30 meters , the DWDR system and 3DNR noise reduction, it guarantees clear footage even in low light or strong light contrast conditions. It integrates built-in microphone , intelligent intrusion and line crossing detection functions, PoE/12V DC power supply and IP67 protection, ensuring reliability and resistance in outdoor environments and vehicle applications.

Main specifications:

- Full HD 2MP (1920x1080) resolution for detailed images and high-definition videos

- 2.8 mm fixed optics with wide viewing angle up to 115° horizontally

- Smart IR technology up to 30m for uniform and precise night vision

- H.265+ and H.264+ compression to reduce bandwidth consumption and storage space

- Intelligent IVS functions with intrusion and line crossing detection

- Built-in microphone for audio capture synchronized with video streams

- IP67 protection against dust, rain and harsh environmental conditions

- PoE and 12V DC power supply for versatile and simplified installation

- ONVIF compatibility for seamless integration with professional video surveillance systems

- Support recording to microSD up to 128GB and NAS network storage

Further details

✅ Optics :
The 2.8mm M12 fixed lens offers a wide viewing angle of up to 115° , ideal for monitoring large areas, vehicles, entrances and environments where it is necessary to cover a large portion of the scene with a single camera.
✅ Resolution:
The 2 Megapixel progressive CMOS sensor captures 1920x1080 Full HD video at up to 30 fps, ensuring sharp images, fine details and professional video quality for security and video surveillance applications.
✅ Intelligent Code H.265+ and H.264+:
Dahua intelligent encoding technology automatically optimizes the bitrate based on the scene, significantly reducing bandwidth consumption , storage space and management costs without compromising the quality of recorded images.
✅ Smart IR:
The Smart IR system dynamically adjusts the intensity of the infrared LEDs to avoid overexposure of nearby objects, ensuring uniform, detailed and reliable night vision up to a distance of 30 meters .

✅ Artificial Intelligence (AI):
It integrates advanced video analytics functions such as Tripwire (line crossing) and Intrusion Detection , allowing you to identify suspicious events in real time and improve the effectiveness of the security system by reducing false alarms.
✅ Alarm:
It supports numerous intelligent events including motion detection , video tampering , scene change , unauthorized access , network issues and storage anomalies, providing constant monitoring of the system status.
✅ Built-in Microphone:
The built-in microphone enables recording of ambient audio synchronized with video, enhancing information gathering and providing an additional level of verification of recorded events.
✅ Network Camera:
Compatible with ONVIF Profile S&G standards, it supports advanced network protocols and Unicast/Multicast streaming, ensuring perfect integration with NVR, VMS and professional video surveillance platforms.
✅ PoE (Power over Ethernet):
With IEEE 802.3af Power over Ethernet (PoE) support, the camera transmits data and power through a single network cable, simplifying installation and reducing wiring time and costs.
✅ Ports and connectivity:
Equipped with a 10/100 Base-T RJ45 port and a 4-pin M12 aircraft-grade connector , it offers a stable and reliable connection even in mobile applications and environments subject to vibrations or harsh operating conditions.

Technical data sheet

Model IPC-HMW3230-M12
Room
Image Sensor 1/2.7 inch CMOS
Effective Pixel 1920 (H) x 1080 (V)
Scanning System Progressive
Illuminator Number 1 (IR)
Electronic Shutter Speed 1/3 s–1/100000 s (manual/auto)
S/N Ratio

﹥65 dB

Min. Illumination

0.01 Lux @ F2.0 (Color)
0.001 Lux @ F2.0 (B/W)
0 Lux @ F2.0 (IR on)

Illumination Distance

30 m

Noise Reduction 3D NR
WDR Digital WDR
Gain Control Auto/Manual
White Balance

Auto/Manual

BLC Yes
HLC Yes
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F2.0
Aperture Control Fixed
Iris Type Fixed iris
Field of View H: 115°, V:60°, D:130°
Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS Tripwire, Intrusion
Alarm
Alarm Event Motion Detection, Disk Error, Illegal Access, IVS, Voltage Detection, Disk Full, Video Tamper, Audio Detection, Scene Changing
Video
Video Compression

H264;H264B;H264H;H265;MJPEG

Bit Rate

H.264H: 32K - 8192Kbps
H.265: 12K - 5632Kbps
MJPEG: not supported

Frame Rate 50Hz:
Main Stream (1920×1080@25fps), Sub Stream (704×576@25fps), Third Stream (1920×1080@14fps)
60Hz:
Main Stream (1920×1080@30fps), Sub Stream (704×576@30fps), Third Stream (1920×1080@9fps)
Resolution

1080P (1920×1080)/1.3M (1280×960)
720P (1280×720)/D1 (704×576/704×480)/VGA (640×480)/CIF (352×288/352×240)

Video Scale

16:9

Video Bit Rate CBR; VBR
Audio
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Network
Network Port RJ-45 port (10/100 Base-T)/4-pin M12 aviation connector
Access Standard ONVIF Profile S&G, API
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;
FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S
NMP;TLS
Streaming Method Unicast / Multicast
Max. User Access Unicast: 10 Users
Multicast: 20 Users
Edge Storage NAS
Local PC for instant recording
Micro SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Power
Power Supply 12V DC/POE (802.3af)
Power Consumption

Basic power consumption: 1.3W
Max power consumption: 2.4W (IR on)

Environment
Operating Temperature -30°C to +60°C (-22°F to 140°F)
Operating Humidity ≤95%
Ingress Protection IP67
Operating Humidity < 95% (non-condensing)
Structure
Dimensions 107.0mm × 82.0mm × 68mm (4.21'' × 3.235'' × 2.68'') (with bracket)
Weight Net Weight: 395 g (0.87 lb)
Gross Weight: 550 g (1.21 lb)
Casing Metal
Installation Bracket Installation
Certification
Certification CE LVD/CE EMC/FCC/EN50155/E-mark/R118
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
