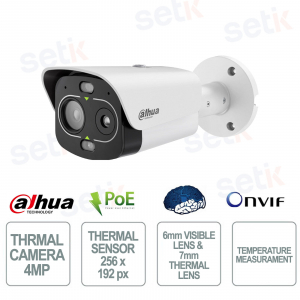

4MP Thermal Camera with Temperature Measurement, AI, 7mm/6mm Lens, PoE IP67 IK10 - Dahua

4MP Thermal Camera with Temperature Measurement, AI, 7mm/6mm Lens, PoE IP67 IK10 - Dahua
-56%

TPC-BF1241-TB7F6-DW-S8-V1 - is a thermal IP bullet camera from the Eureka series designed for advanced perimeter protection, fire prevention and professional thermal monitoring. It integrates a 256×192 px VOx thermal sensor and a 4 MP (2688×1520) optical camera with 7 mm thermal lens and 6 mm visible lens , ideal for monitoring large areas and long distances. Thanks to temperature measurement up to 650°C , the fusion of thermal and visible images , artificial intelligence for intrusion, people, vehicles, smoke and heat detection and the integrated dual microphone , it guarantees high operational reliability. The solution is completed by MicroSD up to 256 GB , PoE power supply, IR illumination up to 50 m and IP67 and IK10 protections for installations in critical environments. Dahua

Technical Data Sheet

Reference: TPC-BF1241-TB7F6-DW-S8-V1

Brand: Dahua

EAN: 6937552429093

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-BF1241-TB7F6-DW-S8-V1 | POE THERMAL BULLET IP CAMERA WITH 6mm FIXED LENS - 7mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - IP67 & IK10 - TEMPERATURE MEASUREMENT


Dahua

The Dahua TPC-BF1241-TB7F6-DW-S8-V1 is a professional thermal IP bullet camera from the Eureka series, designed for perimeter security, fire prevention and advanced thermal monitoring. It integrates a 256×192 px VOx thermal sensor and a 4 MP (2688×1520) optical camera with 7 mm thermal lens and 6 mm visible lens , ideal for long-distance applications. Thanks to temperature measurement up to 650°C , the fusion of thermal and visible images , AI for intrusion, people, vehicle, smoke and heat detection and the integrated dual microphone , it offers complete control of critical areas. The equipment also includes IR illumination up to 50 m , MicroSD up to 256 GB , PoE power supply, IP67 protection and IK10 vandal resistance.

Main specifications:

- Thermal sensor 256×192

- 4 MP optical camera

- 7mm thermal optics and 6mm visible optics

- Temperature measurement up to 650°C

- AI people and vehicles

- Fire and smoke detection

- Thermal and visible image fusion

- Built-in dual microphone

- MicroSD up to 256 GB

- PoE 802.3af

- IP67 and IK10

Further details

Optics :
The camera integrates a 6mm F1.6 visible lens combined with a 4MP (2688×1520) sensor , ideal for monitoring large areas and for controlling entrances and perimeters thanks to detailed images and a 59.9° horizontal field of view .
Thermal Optics :
The 7mm F1.0 fixed thermal optic offers high performance in security and fire prevention applications, with a 24° field of view that enables precise long-distance surveillance and improved detection of thermal anomalies.
Resolution:
The combination of a 256×192 px thermal sensor and a 4 MP optical camera allows the fusion of thermal and visible images, offering a complete view of the scene for professional and highly reliable video surveillance.
Thermal sensor:
The uncooled VOx sensor with NETD sensitivity ≤25 mK detects minute temperature changes, enabling early identification of overheating, hotspots and fire outbreaks even in challenging environmental conditions.
Artificial Intelligence:
Advanced AI features include perimeter protection , line crossing , intrusion detection , person and vehicle classification , smoke detection , heat detection , and hot and cold spot monitoring, significantly reducing false alarms.
Temperature measurement:
The professional thermometry function supports measurements from -20°C to +650°C with accuracy up to ±2°C , enabling simultaneous monitoring of 21 points, 21 lines and 21 areas for industrial and fire protection applications.

Built-in dual microphone:
The integrated dual microphone allows for high-quality ambient audio recording, improving the level of control and providing additional support for security event verification.
Alarm:
Equipped with 2 alarm inputs and 2 alarm outputs , as well as red, blue and white indicator lights , the camera can trigger immediate alerts and interact with external devices for effective emergency management.
Network Camera:
The 10/100 Mbps RJ45 interface with support for ONVIF, HTTPS, RTSP, IPv4/IPv6 protocols and Dahua SDK ensures perfect integration with NVR, VMS software and professional video surveillance systems.
PoE (Power over Ethernet):
802.3af PoE support allows power and data to be transmitted over a single Ethernet cable, reducing installation time and costs and improving the overall reliability of the security system.

Technical data sheet

TPC-BF1241-TB7F6-DW-S8-V1
Technical features
Dahua Eureka Series Hybrid Bullet IP Thermal Camera
Uncooled VOx thermal detector with 256 (H) × 192 (V) resolution, 12 µm pixel pitch, and 8-14 µm spectral range.
Thermal sensitivity (NETD) ≤25 mK@f/1.0
Thermal angle of view with 7 mm of H 24° and V 18°
16-level thermal digital zoom
Available color palettes (18 modes)
Visible channel with 1/1.8" CMOS sensor and 4MP resolution 2688 × 1520
Lens 6 mm fixed viewable with F1.6 aperture
Visible angle of view with 6 mm of H 59.9° and V 34.7°
Minimum illumination of 0.05 lux in color, 0.005 lux in B/W and 0 lux with IR
IR with a range of up to 50 m
White light up to 30 m range
Auto Day/Night (ICR), color and B/W mode
Video stream
H.265, H.264, H.264H and MJPEG compression
Available thermal resolutions: 1280 × 960, 1024 × 768, 640 × 480 and 256 × 192
Visible resolutions available: 2688 × 1520, 1080P (1920 × 1080), 720P (1280 × 720) and D1 (704 × 576)
Stream 1 thermal with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Stream 2 thermal with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Stream 1 visible with 1-25 ips (50 Hz) and 1-30 ips (60 Hz)
Stream 2 visible with 1-25 fps (50 Hz) and 1-30 fps (60 Hz)
Functionalities
Dual image fusion between visible and thermal channels
Digital Detail Enhancement (DDE) available
Automatic and manual AGC
Auto and manual white balance with Indoor, Outdoor, Tracking, Street lamp and Natural modes
120 dB real WDR
BLC and HLC available
RoI available (non-removable)
Image rotation 0°, 90°, 180°, 270° and 270°
Red and blue light alarm alerts
Intelligent functions
Perimeter tripwire and intrusion protection
Heat detection and alarm
Hot and cold spot mapping
Human and vehicle classification
Smoking detection
Call detection
Smoke detection
Temperature measurement with point (21), line (21) and area (21) modes
Up to 21 simultaneous rules
Temperature range -20 °C to +150 °C in low mode and 100 °C to +650 °C in high mode
Maximum accuracy of ±2 °C or ±2%.
Audio
Dual built-in microphones
1 audio input and 1 audio output
G.711a, G.711u, PCM and AAC compression
Storage
MicroSD card slot up to 256 GB (card not included)
Alarms
2 alarm inputs and 2 alarm outputs
Communication interface
RS-485 via 1 pair
Network
RJ-45 10/100 Base-T interface
Protocols HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP and 802.1x
ONVIF, CGI and Dahua SDK support
Up to 12 simultaneous users
Security via authorized user and password, associated MAC, HTTPS, IEEE 802.1x and network access control
Power supply
Power supply 12-24 VDC (±20%) and PoE (802.3af)
Basic power consumption less than 5.3 W (DC) and 6.5 W (PoE)
Maximum power consumption less than 12 W (DC) and 11.5 W (PoE)
12 VDC power output up to 0.15 A available with DC power only
Environmental
Operating temperature -40 °C to +65 °C (-40 °C to +65 °C)
Storage temperature -40 °C to +70 °C (-40 °C to +70 °C)
Relative humidity ≤95%.
IP67 protection
Vandal-resistant housing IK10
Corrosion level with basic protection
Physical characteristics
Dimensions: 233 × 97.6 × 99.8 mm
Packaging dimensions: 337 × 146 × 136 mm
Net weight: ≤1.1 kg
Gross weight: ≤1.4 kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
