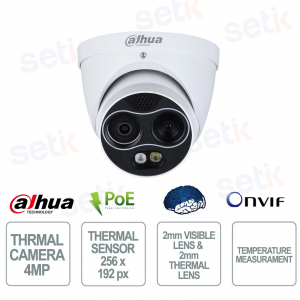

TPC-DF1241-TB2F2-DW-S8-V1 - is a Eureka series thermal dome IP camera designed for perimeter protection, fire prevention and advanced thermal monitoring. It integrates a 256×192 px VOx thermal sensor and a 4 MP (2336×1752) optical camera with 2 mm thermal lens and 2 mm visible lens , offering a wide field of view for monitoring large areas. Thanks to temperature measurement up to 550°C , the fusion of thermal and visible images , artificial intelligence for intrusion, people, vehicles, smoke and heat detection and integrated alarm audio , it guarantees reliable and proactive security. The solution is completed by MicroSD up to 256 GB , IR illumination up to 30 m , PoE power supply and IP67 protection for professional installations in outdoor environments. Dahua

Technical Data Sheet

Reference: TPC-DF1241-TB2F2-DW-S8-V1

Brand: Dahua

EAN: 6937552429024

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-DF1241-TB2F2-DW-S8-V1 | POE THERMAL DOME IP CAMERA WITH 2mm FIXED LENS - 2mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - IP67 - THERMOMETER


Dahua

The Dahua TPC-DF1241-TB2F2-DW-S8-V1 is a Eureka series thermal IP dome camera designed for perimeter security, fire prevention and professional thermal monitoring. It combines a 256×192 px VOx thermal sensor with a 4 MP (2336×1752) optical camera , equipped with a 2 mm thermal lens and a 2 mm visible lens , offering a wide field of view for monitoring large areas. Thanks to temperature measurement up to 550°C , the fusion of thermal and visible images , AI intrusion detection, people and vehicle classification, smoke and heat detection and integrated alarm audio , it guarantees intelligent and reliable surveillance. MicroSD up to 256 GB , IR illumination up to 30 m , PoE power supply and IP67 protection for outdoor installations complete the equipment.

Main specifications:

- Thermal sensor 256×192

- 4 MP optical camera

- 2mm thermal optics and 2mm visible optics

- Thermometry up to 550°C

- AI people and vehicles

- Smoke and heat detection

- Thermal and visible image fusion

- Built-in alarm audio

- PoE

- IP67

Further details

✅ Optics :
The camera integrates a 2mm F2.2 fixed visible lens with 4 MP (2336×1752) resolution and a wide 94° horizontal field of view , ideal for monitoring large areas, entrances, car parks and perimeter zones with detailed and clear images.
✅ Thermal Optics :
The 2mm F1.0 thermal optics offer a wide 87.8° field of view , allowing for extended coverage of the monitored area and effective detection of thermal anomalies, hot spots and fire incipients even in complete darkness.
✅ Resolution:
The combination of a 256×192 px thermal sensor and a 4 MP optical camera allows the fusion of thermal and visible images , improving event identification and offering advanced surveillance with a high level of detail.
✅ Thermal sensor:
The uncooled VOx sensor with NETD sensitivity below 40 mK detects minute temperature changes, ensuring precise and reliable monitoring for security, fire prevention and industrial control applications.
✅ Artificial Intelligence:
Advanced AI features include intrusion detection , line crossing , people and vehicle classification , smoke detection , heat detection and abnormal situation identification, reducing false alarms and increasing the effectiveness of video surveillance.
✅ Thermometry:
The temperature measurement function supports ranges from -20°C to +550°C with accuracy up to ±2°C , allowing simultaneous monitoring of points, lines and areas with up to 12 active rules , ideal for industrial and fire protection applications.

✅ Built-in Audio & Alarm:
The presence of a built-in speaker , alarm audio , built-in white light and 2 alarm inputs/2 alarm outputs allows for immediate response to critical events, improving deterrence and emergency management.
✅ Network Camera:
With 10/100 Mbps RJ45 port and support for ONVIF, HTTP, HTTPS, RTSP, IPv4/IPv6 protocols and Dahua SDK , the camera can be easily integrated with NVR, VMS software and professional IP video surveillance systems.
✅ PoE (Power over Ethernet):
Power over Ethernet (PoE) support allows power and data to be transmitted over a single network cable, simplifying installation, reducing cabling costs, and improving infrastructure reliability.

Technical data sheet

TPC-DF1241-TB2F2-DW-S8-V1
Technical features
Dahua Eureka Series Hybrid IP thermal dome
Thermal sensor: uncooled VOx detector, 256 (H) × 192 (V), pixel pitch 12 µm, spectral range 8-14 µm
Thermal sensitivity (NETD): < 40 mK (@f/1.0, 25 Hz, 300 K)
Lens fixed thermal: 2 mm, F1.0
Thermal angle of view (2 mm): H 87.8°, V 63.8°, V 63.8°, H 87.8°, V 63.8°, V 63.8°, V 63.8°.
Thermal digital zoom: 16 levels
Color palettes: 18
Fusion mode: 3 (Warm color, Cool color, Ironred)
Visible channel: 1/2.7" CMOS sensor, 4MP (2336 × 1752)
Lens Visible fixed: 2mm, F2.2
Visible angle of view (2 mm): H 94°, V 72°, V 72°
Minimum illumination: color 0.05 lux, B/W 0.005 lux, 0 lux (IR on)
IR: up to 30 m
Day/Night: Auto (ICR), Color, B/W
S/N ratio: ≥55 dB
Integrated white light
Video stream
Video compression: H.265, H.264, H.264H, MJPEG
Thermal resolutions: 1280 × 960 (1.3M), XVGA (1024 × 768), VGA (640 × 480), 256 × 192
Visible resolutions: 2336 × 1752, 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576)
Stream 1 (thermal): 1280 × 960 @ 25 fps (50 Hz) / 30 fps (60 Hz)
Stream 2 (thermal): 256 × 192 @ 15 fps by default
Stream 1 (visible): 2336 × 1752 @ 25 fps (50 Hz) / 30 fps (60 Hz)
Stream 2 (visible): 352 × 288 @ 15 ips by default
Functionalities
BLC, HLC and DWDR
Noise reduction: 2D NR, 3D NR
RoI: yes
Image rotation: 180
Dual image fusion (visible and thermal)
Automatic and manual AGC
Hot and cold spot tracing
Remote auxiliary management
Intelligent functions
General analytics: tripwire and intrusion
Heat detection and alarming
Human/vehicle classification
Smoking detection
Call detection
Temperature measurement with point, line and area mode (up to 12 simultaneous rules)
Temperature range: -20 °C to +150 °C (Low mode) / 0 °C to +550 °C (High mode)
Temperature accuracy: ±2 °C or ±2%.
Audio
Audio compression: G.711a, G.711mu, PCM
Audio input: 1
Audio output: 1
Built-in speaker for alarm
Storage
MicroSD card slot up to 256 GB (card not included)
Alarms
2 alarm inputs and 2 alarm outputs
Communication interface
RS-485 via 1 pair
Network
RJ-45 10/100 Base-T interface
Protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
ONVIF, CGI and Dahua SDK support
Concurrent users: 10
Security via authorized user and password, associated MAC, HTTPS, IEEE 802.1x and network access control
Power supply
Power supply: 12 VDC ± 20% and PoE
Basic power consumption: <3 w="" 12="" vdc="" led="" off="" 3="" 5="" poe="" td="">
Maximum consumption: <7 w="" 12="" vdc="" led="" on="" heater="" 9="" poe="" td="">
Environmental
Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
Storage temperature: -30 °C to +70 °C (-30 °C to +70 °C)
Relative humidity ≤95%.
IP67 protection
Physical characteristics
Installation: wall or ceiling mounting (with optional accessories)
Dimensions: 122 × 122 × 112 mm
Net weight: ≤0.85 kg
Gross weight: ≤1 kg
