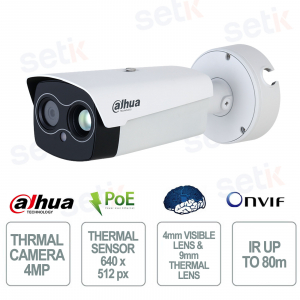

Dahua 4MP AI 9mm/4mm Thermal Camera with Fire Detection, PoE, IP67 and IK10

Dahua 4MP AI 9mm/4mm Thermal Camera with Fire Detection, PoE, IP67 and IK10
-56%

TPC-BF5641-B9F4-J-S5-V1 - is a professional IP thermal camera designed for perimeter protection and early fire detection in outdoor environments. It combines a highly sensitive 640×512 px VOx thermal sensor ( NETD ≤20 mK ) with a 4MP (2688×1520) optical camera , equipped with 9mm thermal lens and 4mm visible lens , to ensure detailed images and precise thermal monitoring. The advanced Xinghan Large-Scale Model AI features support Heat Detection, Smoke Detection, Tripwire, Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms. The solution is completed by two-way audio , integrated sound and light alarm , illumination up to 80 meters , PoE/ePoE support, MicroSD memory up to 512 GB , IP67 protection, IK10 resistance and TPM 2.0 security module for maximum operational reliability. Dahua

Technical Data Sheet

Reference: TPC-BF5641-B9F4-J-S5-V1

Brand: Dahua

EAN: 6937552410770

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-BF5641-B9F4-J-S5-V1 | POE THERMAL BULLET IP CAMERA WITH 4mm FIXED LENS - 9mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE DETECTION


Dahua

The Dahua TPC-BF5641-B9F4-J-S5-V1 is a professional thermal IP camera designed for perimeter protection and early fire detection. It integrates a 640×512 px VOx thermal sensor with NETD sensitivity ≤20 mK and a 4 MP (2688×1520) optical camera equipped with 9 mm thermal lens and 4 mm visible lens , ensuring precise images and reliable monitoring. The advanced AI Xinghan Large-Scale Model features support Heat Detection, Smoke Detection, Tripwire, Intrusion Detection and people and vehicle classification , reducing false alarms. The solution is completed by two-way audio , integrated sound and light alarm , illumination up to 80 meters , PoE/ePoE support, MicroSD memory up to 512 GB , IP67 protection, IK10 resistance and TPM 2.0 security module.

Main specifications:

- Thermal sensor 640×512

- 4 MP optical camera

- 9mm thermal optics and 4mm visible optics

- AI people and vehicles

- Smoke and fire detection

- Two-way audio

- Sound and light alarm

- PoE/ePoE

- IP67 and IK10

Further details

Optics :
The TPC-BF5641-B9F4-J-S5-V1 version integrates a 4mm F1.6 visible lens with 4MP (2688×1520) CMOS sensor , offering high definition images and a wide 87° field of view , ideal for open area monitoring and perimeter surveillance.
Thermal Optics :
The 9mm thermal optic with fixed focus technology provides a 50° × 39.6° field of view , enabling accurate detection of people, vehicles and thermal anomalies even in difficult environmental conditions.
Resolution:
The combination of a 640×512 px thermal sensor and a 4 MP optical camera ensures detailed images and perfect integration between thermal and visible vision for professional and reliable monitoring.
Thermal sensor:
The uncooled VOx sensor with NETD sensitivity ≤20 mK detects minute temperature changes, ensuring high performance in fire prevention, hot spot detection and advanced perimeter security.
Artificial Intelligence:
The innovative Xinghan Large-Scale AI Model supports Heat Detection , Smoke Detection , Tripwire , Intrusion Detection and intelligent classification of people and vehicles , dramatically reducing false alarms and increasing system reliability.
Functions:
The camera features Fusion Mode , Picture in Picture (PIP) , Cold/Hot Spot Trace , 24x digital zoom , 18 thermal palettes , DDE detail enhancement and 2D/3D NR noise reduction for optimal image display.

Two-way audio:
Thanks to the Two-Way Audio function, with dedicated audio input and output , it is possible to communicate in real time with the monitored area, improving event management and operational safety.
Sound alarm:
The integrated sound and light alarm system automatically activates acoustic signals and white light in the event of intrusion, smoke detection or thermal anomalies, increasing the deterrent effect.
Network Camera:
It supports professional protocols such as ONVIF, RTSP, HTTPS, IPv4/IPv6, SNMP, SFTP, FTP and 802.1X , allowing seamless integration with NVR, VMS software and advanced IP security systems.
Doors:
The equipment includes 10/100 Mbps RJ45 port , BNC CVBS video output , 2 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output and RS-485 port , offering maximum flexibility of integration with external devices.
PoE:
802.3af and ePoE support enables simultaneous transmission of power and data over a single Ethernet cable, simplifying installation and reducing cabling time and costs.

Technical data sheet

TPC-BF5641-B9F4-J-S5-V1
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) × 512 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤20 mK (@f/1.0)
Field of View H: 50.0°: V: 39.6°
Thermal Focus Control Fixed-focal
Close Focus Distance 1.8 m (5.91 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 24 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Fixed
Image Flip 180°; Mirror
Field of View H: 87.0°; V: 47.3°
Close Focus Distance 1.2 m (3.94 ft)
Openings F1.6
Illuminator On/Off Control Auto; manual
Illumination Distance 80 m (262.47 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default);
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default);
Sub streams: 704 × 576; 352×288; 352 × 288 (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression G.711a; G.711mu; PCM; AAC
Image Encoding Format JPEG
Function
Two-way Audio Yes
Sound and Light Alarm Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage FTP; Micro SD card (optional)
Interoperability ONVIF; CGI; DaHua SDK
Browser IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host Up to 12 (total bandwidth: 64 MB)
Security Network disconnection detection; IP conflict detection;
memory card state detection; memory space detection
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode Yes.
PIP Yes
Micro SD Card (Max.) 512 GB
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
Perimeter Protection Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Smoke Detection Yes
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 2
Alarm Linkage Recordings on SD card; digital output; e-mail; snapshot
Alarm Event No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 12-24 VDC (±10%), PoE (802.3af)
Power Consumption Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on)
ePoE Yes
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP67
Product Dimensions 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H)
Packaging Dimensions 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)
Net Weight ≤2.35 kg (5.18 lb)
Gross Weight ≤2.7 kg (5.95 lb)
Lens Included
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Vandal-proof Rating Enclosure: IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
