TPC-BF5441-B25F12-J-S5-V1 4MP AI Thermal Camera with 25mm and 12mm Lens, PoE, IP67 - Dahua

TPC-BF5441-B25F12-J-S5-V1 4MP AI Thermal Camera with 25mm and 12mm Lens, PoE, IP67 - Dahua
-56%

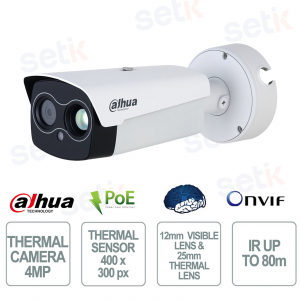

TPC-BF5441-B25F12-J-S5-V1 - is a hybrid IP thermal camera designed for advanced perimeter protection and early fire detection in industrial, logistics and critical infrastructure environments. Equipped with a 400×300 VOx thermal sensor with 25 mm thermal lens and a 4 MP visible camera with 12 mm lens , it offers high long-distance detection and monitoring performance. Xinghan Artificial Intelligence supports fire, smoke, intrusion, line crossing and human/vehicle classification detection , drastically reducing false alarms. The equipment also includes two-way audio , sound and light alarm , illumination up to 80 meters, PoE/ePoE power supply, IP67/IK10 protection and TPM 2.0 module for advanced cybersecurity. Dahua

Technical Data Sheet

Reference: TPC-BF5441-B25F12-J-S5-V1

Brand: Dahua

EAN: 6937552410732

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-BF5441-B25F12-J-S5-V1 | POE THERMAL BULLET IP CAMERA 12mm FISA LENS - 25mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - FIRE AND SMOKE DETECTION


Dahua

The Dahua TPC-BF5441-B25F12-J-S5-V1 is a hybrid thermal IP camera designed for advanced perimeter protection and early fire detection in industrial, logistics and critical infrastructure environments. Thanks to the 400×300 VOx thermal sensor with 25 mm thermal lens and the 4 MP visible camera with 12 mm lens , it offers high performance in long-distance monitoring and event identification. Xinghan Artificial Intelligence integrates fire, smoke, intrusion and human/vehicle classification detection , drastically reducing false alarms. The features also include two-way audio , sound and light alarm , illumination up to 80 m, PoE/ePoE , IP67/IK10 protection and TPM 2.0 module for advanced cybersecurity.

Main specifications:

- 400 × 300 VOx thermal sensor

- Thermal optics: 25 mm

- Visible camera: 4 MP CMOS

- Visible optics: 12 mm F1.7

- AI Xinghan: Man/Vehicle

- Smoke and fire detection

- Two-way audio

- Sound and light alarm

- Illumination: Up to 80 m

- Power: PoE 802.3af / ePoE

- IP67 and IK10

- Cybersecurity: TPM 2.0 integrated

Further details

✅ Optics :
The camera integrates a 12mm F1.7 visible lens designed to offer detailed images and greater subject identification capability at medium-long distances, making it ideal for monitoring perimeters, infrastructures and industrial areas.
✅ Thermal Optics :
The 25mm fixed thermal optic ensures advanced performance in detecting people, vehicles and thermal anomalies, allowing reliable monitoring even in complete darkness, fog or adverse weather conditions.
✅ Resolution:
The combination of a 400 × 300 pixel thermal sensor and a 4 MP (2688 × 1520 pixel) optical camera ensures clear images and precise thermographic information, improving event verification and video analytics quality.
✅ Thermal sensor:
Equipped with a 12 μm uncooled VOx sensor and NETD sensitivity ≤20 mK , the camera detects even the smallest temperature changes, enabling early identification of hot spots and fire outbreaks.
✅ Artificial Intelligence:
The Xinghan Large-Scale AI Model system features intelligent human/vehicle classification , advanced target filtering and false alarm reduction, ensuring more efficient and reliable monitoring.
✅ Functions:
It supports fire detection , smoke detection , tripwire , intrusion , Cold/Hot Spot Trace , Fusion mode and Picture in Picture (PIP) , providing advanced management of thermal and visible images in real time.

✅ Two-way audio:
The Two-Way Audio function allows real-time communication between the operator and the monitored area, improving remote control, prevention and deterrence activities.
✅ Sound alarm:
The system integrates an intelligent acoustic and luminous alarm that can be activated automatically in the event of intrusions, fires or other configured events, increasing the level of security of the system.
✅ Network Camera:
Compatible with HTTP, HTTPS, RTSP, RTP, IPv4/IPv6, SNMP, QoS, SFTP, 802.1X and ONVIF protocols, it ensures perfect integration with NVR, VMS and professional IP video surveillance platforms.
✅ Doors:
It features 10/100 Mbps RJ45 port , 2 alarm inputs , 2 alarm outputs , audio input , audio output , RS-485 port and BNC analog video output, offering maximum flexibility of connection and integration.
✅ PoE:
802.3af and ePoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing cabling costs, and improving network infrastructure efficiency.

Technical data sheet

TPC-BF5441-B25F12-J-S5-V1
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400 (H) × 300 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤20 mK (@f/1.0)
Field of View H: 10.9°; V: 8.2°
Thermal Focus Control Fixed-focal
Close Focus Distance 15 m (49.21 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 24 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°; Mirror
Field of View H: 37.3°; V: 21.4°
Close Focus Distance 7.4 m (24.28 ft)
Openings F1.7
Illuminator On/Off Control Auto; manual
Illumination Distance 80 m (262.47 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default);
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default);
Sub streams: 704 × 576; 352×288; 352 × 288 (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression G.711a; G.711mu; PCM; AAC
Image Encoding Format JPEG
Function
Two-way Audio Yes
Sound and Light Alarm Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage FTP; Micro SD card (optional)
Interoperability ONVIF; CGI; DaHua SDK
Browser IE: IE8 and later (including the browsers with IE kernel, such as 360 Explorer, Sougou Explorer); Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host Up to 12 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC
address; HTTPS; IEEE 802.1x; controlled network access
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode Yes
PIP Yes
Micro SD Card (Max.) 512 GB
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
Perimeter Protection Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Smoke Detection Yes (by pixel)
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 2
Alarm Linkage Recordings on SD card; digital output; e-mail; snapshot
Alarm Event No SD card; low SD card space; SD card error; network disconnection; IP conflict; motion detection; video tampering; intrusion; tripwire; audio detection
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 12-24 VDC (±10%), PoE (802.3af)
Power Consumption Basic: 5.2 W (illuminator off, heater off, speaker off); Max: 16.2 W (illuminator on, heater on, speaker on)
ePoE Yes
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP67
Product Dimensions 300.9 mm × 130.2 mm × 120.1 mm (11.85" × 5.13" × 4.73") (L × W × H)
Packaging Dimensions 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)
Net Weight ≤2.35 kg (5.18 lb)
Gross Weight ≤2.7 kg (5.95 lb)
Lens Included
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Vandal-proof Rating Enclosure: IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Certification
Certifications THERE IS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
