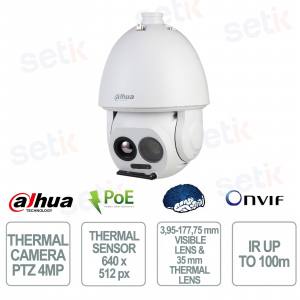

TPC-SD5641-B35Z45 4MP PTZ Thermal Camera 45x Zoom AI Hi-PoE IP66 - Dahua

TPC-SD5641-B35Z45 4MP PTZ Thermal Camera 45x Zoom AI Hi-PoE IP66 - Dahua
-56%

TPC-SD5641-B35Z45 - is a hybrid thermal speed dome camera designed for advanced perimeter protection and monitoring of large sensitive areas. Thanks to the 640×512 VOx thermal sensor with NETD sensitivity ≤35 mK and the 4 MP CMOS optical sensor , it offers extremely detailed and reliable images in any environmental conditions. The combination of a 35 mm thermal lens and a 3.95-177.75 mm motorized visible lens with 45x optical zoom ensures high detection, recognition and identification capabilities over long distances. Advanced Artificial Intelligence functions include human/vehicle classification, vessel detection, intrusion, line crossing and heat detection, while 360° PTZ , thermal and visible image fusion , two-way audio , Hi-PoE , IR illumination up to 100 m and IP66 protection ensure professional performance for critical security applications. Dahua

Technical Data Sheet

Reference: TPC-SD5641-B35Z45

Brand: Dahua

EAN: 6923172570246

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-SD5641-B35Z45 | POE PTZ THERMAL IP CAMERA WITH 3.95-177.75mm VARIFOCAL LENS - 35mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - HEAT DETECTION AND TRACKING


Dahua

The Dahua TPC-SD5641-B35Z45 is a hybrid thermal speed dome camera designed for advanced perimeter protection and large infrastructure monitoring. Equipped with a 640×512 VOx thermal sensor with NETD sensitivity ≤35 mK and a 4 MP CMOS optical sensor , it guarantees detailed images and high performance in any environmental conditions. The combination of a 35 mm thermal lens and a 3.95-177.75 mm motorized visible lens with 45x optical zoom provides exceptional detection, recognition and identification capabilities over long distances. Advanced AI functions include human/vehicle classification, boat detection, intrusion, line crossing and heat detection, while 360° PTZ , two-way audio , Hi-PoE , IR up to 100 m and IP66 protection ensure a professional solution for critical security applications.

Main specifications:

- 640×512 VOx thermal sensor

- 4 MP CMOS optical sensor

- 35mm thermal optics

- Visible optics 3.95-177.75 mm

- 45x optical zoom

- Continuous 360° PTZ

- AI: human/vehicle and vessels

- Heat Detection and Tracking

- IR up to 100m

- PoE+ and IP66

Further details

Optics :
The powerful 3.95-177.75mm motorized visible lens with 45x optical zoom allows you to quickly switch from wide overviews to extremely fine details, making it ideal for large area monitoring and long-distance surveillance.
Thermal Optics :
The 35mm thermal optics offer high heat source detection capability, enabling effective monitoring of people, vehicles and thermal anomalies even at long distances.
Resolution:
The 4 MP optical sensor with a maximum resolution of 2688×1520 pixels ensures sharp and detailed images, while the thermal channel supports resolutions up to 1280×1024 , improving the analysis of the monitored scenes.
Thermal sensor:
The uncooled 640×512 VOx sensor with NETD sensitivity ≤35 mK detects minute temperature differences, ensuring effective monitoring even in total darkness, fog, rain or smoke.
PTZ Camera:
The PTZ Speed Dome system supports continuous Pan 360° rotation and Tilt from -10° to +90° , with 200 presets , automatic tours, patterns and programmable scans for complete coverage of the monitored area.
Artificial Intelligence:
Advanced AI Analytics capabilities include human/vehicle classification , vessel detection , intelligent edge analysis, and automatic target tracking, significantly reducing false alarms.
Functions:
It integrates Heat Detection , Cold/Hot Spot Trace , Tripwire , Intrusion Detection , Target Tracking , Dual Image Fusion and Picture in Picture (PIP) mode for advanced security and thermal anomaly management.

Two-way audio:
The Two-Way Audio function enables real-time voice communication between the operator and the monitored site, facilitating immediate interventions and remote control activities.
Network Camera:
Compatible with professional protocols such as ONVIF, HTTPS, RTSP, IPv4/IPv6, SNMP, QoS, SFTP and 802.1X , it ensures perfect integration with VMS and advanced video surveillance systems.
Doors:
It has a 10/100 Base-T RJ45 port , BNC CVBS video output , 7 alarm inputs , 2 alarm outputs , audio input and output , RS-485 port and MicroSD slot up to 512 GB , offering maximum integration flexibility.
PoE: Hi-PoE support enables power and data transmission over a single Ethernet cable, simplifying installation and reducing wiring time and costs in professional applications.

Technical data sheet

TPC-SD5641-B35Z45
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) × 512 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤35 mK (@f/1.0)
Focal Length 35 mm
Field of View H: 12.6°; V: 10.1°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°
Exposure Compensation Yes
Visible Focus Control Manual
Focal Length 3.95 mm–177.75 mm
Field of View H: 67.5°–1.9°
V: 39.4°–1.1°
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Illuminator On/Off Control Auto; manual
Illumination Distance 100 m (328.08 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream:2688×1520 (optional); 2560 × 1440; 1080p (1920 × 1080); 1280×720; 704×576; 2560 × 1440 (default)
Sub stream: 1920×1080; 1280×720; 704×576
Video Frame Rate Thermal:
50 Hz: (main stream) 1 fps–50 fps adjustable, 50 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–60 fps adjustable, 60 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visible:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu
Image Encoding Format JPEG
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –10° to +90°
Manual Speed Control Pan: 0.1°/s –200°/s
Tilt: 0.1°/s –120°/s
Preset Speed Pan: 240°/s
Tilt: 200°/s
Presets

200

Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 2
Power-off Memory Yes
Privacy Masking 4 areas in the same view
Idle Motion Presets; car patterns; car tours; Pan; progressive scan
Function
Two-way Audio Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage Micro SD card
Micro SD Card (Max.) 512 GB
Interoperability ONVIF; CGI; Dahua SDK
Browser IE: IE 8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier
User/Host Up to 20 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Up to 10 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
PIP Yes (Intelligence automatically turns off when PIP is on)
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
IVS (Perimeter Protection) Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Target Tracking Yes
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 7
Alarm Output 2
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 36 VDC ± 50%, Hi-PoE
Power Consumption Basic: ≤21W (36VDC); 16W (PoE)
Max: ≤40W (36VDC); 41W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP66
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Anti-corrosion Level Basic Protection
*The products are designed for general use in areas that have no specific requirements for anti-corrosion protection.
Structure
Product Dimensions Φ240mm × 382mm (Φ9.45" × 15.04")
Packaging Dimensions 319 mm × 319 mm × 521 mm (12.56" × 12.56" × 20.51") (L × W × H)
Net Weight ≤8 kg (17.64 lb)
Gross Weight ≤10 kg (22.05 lb)
