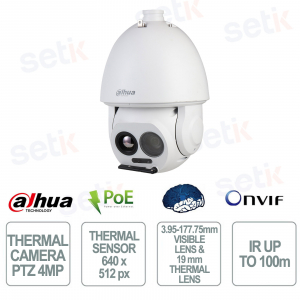

TPC-SD5641-TB19Z45 - is a professional PTZ thermal camera designed for advanced perimeter protection and critical infrastructure monitoring. It integrates a 640×512 VOx thermal sensor with 19mm thermal lens and a 4MP visible camera with 45x optical zoom and 3.95-177.75mm lens, ensuring detailed images and accurate long-distance detection. Artificial Intelligence functions include intrusion detection, tripwire, human/vehicle classification, heat source detection and automatic target tracking. Thanks to the fusion of thermal and visible images , two-way audio , IR illumination up to 100m , Hi-PoE support and IP66 protection, it offers high performance and continuous reliability even in the most challenging environments. Dahua

Technical Data Sheet

Reference: TPC-SD5641-TB19Z45

Brand: Dahua

EAN: 6923172592538

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-SD5641-TB19Z45 | POE PTZ THERMAL IP CAMERA WITH 3.95-177.75mm VARIFOCAL LENS - 19mm THERMAL LENS - 4 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - HEAT DETECTION AND TRACKING


Dahua

The Dahua TPC-SD5641-TB19Z45 is a professional PTZ thermal camera designed for wide-area monitoring and advanced perimeter protection. It combines a 640×512 VOx thermal sensor with a 19 mm thermal lens and a 4 MP visible camera with 45x optical zoom and a 3.95-177.75 mm lens, ensuring detailed images and precise long-distance detection. Advanced AI functions include intrusion detection, tripwire, human/vehicle classification, heat source detection and automatic target tracking. Thermal and visible image fusion , two-way audio , IR illumination up to 100 m , Hi-PoE support and IP66 protection ensure high performance in any operational context.

Main specifications:

- 640×512 VOx thermal sensor

- 4 MP CMOS optical sensor

- 19mm thermal optics

- Visible optics 3.95-177.75 mm

- 45x optical zoom

- AI with human/vehicle classification

- Heat, intrusion and tripwire detection

- Thermal and visible image fusion

- Two-way audio

- IR illumination 100m

- IP66 protection and Hi-PoE power supply

Further details

✅ Optics :
The camera integrates a 3.95-177.75 mm visible lens with a powerful 45x optical zoom , ideal for detailed monitoring of large areas and identification of subjects and vehicles even at long distances.
✅ Thermal Optics :
The 19mm thermal optic offers a wide detection field of heat sources, allowing effective control even in total darkness, fog, smoke or adverse weather conditions.
✅ Resolution:
The visible camera offers a resolution of up to 4 MP (2688×1520) , while the thermal channel reaches 640×512 pixels , ensuring sharp images and accurate thermal information.
✅ Thermal sensor:
The uncooled VOx (Vanadium Oxide) sensor with NETD sensitivity ≤35 mK ensures high accuracy in detecting temperature differences and thermal anomalies.
✅ PTZ Camera:
The motorized PTZ system supports 360° continuous rotation, -10° to +90° tilt, up to 200 presets , automatic tours and intelligent tracking for dynamic and professional coverage of large areas.
✅ Artificial Intelligence:
Advanced AI functions enable human/vehicle classification , vessel detection, heat source recognition and intelligent monitoring of critical events.
✅ Functions:
Includes thermal and visible image fusion , intrusion detection, tripwire , automatic target tracking, hot and cold spot detection, and electronic image stabilization for high performance in any operational scenario.

✅ Two-way audio:
Two-Way Audio support enables real-time communications through dedicated audio inputs and outputs, enhancing interaction and security event management.
✅ Network Camera:
It supports H.265/H.264 compression, advanced network protocols, ONVIF compatibility, MicroSD storage up to 512GB and secure remote access for professional video surveillance management.
✅ Doors:
It has RJ-45 port , 7 alarm inputs , 2 alarm outputs , audio input and output , CVBS video output and RS-485 port , ensuring high flexibility of integration with external devices.
✅ PoE:
Hi-PoE support allows power and data to be transmitted over a single Ethernet cable, simplifying installation, reducing infrastructure costs, and increasing system reliability.

Technical data sheet

TPC-SD5641-TB19Z45
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) × 512 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤35 mK (@f/1.0)
Focal Length 19 mm
Field of View H: 23.3°; V: 18.6°
Thermal Focus Control Fixed-focal
Digital Detail Enhancement (DDE) Yes
Digital Zoom 19 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Visible
Image Sensor 1/2.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 900 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Manual/Auto
Image Flip 180°
Exposure Compensation Yes
Visible Focus Control Manual
Focal Length 3.95 mm–177.75 mm
Field of View H: 67.5°–1.9°
V: 39.4°–1.1°
Close Focus Distance 1 m–10 m (3.28 ft–32.81 ft)
Illuminator On/Off Control Auto; manual
Illumination Distance 100 m (328.08 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream:2688×1520 (optional); 2560 × 1440; 1080p (1920 × 1080); 1280×720; 704×576; 2560 × 1440 (default)
Sub stream: 1920×1080; 1280×720; 704×576
Video Frame Rate Thermal:
50 Hz: (main stream) 1 fps–50 fps adjustable, 50 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–60 fps adjustable, 60 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visible:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression G.711a; G.711mu
Image Encoding Format JPEG
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –10° to +90°
Manual Speed Control Pan: 0.1°/s –200°/s
Tilt: 0.1°/s –120°/s
Preset Speed Pan: 240°/s
Tilt: 200°/s
Presets

200

Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 2
Power-off Memory Yes
Privacy Masking 4 areas in the same view
Idle Motion Presets; car patterns; car tours; Pan; progressive scan
Function
Two-way Audio Yes
Network Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI) Yes
Storage Micro SD card
Micro SD Card (Max.) 512 GB
Interoperability ONVIF; CGI; Dahua SDK
Browser IE: IE 8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier
User/Host Up to 20 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Up to 10 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
PIP Yes (Intelligence automatically turns off when PIP is on)
Intelligence
Heat Detection Yes
Cold/Hot Spot Trace Yes
IVS (Perimeter Protection) Yes. Supports tripwire and intrusion
Target Distinction Human/Vehicle Classification
Target Tracking Yes
Port
Analog Output 1 × CVBS output; BNC port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 7
Alarm Output 2
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 36 VDC ± 50%, Hi-PoE
Power Consumption Basic: ≤21W (36VDC); 16W (PoE)
Max: ≤40W (36VDC); 41W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Physical Characteristics
Protection IP66
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Anti-corrosion Level Basic Protection
*The products are designed for general use in areas that have no specific requirements for anti-corrosion protection.
Structure
Product Dimensions Φ240mm × 382mm (Φ9.45" × 15.04")
Packaging Dimensions 319 mm × 319 mm × 521 mm (12.56" × 12.56" × 20.51") (L × W × H)
Net Weight ≤8 kg (17.64 lb)
Gross Weight ≤10 kg (22.05 lb)
