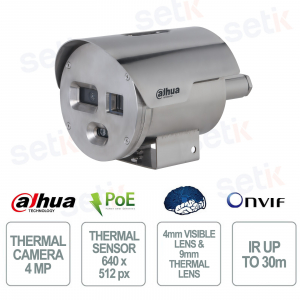

Dahua TPC-AEBF5641-TB9F4-DW-S2-G 4MP AI PoE IP68 ATEX IECEx Explosion-Proof Thermal Camera

Dahua TPC-AEBF5641-TB9F4-DW-S2-G 4MP AI PoE IP68 ATEX IECEx Explosion-Proof Thermal Camera
-56%

TPC-AEBF5641-TB9F4-DW-S2-G - is an explosion-proof thermal camera designed for hazardous environments such as petrochemical plants, refineries and chemical industries. It integrates a 640 × 512 VOx thermal sensor with 9 mm thermal lens and a 4 MP visible camera with 4 mm lens , offering advanced thermographic monitoring and temperature measurement with accuracy up to ±2°C . Thanks to Artificial Intelligence functions with human/vehicle classification, tripwire , intrusion detection and hot and cold spot detection, it guarantees reliable protection of critical areas. Equipped with two-way audio , light and sound alarm , illumination up to 30 meters , ATEX/IECEx explosion-proof certification, PoE/ePoE and IP68 protection, it ensures maximum safety and business continuity in the most extreme environments. Dahua

Technical Data Sheet

Reference: TPC-AEBF5641-TB9F4-DW-S2-G

Brand: Dahua

EAN: 6923172586452

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TPC-AEBF5641-TB9F4-DW-S2-G | BOXED POE THERMAL IP CAMERA WITH 4mm FIXED LENS - 9mm THERMAL LENS - 4 MP - ARTIFICIAL INTELLIGENCE - TWO-WAY AUDIO - TEMPERATURE MEASUREMENT ±2°C


Dahua

The Dahua TPC-AEBF5641-TB9F4-DW-S2-G is an explosion-proof thermal camera designed for monitoring high-risk industrial areas, such as petrochemical plants, refineries and environments with explosive atmospheres. It combines a 640 × 512 VOx thermal sensor with 9 mm thermal lens and a 4 MP visible camera with 4 mm lens , offering advanced thermal detection and non-contact temperature measurement with accuracy up to ±2°C . Artificial Intelligence functions include human/vehicle classification, tripwire , intrusion detection and hot and cold spot tracking for effective protection. Thanks to two-way audio , audible and light alarm , PoE/ePoE support, ATEX and IECEx certifications and IP68 protection, it guarantees reliability and safety in the most critical applications.

Main specifications:

- VOx thermal sensor 640 × 512

- 4 MP camera

- 9mm thermal optics

- Visible optics 4 mm

- Temperature measurement ±2°C

- Man/vehicle classification

- Tripwire and Intrusion Detection

- Two-way audio

- Sound and light alarm

- PoE and ePoE

- ATEX/IECEx certification

- IP68 protection

Further details

Optics :
The visible camera integrates a 4 mm fixed lens with a wide 90.1° field of view , ideal for continuous monitoring of industrial areas, production plants and high-risk zones.
Thermal Optics :
The TPC-AEBF5641-TB9F4-DW-S2-G model features a 9mm thermal optic , designed for thermographic sensing and non-contact temperature measurement, with detection capabilities up to 540 meters .
Resolution:
The combination of a 640 × 512 pixel thermal sensor and a 4 MP (2688 × 1520) optical camera ensures detailed images and accurate thermal data for professional security and process control applications.
Thermal sensor:
The Vanadium Oxide Uncooled Focal Plane Detector sensor with NETD sensitivity ≤40 mK detects minute temperature changes and supports measurements up to 550°C , with maximum accuracy ±2°C or ±2% .
Artificial Intelligence:
AI capabilities integrate Human & Vehicle Classification , enabling intelligent target recognition and significant reduction in false alarms in perimeter security applications.
Functions:
It supports Tripwire , Intrusion Detection , Cold/Hot Spot Trace , Fusion mode, Picture-in-Picture (PIP) and advanced thermal monitoring for early detection of anomalies and risky situations.

Two-way audio:
The Two-Way Audio function enables real-time communication between the operator and the monitored area, improving event management and remote site control.
Sound alarm:
It integrates an acoustic and visual alarm system that activates automatically in the presence of critical events or abnormal temperatures, increasing the operational safety of the system.
Network Camera:
Compatible with IPv4/IPv6 , HTTPS , RTSP , SNMP , FTP , SMTP , ONVIF and CGI protocols, it guarantees perfect integration with VMS platforms and industrial supervision systems.
Doors:
It features 1 10/100 Mbps RJ-45 port , 2 alarm inputs , 2 alarm outputs , 1 audio input , 1 audio output and 1 RS-485 port , offering maximum flexibility for integration with advanced security systems.
PoE:
It supports 802.3af PoE and ePoE power delivery, allowing simultaneous transmission of power and data over a single Ethernet cable, simplifying installation and reducing infrastructure costs.

Technical data sheet

TPC-AEBF5641-TB9F4-DW-S2-G
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 640 (H) × 512 (V)
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤40 mK (@f/1.0)
Focal Length 9 mm
Field of View H: 48.3°; V: 38.6°
Thermal Focus Control Fixed-focal
Close Focus Distance 2.2 m (7.22 ft)
Detection Distance Vehicle: 1,000 m (3,280.8 ft)
Human: 375 m (1,230.3 ft)
Recognition Distance Vehicle: 250 m (820.21 ft)
Human: 96 m (314.96 ft)
Identification Distance Vehicle: 125 m (410.1 ft)
Human: 48 m (157.48 ft)
Digital Detail Enhancement (DDE) Yes
Digital Zoom 24 levels
Thermal AGC Auto/Manual
Thermal Noise Reduction 2D NR/3D NR
Image Flip 180°; Mirror
Color Palettes 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Temperature Measurement Range Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F)
High temperature mode: +100 °C (+212 °F) to +550 °C (+1022 °F)
Auto mode
Temperature Measurement Accuracy Max. (±2 °C, ±2%)
Operating temperature: –20 °C (–4 °F) to +50 °C (+122°F)
Temperature Measurement Mode Spots: 12
Line: 12
Area: 12
Support 12 rules simultaneously
Visible
Image Sensor 1/2.7" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Pixel 4 MP
Horizontal Definition

≥1100 TVL

Min. Illumination Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)
Visible AGC Auto/Manual
Visible Noise Reduction 2D NR/3D NR
S/N Ratio >55 dB
White Balance Car; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural
Defog Electronic defog
Electronic Shutter Speed 1 s–1/30,000 s (auto/manual)
BLC Yes
WDR Yes
HLC Yes
Day/Night Auto (ICR); Color; B/W
Iris Control Fixed
Image Flip 180°; mirror; rotation mode
Exposure Compensation Yes
Visible Focus Control Fixed-focal
Focal Length 4 mm
Field of View H: 90.1°; V: 48.2
Close Focus Distance 1.5 m (4.92 ft)
Openings F2.0
Illuminator On/Off Control Auto; manual
Illumination Distance 30 m (98.43 ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B
Video Compression Thermal:
Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320×256; 640 × 512 (default)
Visible:
Main stream:2688 × 1520; 1920×1080; 1280×720; 704×576; 2688 × 1520 (default);
Sub streams: 704 × 576; 352×288; 704 × 576 (default)
Video Frame Rate Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Audio Compression PCM; G.711a; G.711mu; AAC
Image Encoding Format JPEG
Function
Two-way Audio Yes
Sound and Light Alarm Local audio and white light alarm prompts
Network Protocol IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE
Storage FTP; Micro SD card (optional)
Micro SD Card (Max.) 512 GB
Interoperability ONVIF; CGI
Browser IE; Firefox; Chrome
User/Host Up to 20 (total bandwidth: 64 MB)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Up to 20 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
PIP Yes
Intelligence
Cold/Hot Spot Trace Yes
Perimeter Protection Yes. Supports tripwire and intrusion.
Target Distinction Human/Vehicle Classification
Port
Network Port 1 × RJ-45 (10/100 Base-T)
Alarm Input 2
Alarm Output 2
Audio Input 1
Audio Output 1
RS-485 1
Power
Power Supply 12 VDC ± 20%, PoE (802.3af)
Power Consumption Basic: 5 W
Max: 10 W
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Physical Characteristics
Protection IP68
Reliability Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
Structure
Product Dimensions 248 mm × 149 mm × 155.7 mm (9.76" × 5.87" × 6.13") (L × W × H)
Packaging Dimensions Package: 330 mm × 256 mm × 256 mm (12.99" × 10.08" × 10.08") (L × W × H)
Protection box: 535 mm ×535 mm ×360 mm (21.06" ×21.06" × 14.17") (L × W × H)
Net Weight ≤5.8 kg (12.79 lb)
Gross Weight ≤6.8 kg (14.99 lb)
Certification
Certifications CE/FCC
Explosion-proof certification ATEX, IECEx:
II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
