IPC-HDBW5859R1-ASE-PV-PRO-ATC | 8MP IP DOME CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - POE - CORROSION-RESISTANT

Dahua

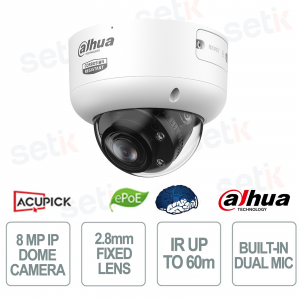

The Dahua IPC-HDBW5859R1-ASE-PV-PRO-ATC is a professional 8 MP Ultra HD IP dome camera with 2.8 mm fixed lens and a wide viewing angle of up to 109°, ideal for video surveillance of large areas. Thanks to WizColor technology, the 1/1.8" CMOS sensor and F1.0 aperture, it offers detailed color images even in minimum lighting conditions. The WizMind AI platform with Xinghan Large-Scale AI Models-Vision integrates AcuPick, perimeter protection, face detection, people counting and video metadata for intelligent monitoring. The features also include a built-in dual microphone , speaker with two-way audio , IR illumination up to 60 m , PoE/ePoE power supply and a robust anti-corrosion aluminum alloy structure certified C5-H and NEMA 4X , with IP67 and IK10 protections for installations in extreme environments.

Main specifications:

- Resolution 8 MP (3840×2160)

- Fixed optics 2.8 mm

- WizColor Technology

- AI WizMind with AcuPick

- Face Detection and People Counting

- Built-in dual microphone

- Two-way audio

- IR up to 60m

- PoE+ and ePoE

- IP67 and IK10

- MicroSD up to 1 TB

- C5-H anti-corrosion body

Further details

Optics :
The 2.8mm fixed lens with F1.0 aperture offers a wide field of view up to 109° horizontally , ideal for monitoring large areas. The large aperture allows more light to be captured, improving image quality even in nighttime or low-light scenarios.
Resolution:
The 1/1.8" CMOS sensor and 8 MP Ultra HD (3840 × 2160) resolution deliver extremely detailed images, allowing for the accurate identification of people, vehicles and scene details with high clarity.
Xinghan Large-Scale AI Models-Vision :
The Xinghan advanced AI platform combines edge AI algorithms and NPU computing power to improve object recognition, scene analysis, and environmental adaptation. It enables the simultaneous execution of multiple intelligent tasks with high precision and low computational power.
Audio :
Equipped with a built-in dual microphone and built-in speaker , it supports two-way audio for real-time communication, ambient listening and immediate remote intervention during security events.
Alarm :
It features 1 alarm input and 1 alarm output with advanced event management such as intrusion, line crossing, face detection, crowding, video tampering, audio detection, and people counting . It also supports light and sound alerts with customizable messages for active deterrence.
Network Camera:
This professional IP camera supports advanced protocols such as ONVIF Profile S/G/T/M, RTSP, HTTPS, IPv4/IPv6 and P2P , ensuring seamless integration with NVRs, VMS and professional video surveillance platforms. It supports MicroSD storage up to 1 TB , NAS and remote servers.
Functions:
It integrates advanced technologies such as AcuPick , Perimeter Protection , Face Detection , People Counting , Heat Map , Video Metadata , Smart Search , WDR 130 dB , Smart Dual Light , Defog and WizColor , offering intelligent video analytics and color images even in extremely low light conditions.
Doors :
The equipment includes 10/100 Mbps RJ-45 port , RS-485 , RCA audio input and output, alarm input and output and 12 VDC power output, allowing for easy integration with advanced security and automation systems.
PoE :
PoE+ (IEEE 802.3at) and ePoE support allow power and data to be transmitted over a single Ethernet cable, simplifying installation and significantly reducing wiring time and costs.
Enhanced Anti-Corrosion Aluminum Alloy :
The advanced anti-corrosion aluminum alloy enclosure, certified C5-H and NEMA 4X , ensures superior resistance against salt spray, humidity, chemicals and acid rain. It is the ideal solution for installations in ports, coastal areas, industrial plants and highly corrosive environments , ensuring reliability and long operating life .

Technical data sheet

MODEL IPC-HDBW5859R1-ASE-PV-PRO-ATC
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination [email protected](Color,30IRE)
0.0002 [email protected](B/W,30IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control Auto;Manual;Zoomprio
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Lens Mount M16
Focal Length 2.8 mm
Max. Openings F1.0
Field of View H: 109°; V: 59°; D: 131°
Iris Control Fixed
Close Focus Distance 3.2 m (10.50 ft)
Intelligence
EPTZ Yes
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3840 × 2160@(1 fps–25/30 fps)
sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
Fourth stream: 1280 × 720@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 130 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 11 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Cyber Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Light Warning Warm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
NEMA 4X
Port
RS-485 1 (baud rate range:1200 bps–115200 bps)
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 1 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Power Output 12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.1W (12VDC); 4.8W (PoE)
Max. 21.7W (12VDC); 23.9 W (PoE) (IR on + WDR +intelligence on + siren and light active deterrence)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Anti-corrosion Level Professional Protection
Structure
Casing Material Metal
Product Dimensions 105.0 mm × Φ126.0 mm (4.13" × Φ4.96")
Net Weight 0.73 kg (1.61 lb)
Gross Weight 0.94 kg (2.07 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
