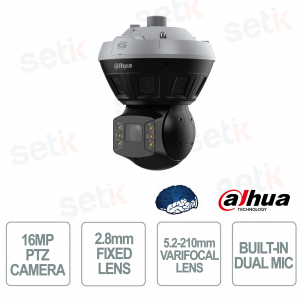

PSDW81652S-A360-D440 - is a 16 MP WizMind Panoramic PTZ camera designed for intelligent monitoring of large areas, thanks to 8 2 MP panoramic sensors with 2.8 mm fixed lens that generate a 360° view and a 4 MP PTZ camera with 5.2-210 mm motorized lens and 40x optical zoom . Based on the Xinghan Large-Scale AI Models-Vision platform, it integrates advanced functions such as perimeter protection, crowd density map, boat detection, video metadata, face detection and smart tracking . Hybrid lighting with IR up to 150 m and warm light up to 100 m , combined with integrated dual microphone and dual speaker , guarantees high performance in any scenario. PoE++ compatibility, MicroSD support up to 1 TB and IP67 and IK10 protections complete a professional solution for advanced video surveillance. Dahua

Technical data sheet

Reference: PSDW81652S-A360-D440

Brand: Dahua

EAN: 6937552406308

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


PSDW81652S-A360-D440 | PTZ IP CAMERA WITH 2.8mm FIXED LENS AND 4MP RESOLUTION AND 5.2-210mm VARIFOCAL LENS AND 16MP RESOLUTION - ARTIFICIAL INTELLIGENCE - POE - ANTI-CORROSION

Dahua

The Dahua PSDW81652S-A360-D440 is a 16 MP WizMind Panoramic PTZ camera that combines 8 x 2 MP panoramic sensors with 2.8 mm fixed lens for 360° coverage and a 4 MP PTZ camera with 5.2-210 mm motorized lens and 40x optical zoom for long-distance detail monitoring. Thanks to Xinghan Large-Scale AI Models-Vision technology, it supports perimeter protection, crowd map, vehicle density, boat detection, face detection, video metadata and smart tracking . Hybrid illumination with IR up to 150 m and warm light up to 100 m , together with built-in dual microphone and dual speaker , ensures high performance in any scenario. PoE++ compatibility, MicroSD support up to 1 TB and IP67 and IK10 protections make this solution ideal for professional advanced video surveillance applications.

Main specifications:

- 16MP 360° panoramic view

- 8 fixed 2.8 mm lenses

- 4 MP PTZ with 5.2-210 mm lens

- 40x optical zoom

- AI Xinghan Large-Scale Models

- Face Detection

- Video Metadata

- Smart Tracking

- Crowd Density and Vehicle Density

- Boat Detection

- Built-in dual microphone

- Built-in dual speaker

- IR up to 150m

- Warm light up to 100 m

- PoE++ (802.3bt)

- MicroSD up to 1 TB

- IP67 and IK10 protection

Further details

Optics :
The camera integrates 8 fixed 2.8 mm lenses dedicated to panoramic vision with 360° coverage, combined with a PTZ camera with 5.2-210 mm varifocal lens and 40x optical zoom . This combination allows you to simultaneously monitor the entire area and acquire precise details even at great distances.
Resolution:
The panoramic system uses 8 x 2MP sensors that generate an overall resolution of up to 8192 × 1800 (16 MP) , while the PTZ module offers a resolution of up to 4 MP (2688 × 1520) , ensuring extremely detailed images for monitoring large areas and identifying subjects.
Xinghan Large-Scale AI Models-Vision :
The Xinghan AI platform leverages advanced deep learning algorithms and NPU processing power to simultaneously run multiple intelligent analyses. It improves human and vehicle recognition, optimizes crowding statistics, and increases analysis accuracy even in low-light conditions.
PTZ Camera:
The PTZ module features 40x optical zoom , 16x digital zoom , 360° endless pan rotation, up to 180° tilt, GIS (Gyroscope Image Stabilization) stabilization and Optical Defog function, ensuring clear images and precise target tracking.
Audio :
Equipped with built-in dual microphones and built-in dual speakers , the camera supports high-quality two-way audio communication and advanced environmental monitoring for more effective security event management.
Alarm :
Thanks to the 3 alarm inputs and 2 alarm outputs , the system manages intelligent events such as intrusion, line crossing, face detection, crowds, traffic congestion, abandoned objects, boat detection and video metadata , improving the timeliness of interventions.
Network Camera:
The IP camera supports advanced protocols such as IPv4, IPv6, RTSP, HTTPS, SNMP, P2P and ONVIF Profile S/G/T , ensuring full compatibility with NVR, VMS software and professional video surveillance platforms.
Functions:
It includes advanced technologies such as AR Panorama , Smart Tracking , Crowd Density Map , Vehicle Density , Boat Detection , Face Detection , Video Metadata , Perimeter Protection , Flexible Splicing and Smart Search , offering intelligent and centralized security management.
Doors :
The hardware features include RJ-45 Gigabit port , RS-485 , BNC video output , 2 audio inputs , 1 audio output , 3 alarm inputs and 2 alarm outputs , ensuring wide flexibility of integration with professional systems.
PoE :
PoE++ (IEEE 802.3bt) support allows the device to be powered and transmitted data over a single Ethernet cable, simplifying installation and reducing cabling costs even in the most complex infrastructures.

Technical data sheet

MODEL PSDW81652S-A360-D440
Room
Image Sensor Channel 1 (Panoramic): 1/1.8" CMOS
Channel 2 (PTZ): 1/1.8" CMOS
Max. Resolution Channel 1 (Panoramic): 8192 (H) × 1800 (V)
Channel 2 (PTZ): 2688 (H) × 1520 (V)
ROM Channel 1 (Panoramic): 8 GB
Channel 2 (PTZ): 4 GB
RAM Channel 1 (Panoramic): 4 GB
Channel 2 (PTZ): 4 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination Channel 1 (Panoramic): 0.0005 [email protected] (Color, 30 IRE); 0.0001 [email protected] (B/W, 30 IRE)
Channel 2 (PTZ): 0.001 [email protected] (Color, 30 IRE); 0.0001 lux @F1.6(B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Channel 1 (Panoramic): NA
Channel 2 (PTZ): Up to 150 m (492.13 ft)(IR); Up to 100 m (328.09 ft)(Warm light)
Illuminator On/Off Control Auto;Manual;Zoomprio
Illuminator Number Channel 1 (Panoramic): NA
Channel 2 (PTZ): 6 (Multi-core (IR + warm) light)
Angle Adjustment Pan: 0° to 360° ;
Tilt: –10° to 180°, auto flip 180°
Gradient Yes
Lens
Lens Type Channel 1 (Panoramic): Fixed-focal
Channel 2 (PTZ): vari-focal
Lens Mount Channel 1 (Panoramic): M16
Channel 2 (PTZ): Module
Focal Length Channel 1 (Panoramic): 2.8 mm
Channel 2 (PTZ): 5.2 mm–210 mm
Max. Openings Channel 1 (Panoramic): F1.0
Channel 2 (PTZ): F1.6–F5.0
Field of View Channel 1 (Panoramic): H: 360°; V: 105°
Channel 2 (PTZ): H: 60.8°–2.8°; V: 35.9°–1.7°; D: 67.7°–3.3°
Iris Control Channel 1 (Panoramic): Fixed
Channel 2 (PTZ): Auto
Close Focus Distance Channel 1 (Panoramic):1.4 m (4.59 ft)
Channel 2 (PTZ): 0.5 m (1.64 ft)
Intelligence
Intelligence Description Channel 1 (Panoramic): Perimeter protection, crowd distribution map (Large-Scale AI Models), vehicle density.
Channel 2 (PTZ): Perimeter protection, video metadata, face recognition
IVS (Perimeter Protection) Channel 1 (Panoramic): Tripwire; intrusion; parking detection
Channel 2 (PTZ): Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering
Face Detection Channel 1 (Panoramic): NA
Channel 2 (PTZ):
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Vehicle Density Channel 1 (Panoramic): Vehicle density; parking upper limit; traffic congestion; vehicle status alarm
Channel 2 (PTZ): NA
Crowd Distribution Map Channel 1 (Panoramic): Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people counting in area
Channel 2 (PTZ): NA
Video Metadata Channel 1 (Panoramic): NA
Channel 2 (PTZ):
Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264 +
Video Frame Rate Channel 1 (Panoramic):
Main stream: 8192 × 1800@(1–25/30 fps)
sub stream: 2048 × 452@(1–25/30 fps)
Third stream: 3840 × 832@(1–25/30 fps)
Channel 2 (PTZ):
Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 480@(1–25/30 fps)
Third stream: 1920 × 1080@(1-25/30fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 3 stream
Resolution Channel 1 (Panoramic):
8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900; 2048 × 452; 3840 × 832; 2560 × 560
Channel 2 (PTZ):
2688 × 1520; 2560 × 1440; 2304 × 1296; 1920 × 1080; 1280 × 960; 1280 × 720; 704 × 480; 640 × 480; 352 × 240
Bit Rate Control VBR; CBR
Video Bit Rate Channel 1 (Panoramic):
H.264: 96 kbps–32768 kbps
H.265: 38 kbps–25692 kbps
Channel 2 (PTZ):
H.264: 32 kbps–16384 kbps
H.265: 12 kbps–11008 kbps
Day/Night Channel 1 (Panoramic): NA
Channel 2 (PTZ): ICR
BLC Yes
HLC Yes
WDR Channel 1 (Panoramic): DWDR
Channel 2 (PTZ): 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Channel 1 (Panoramic): Yes (4 areas)
Channel 2 (PTZ): Yes (8 areas)
Image Stabilization Channel 1 (Panoramic): NA
Channel 2 (PTZ): Gyroscope Image Stabilization (GIS)
Defog Channel 1 (Panoramic): NA
Channel 2 (PTZ): Optical defog
Privacy Masking Channel 1 (Panoramic): 4 areas
Channel 2 (PTZ): 24 areas (8 for each preset)
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in dual speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default
Alarm
Alarm Event Channel 1 (Panoramic):
External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit
Channel 2 (PTZ):
Tripwire; intrusion; parking detection; crossing virtual fence; fast moving; abandoned object; missingobject; crowd gathering; loitering detection; face recognition; video metadata
Network
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Security WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Digests; IP/MAC filtering; HTTPS; Trusted upgrades; syslog;Trusted boot
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 400 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS; SMB
Browser IE: IE11; Chrome; Firefox
Management Software DSS Pro
Function
AR Function Yes
PTZ Dome
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –11° to 90°, auto flip 180°
Manual Speed Control Pan: 0°/s–360°/s
Tilt: 0°/s–150°/s
Presets 300
Preset Speed Pan: 0°/s–360°/s
Tilt: 0°/s–150°/s
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset/Pattern/Tour/Scan
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 2 channels (terminal)
Audio Output 1 channel (terminal)
Alarm Input 3 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC
Analog Output 1 channel (CVBS output: BNC)
Power Output 12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply 36 VDC (±50%); PoE++ (802.3bt)
Power Consumption Basic: 26.4 W (36 VDC);
Max. 67.8 W (36 VDC) (Basic power consumption + WDR + intelligence on +Speaker+Heater+ LED on + PTZ operation)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Strorage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity ≤95%
Protection IP67; IK10
Structure
Casing Material Metal + Plastic
Product Dimensions Φ280.0 mm × 368.0 mm (Φ11.02" × 14.49")
Net Weight 8.8 kg (19.40 lb)
Gross Weight 12.2 kg (26.90 lb)
