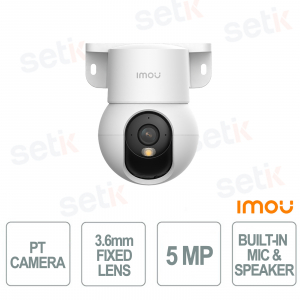

IPC-K2MP-5R1W-IMOU | The IMOU Ranger Mini 3K 5MP Wi-Fi camera with 3.6mm fixed lens offers 5MP/3K resolution images and complete coverage thanks to the 355° Pan & Tilt function, ideal for indoor surveillance. Human Detection , Smart Tracking and Auto-cruise technologies guarantee intelligent monitoring, while Smart Color Night Vision ensures clear images even in the dark. Equipped with Wi-Fi 6 , two-way audio , Privacy Mode and support for MicroSD up to 512 GB , Cloud and NVR, it represents a reliable and complete solution for home and professional security. Imou
Technical Data Sheet
IPC-K2MP-5R1W-IMOU | 5MP AI-Powered 3.6mm Fixed Lens Network Camera - 10m IR

The IMOU Ranger Mini 3K 5MP Wi-Fi camera with 3.6mm fixed lens offers advanced indoor surveillance thanks to 5MP/3K resolution and 355° Pan & Tilt function, which ensures complete coverage of the room. Human Detection , Smart Tracking , Auto-cruise and Smart Color Night Vision technologies ensure intelligent monitoring and clear images even in low light conditions. Equipped with Wi-Fi 6 , two-way audio , Privacy Mode and support for MicroSD up to 512 GB , Cloud and NVR, it represents a reliable solution for home and office security.
Main specifications:
- Resolution: 5MP/3K
- Lens: 3.6mm fixed
- Pan & Tilt: 355° rotation
- Artificial Intelligence: Human Detection and Smart Tracking
- Night Vision: Smart Color Night Vision
- Connectivity: Wi-Fi 6 and Ethernet
- Audio: Two-way
- Storage: MicroSD up to 512 GB, Cloud and NVR
- Privacy: Integrated Privacy Mode
Main features
✅ Fixed Optics:
The 3.6mm fixed lens with up to 108° viewing angle offers high indoor coverage, ensuring detailed images and precise monitoring of every area.
✅ Resolution:
The 5MP/3K (2688×1664) resolution ensures extremely high definition images, with sharp details and a quality superior to Full HD, ideal for recognising people and details with greater precision.
✅ PT Camera:
The Pan & Tilt function with rotation up to 355° and tilt up to 50° allows for almost complete coverage of the room, reducing blind spots and allowing remote control of the frame via app.
✅ Artificial Intelligence:
Human Detection and Smart Tracking technologies use Artificial Intelligence to recognize people and automatically follow moving subjects, improving tracking accuracy and limiting false alarms.
✅ Audio:
Two-way audio with built-in microphone and speaker allows you to communicate in real time with anyone in the monitored area directly from the IMOU app.
✅ Connectivity:
Wi-Fi 6 ensures more stable and efficient data transmission, while the presence of the 100 Mbps Ethernet port offers a reliable wired connection for professional installations.
✅ Integrated Siren:
The built-in siren represents an effective deterrent system, activating in the presence of suspicious events to discourage possible intrusions and increase the level of protection.
✅ Smart Color Night Vision:
Smart Color Night Vision technology with four night vision modes ensures clear, detailed images even in total darkness, automatically adapting to different surveillance needs.
Technical data sheet
| IPC-K2MP-5R1W-IMOU |
| Room |
| 1/3” Progressive CMOS |
| 5MP (2688 x 1664) |
| Night Vision: 10m(33ft) Distance |
| 2.8mm Fixed Lens |
| Field of View: 87°(H), 48°(V), 108°(D) |
| 355°Pan & -5~50°Tilt |
| Video & Audio |
| Video Compression: H.265/H.264 |
| Up to 20fps Frame Rate |
| 8 x Digital Zoom |
| Two-way Audio |
| Notice Management |
| Motion Detection |
| Human Detection |
| Configurable Region |
| Abnormal Sound Alarm |
| Network |
| 1 x 100Mbps Ethernet Port |
| Wi-Fi:IEEE802.11b/g/n,50m Open Field |
| Imou App: iOS, Android |
| onvif |
| Auxiliary Interface |
| Micro SD Card Slot (up to 512GB) |
| Built-in Mic & Speaker |
| Reset Button |
| General |
| DC 5V1A Power Supply |
| Power Consumption: < 4.2W |
| Working Environment:-10°C~+45°C, Less Than 95%RH |
| Dimensions 95.0 mm × 96.0 mm × 109.2mm (3.74 × 3.78 × 4.30 inch) |
| Weight: 200g (0.44lb) |
