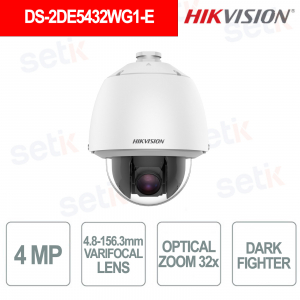

DS-2DE5432WG1-E - is a 4 MP PTZ Speed Dome IP camera with 1/2.8" Progressive Scan CMOS sensor and 4.8-153.6 mm motorized lens, equipped with 32x optical and 16x digital zoom for detailed monitoring of large areas. It integrates DarkFighter technology, HIK AI-ISP and intelligent functions with Face Capture and manual or automatic Smart Tracking . It offers 360° Pan movement, 120 dB WDR , H.265+ compression, 802.3at PoE support and microSD storage up to 256 GB . The IP66 and IK10 protected structure makes it suitable for professional video surveillance in outdoor and high-risk environments. Hikvision
DS-2DE5432WG1-E – 4.8-153.6mm 4MP VARIABLE LENS PTZ CAMERA - ARTIFICIAL INTELLIGENCE - DARKFIGHTER - 32x OPTICAL ZOOM

The Hikvision DS-2DE5432WG1-E is a 4 MP PTZ Speed Dome IP camera with 1/2.8" Progressive Scan CMOS sensor and 4.8-153.6 mm motorized lens, equipped with 32x optical and 16x digital zoom for detailed control of large areas. It integrates DarkFighter , HIK AI-ISP , Face Capture and manual or automatic Smart Tracking , with 120 dB WDR and H.265+ compression. It offers 360° Pan movement, 802.3at PoE power supply, microSD storage up to 256 GB and IP66 and IK10 protected structure, ideal for professional video surveillance in outdoor environments.
Main features:
- Resolution: 4 MP
- Optics: 4.8-153.6 mm
- Zoom: 32x optical
- DarkFighter: low light vision
- PTZ: Pan 360°
- AI: Face Capture
- Tracking: manual and automatic
- PoE: IEEE 802.3at
- Storage: microSD up to 256 GB
- Protection: IP66 + IK10
Further details
4.8-153.6mm motorized lens with F1.6 maximum aperture , 32x optical zoom and 16x digital zoom, designed to obtain detailed close-ups even of very distant subjects and effectively survey large areas.
1 /2.8" Progressive Scan CMOS sensor with maximum resolution of 4 MP (2560 × 1440) and frame rate of up to 30 fps , for smooth, detail-rich high-definition images.
The Speed Dome integrates HIK AI-ISP for effective noise reduction and intelligent technologies to optimize analysis, focus and image quality; it also supports combined use with AcuSeek and AcuSearch technologies of compatible Hikvision NVRs.
T Powered by DarkFighter technology developed to deliver clear images in low light conditions , with minimum sensitivity of 0.005 Lux in color and 0.001 Lux in black and white , supported by WDR 120 dB, 3D DNR, HLC and BLC.
Network Speed Dome PTZ camera with 360° continuous Pan rotation , Tilt from -5° to 90° with Auto Flip, preset Pan speed up to 300 °/s , 300 presets , 8 patrols and 4 pattern scans for dynamic control of large areas.
It has 1 audio input and 1 audio output , ambient noise filtering and support for G.711, G.722.1, G.726, MP2L2 and PCM codecs; it can also connect to compatible Hikvision network microphones and speakers .
It integrates 2 inputs and 1 alarm output and manages events such as motion detection, line crossing, intrusion, area entry/exit, unattended baggage, object removal and audio anomalies, with recording activation and PTZ actions.
It supports the intelligent Face Capture function, dedicated to the acquisition of faces within the scene and which can be integrated into the video surveillance system for more advanced event management.
It offers manual tracking and auto-tracking , allowing the PTZ camera to dynamically follow detected subjects and keep an eye on events as they move around the scene.
It supports IEEE 802.3at PoE power supply , allowing power and data to be transferred over the Ethernet network; 36 VDC and 24 VAC power supplies are also available , with a maximum power consumption of 20 W.
It integrates a 10/100 Mbps Ethernet RJ45 port and supports IPv4/IPv6, HTTP/HTTPS, RTSP, TCP/IP and numerous other protocols, as well as ONVIF Profile S, G and T , ISAPI, SDK, Hik-Connect, HikCentral Pro and iVMS-4200, with up to 20 simultaneous live views .
Technical data sheet
| DS-2DE5432WG1-E | |
| Room | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON) |
| Shutter Time | 1/3 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 32x optical, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 4.8 mm to 153.6 mm |
| FOV | Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view: 57.4° to 3° (wide-tele) |
| Focus | Auto, semi-auto, manual |
| Openings | Max. F1.6 |
| Zoom Speed | Approx. 4.8 s |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -5° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, anorama scan, dome reboot, dome adjust, auxiliary output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704×576, 640×480, 352×288) 60Hz: 30fps (704×480, 640×480, 352×240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
8 fixed regions for each stream |
| AI Encoding |
No |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View |
Up to 20 channels |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host |
Up to 32 users. |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Client |
iVMS-4200, HikCentral Pro, Hik-Connect |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Web Browser |
Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
| Image | |
| Image Parameters Switch |
Yes |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask |
24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus |
Yes |
| Regional Exposure |
Yes |
| VR View |
360° Real Scene Stitched Panoramic Image |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 2 inputs, 1 output |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function | |
| Face Capture | Yes |
| Linkage and Tracking | |
| Smart Tracking | Manual tracking, auto-tracking |
| General | |
| Power |
36 VDC, Max. 20 W |
| Dimension |
Ø 220 mm × 280 mm (Ø 8.66" × 11.02") |
| Weight |
Approx. 3.0 kg (6.61 lb.) |
| Material |
ADC 12, PC+ABS, PC/PMMA |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Demist |
Yes |
| Approval | |
| EMC | CE-EMC (EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection |
