HDCVI Camera Panoramic 180 ° 4K Multi-Sensor Dahua

-58%

Surveillance camera, HDCVI Panoramic Bullet up to 8MP 4K ULTRA HD , Multi Lens 3 1/2.8” 2Megapixel image sensors with Starlight technology, 3.6mm fixed lens. IR illuminator (20mt), long distance transmissions, WDR 120dB , Day/Night (ICR), OSD Menu, BLC, HLC, DWDR. 1 audio input, 2 inputs + 1 alarm output, IP67 and IK10 protection. Dahua Ultra Series HAC-PFW3601-A180

Reference: HAC-PFW3601-A180

Brand: Dahua

EAN: 8056450373715

https://www.setik.biz/en/cameras/2385-dahua-hac-pfw3601-a180-hdcvi-camera-panoramic-180-4k-multi-sensor-dahua.html

€722.48

€1,720.20 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

4K ULTRA HD MULTI-SENSOR 180° PANORAMIC HDCVI CAMERA - DAHUA SECURITY

HDCVI Panoramic Bullet Camera - Dahua
4K ULTRA HD 8MP Resolution - 3.6mm Fixed Lens - 3x 1/2.8” 2MPX CMOS Sensors
Starlight technology - IR illuminator 20MT - WDR 120dB - Audio and Alarm
IP67 and IK10 protection - Power supply NOT included - 24 months warranty

Product details

- HDCVI camera - Ultra Series - Dahua
- Type: Bullet Panoramic 180° Multi Lens up to 8MPX 4K ULTRA HD
- 3.6mm fixed lens
- 3x 1/2.8” 2Megapixel CMOS Image Sensors

- Starlight technology (color vision even at night)

- Long distance transmissions up to 500m with RG59 coaxial cable
- Functions: Day/Night(ICR), BLC / HLC / WDR / AGC

- Multilingual OSD menu

- 1 Audio Input (Jack)

- 2 Alarm Inputs + 1 Alarm Output
- Quality IR illuminator with a maximum range of 20 meters.

- 1 BNC HDCVI Panoramic Video Output + 3 BNC HDCVI 2Megapixel Individual Video Outputs

- IP67 protection (Dust/Immersion) and IK10 (Vandal acts)

- Power supply not included

- Compatible with PFA124-B bracket

- Suitable for indoor and outdoor environments
- 24 months warranty

Data sheet

Aluminum

model	HAC-PFW3601-A180
Room
Image Sensor	Three 1/2.8" 2MP STARVISTM CMOS
Effective Pixels	4K(3840x832)/4M(2560x554)
Scanning System	Progressives
Electronic shutter speed	PAL:1/4s~1/100,000s NTSC:1/3s~1/100,000s
Min Illumination	0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)
S/N Ratio	More than 65dB
IR Distance	20m
IR On/Off Control	Auto(ICR)/Color/B/W

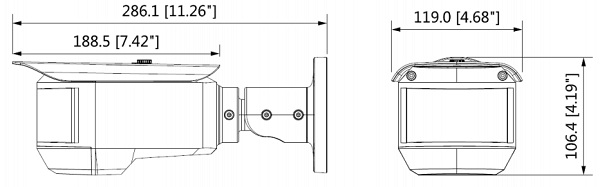

Dimensions	286mm x 119mm x 106mm(11.26"×4.68"×4.19")
Net Weight	2.05kg (4.5lb)
Gross Weight	2.43kg (5.36lb)

Further details

	HD-CVI is the new technology in the world of video surveillance. With the simple replacement of the devices (cameras and DVRs) in the analogue infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as in the IP world but with a high cost containment. Warning: Analog and IP cameras are NOT compatible with HD-CVI DVRs, and HD-CVI cameras are not compatible with Analog DVRs.
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. Resolution Max. 15fps@4K ,25fps@4M

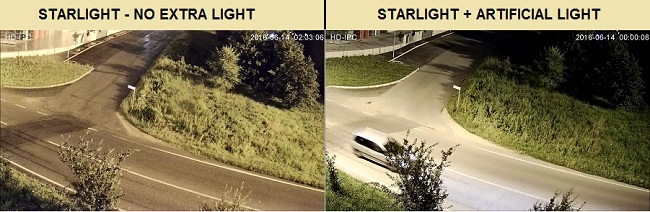

	This camera is equipped with 3 1/2.8" Exmor R CMOS sensors with STARLIGHT technology. Normally, when entering night mode, the color vision becomes black/white. With the SENSORS present, night shots will be in colour Below are two examples of night vision both in the presence of total darkness and in the presence of artificial lights
	This camera supports 180° PANORAMIC VIEW
	This camera features a 3.6mm fixed lens
	Infrared illuminator with REAL range up to 20M for night vision
	This camera is equipped with: 1 Video Output BNC HDCVI Overview 3 Individual and simultaneous HDCVI 2Megapixel BNC Video Outputs
	This camera has 2 inputs and 1 output
	This camera has 1 Audio input (JACK) Compatible with Setik Microphones MICS1 MICS2 MICS3
	Protection level IP67 ( Dust / Immersion )
	IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
	Allows you to adapt the lens to Night/Day vision
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations Click to enlarge
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
	This product is covered by a 24 month guarantee.
