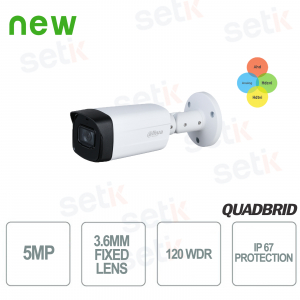

Dahua 5MP HDCVI Camera with 3.6mm Lens and 80m IR Range – IP67

Dahua 5MP HDCVI Camera with 3.6mm Lens and 80m IR Range – IP67
-58%

The HAC-HFW1500TH-I8-S2 is a 5MP HDCVI camera with a 3.6mm fixed lens that offers high-definition images (2592×1944) at 20fps, ideal for long-distance surveillance thanks to its 80m IR vision. Smart IR technology automatically adjusts nighttime illumination for uniform images. Thanks to HD/SD compatibility, a multilingual OSD menu, and IP67 protection, it is perfect for harsh outdoor environments, ensuring reliability and ease of installation even on older coaxial systems. Dahua

Technical Data Sheet

Reference: HAC-HFW1500TH-I8-S2

Brand: Dahua

EAN: 6939554966071

Disponibilità: 2

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HFW1500TH-I8-S2 | OUTDOOR CAMERA 4IN1 5MEGAPIXEL 3.6MM SMART IR 80MT


Dahua

The Dahua HAC-HFW1500TH-I8-S2 HDCVI bullet camera with 5MP sensor and 3.6mm fixed lens ensures clear, detailed images in any lighting conditions, thanks to Smart IR technology with a range of up to 80m. Its compact design, HD/SD compatibility and IP67 protection make it ideal for outdoor video surveillance systems, even in extreme weather conditions .

Main specifications:

- 5MP resolution (2592×1944) at 20fps

- 3.6 mm fixed lens – 101° diagonal viewing angle

- Smart IR illumination – night vision up to 80 meters

- Switchable HD/SD video output (CVI/TVI/AHD/CVBS)

- Multilingual OSD with advanced settings (D/N, WDR, BLC, privacy mask)

- IP67 protection, operation from -40°C to +60°C

- Power supply 12V DC, maximum consumption 5.1W

Further details

5MP resolution (2592 × 1944 pixels):
The camera uses a 1/2.7" CMOS sensor capable of providing 5 megapixel high-definition images, with a maximum frame rate of 20fps. This ensures high video quality, ideal for detailed monitoring of critical areas, such as entrances, perimeters or warehouses.
Optics :
The 3.6mm lens offers a 101° diagonal, 77.5° horizontal, and 56.5° vertical viewing angle, making it ideal for monitoring medium-sized spaces. The fixed focus lens has a minimum detection distance of 1.4 meters, simplifying installation and reducing manual adjustments.
4 signals on 1 coaxial cable :
Thanks to HDCVI technology, the camera can simultaneously transmit video, audio, data, and power over a single coaxial cable. This reduces installation costs and facilitates integration with HCVR video recorders. It also includes two-way communication for remote control and PoC (Power over Coax) compatibility.

Switchable HD/SD video output:
The camera is compatible with both HD (HDCVI) and analog (CVBS) recorders, with switching via OSD menu or UTC controller. This feature is perfect for gradual upgrades of existing systems, maintaining full compatibility with older DVRs during the transition phases.
Detailed diagram with dimensions of the HAC-HFW1500TH-I8 camera

Technical data sheet

Model

HAC-HFW1500TH-I8-S2

Room
Image Sensor 1/2.7" CMOS
Effective Pixels 2592 (H) × 1944 (V), 5MP
Electronic Shutter Speed

PAL: 1/25s–1/100000s

NTSC: 1/30s–1/100000s

Min. Illumination

0.02Lux/F1.85, 30IRE, 0Lux IR on

IR Distance Distance up to 80 m (262.46 ft)
IR On/Off Control Auto; manual
IR LEDs 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm
Angle of view 101° × 77.5° × 56.5°
Iris Type Fixed iris
Min Photographic Distance 1.4 m/2.8 m/4.5 m (4.59 ft/9.18 ft/14.76 ft)
Video
Video Frame Rate

CVI: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
AHD: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
TVI: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
CVBS: 960H

Resolution 5MP (2592 × 1944); 4MP (2560×1440); 1080P (1920×1080); 960H (960 ×576/960 ×480)
Day/Night Auto switch by ICR
BLC Mode BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Noise reduction 2D
White balance Auto / Manual
Gain Control Auto / Manual
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certification
Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V±30% DC
Power consumption Max 5.1W (12V DC, IR on)
Environment
Operating Conditions

-40°C to +60°C (-40°F to +140°F);
<95% (non-condensation)

Strorage Conditions -40°C to +60°C (-40°F to +140°F);
<95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal front face + plastic main body + metal bracket
Dimensions 240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")
Net Weight 410 g (0.90 lb)
Gross Weight

616 g (1.36 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
