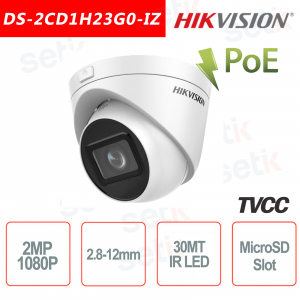

Hikvision DS-2CD1H23G0-IZ IP PoE ONVIF outdoor camera Turret Camera 2MP FULL-HD 1080P , 2.8-12mm Varifocal lens, 1 / 2.7 "CMOS sensor, H.265 + . Day & Night (ICR), 30M IR illuminator, Micro SD slot ( UP TO 128GB - NOT INCLUDED ) Dual Stream, ROI, DWDR, BLC, 3D DNR, AGC, Motion Detection, Connection to Hik-connect, reset button, IP67 protection, metal and plastic

Reference: DS-2CD1H23G0-IZ

Brand: Hikvision

EAN: 6954273667122

€135.42

€451.40 -70%
taxes included
Tax included
  Available
discover the available quantity



DS-2CD1H23G0-IZ | HIKVISION IP POE 2.0 MP 2.8MM-12MM OUTDOOR CAMERA ONVIF® H.265 IR 30 METERS TURRET

Made by Hikvision Outdoor Turret Hikvision IP PoE camera
Resolution: 2.0 MP 2MP 1080P FULL-HD 2Megapixel - 2.8 mm - 12 mm Varifocal lens - 1 / 2.7 "CMOS sensor - H.265 +
30M IR Illuminator - Day / Night (ICR) - Digital WDR - AGC -BLC - 3D DNR - Motion Detection - Dual Stream
Power supply NOT included - MicroSD slot (not included) - 24 month warranty
DS-2CD1H23G0-IZ_BANNER

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265 + and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, among them the EASY IP SERIES , born from version 1.0, up to version 4.0. The main features of the most significant EASY IP SERIES are shown below.

The DS-2CD1H23G0-IZ camera has EASY IP 1.0+ version

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. DO NOT be Onvif, it means having a camera in itself which can never be used together with recording systems.
POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Resolution:
This camera features 2.0 MP 2MP 1080P FULL-HD resolution in real time! (1920x1080pixel) at 25fps
1 / 2.7 ”2Megapixel progressive scan CMOS image sensor
Optics:
This camera has 2.8 - 12 mm Varifocal lens
Compression H.265 +


What is H.265 +?

An intelligent algorithm self-developed by Hikvision that can significantly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces the transmission bandwidth and storage capacity required without impacting its video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows greater use of ultra HD surveillance cameras, such as 8 MP and 12 MP cameras.

Infrared IR illuminator:
Infrared IR illuminator for better night vision. Range up to 30M

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and record a greater number of days or cameras.
ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plaque usually passes, an exit, etc.). In that area I can set a higher quality thus ensuring a better definition of the image.
Ultra Smart Funzione ROI
Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

128GB Micro SD slot ( NOT INCLUDED )

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex as possible, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the most powerful WDR integrated in the DSP, exactly as it is for digital zoom compared to Optical Zoom, is a software simulation emulation of WDR technology, however extremely useful in circumstances of strong contrast.

3D- DNR:
More advanced version of NOISE REDUCTION management. It allows still images both in low light and in motion. The currently most powerful solution for obtaining maximum results in low light conditions.

Supply:
A 12V DC power supply is needed to operate this camera (not included)
IP67 protection:
Protection from dust and temporary immersions. Suitable for outdoor environments.
Also equipped with TVS 2000V lightning protection

Data sheet

D S-2CD1H23G0-IZ
Room
Image Sensor 1 / 2.7 "progressive scan CMOS
Min Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR cut filter

Digital Noise Reduction

3D DNR

WDR

Digital WDR

Angle Adjustment

Pan: 0 ° to 360 °, Olt: 0 ° to 75 °, rotate: 0 ° to 360 °

Lens
Focal Length 2.8 to 12 mm
Openings F1.6
Focus NO
FOV Horizontal FOV 108.5 ° to 33.2 °, verOcal FOV 57.5 ° to 18.8 °, diagonal FOV 130 ° to 38 °
Lens Mount Φ14
IR
IR Range

Up to 30 m

Wavelength

850 nm

Standard Compression
Video Compression

Main stream: H.265 / H.264 Sub stream: H.265 / H.264 / MJPEG

H.264 Type Baseline Profile / Main Profile / High Profile
H.264 + Main stream supports
H.265 Type Main Profile
H.265 + Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest: 1 fixed region for main stream and sub-stream
Max. Resolution 1920 × 1080
Main Stream Max.
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max.
Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Senngs Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client sonware or web browser
Day / Night Switch Auto, scheduled, day, night
Network
Network Storage Support built-in microSD / SDHC / SDXC card (128G), local storage and NAS (NFS, SMB / CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Protocols TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, heartbeat, mirror, password protecOon, privacy mask, watermark, IP address filter
Firmware Version 05/05/52
API ONVIF® (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User / Host Up to 32 users 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web browser IE8 +, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communicate [on Interface 1 RJ45 10M / 100M self-adap [ve Ethernet port
On-board Storage Built-in microSD / SDHC / SDXC slot, up to 128 GB
Reset Button Yes
General
Operatng Conditions -30 ° C to 60 ° C (-22 ° F to 140 ° F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.9 A, Max: 10.5 W PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W
Protection Level IP67
Material Camera body: metal, boYom base: plasOc
Dimensions Chamber: Ø 129.4 mm × 116.4 mm (5.1 "× 4.6") With package: 170 mm × 170 mm × 150 mm (6.7 "× 6.7" × 5.9 ")
Weight Chamber: 560 g (1.2 lb.) With package: 850g (1.9 lb.)

Further details

DS-2CD1H23G0-IZ

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
