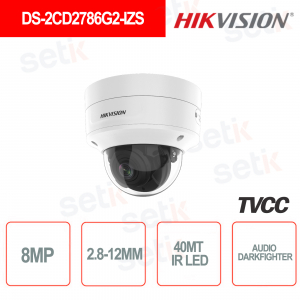

Hikvision DS-2CD2786G2-IZS IP PoE ONVIF outdoor camera 8MP Dome Camera, 2.8-12mm Varifocal Lens, 1 / 1.8 "CMOS sensor, H.265 + . Day & Night (ICR), IR illuminator 40M, DARKFIGHTER (STARLIGHT) , Audio , Micro SD slot ( UP TO 256GB - NOT INCLUDED), Triple Stream, Video Analis i, Face Detection , ROI, WDR 120dB, BLC, HLC, 3D DNR, AGC, Motion Detection, Connection to Hik-connect, reset button, IP66 protection and IK10, metal
discover the available quantity
DS-2CD2786G2-IZS | HIKVISION IP ONVIF® POE 8 MP 2.8MM-12MM OUTDOOR CAMERA ONVIF® H.265 + IR 40 METERS AUDIO DOME
DOME Hikvision IP PoE outdoor cameraResolution: 8.0MP 8MP 8Megapixel - Varifocal lens 2.8 mm - 12 mm - 1 / 1.8 "CMOS sensor - H.265 +
IR Illuminator 40M - Day / Night (ICR) - WDR 120dB - AGC -BLC - HLC - 3D DNR - Motion Detection - Triple Stream - AUDIO
Face Detection - Video Analysis
Power supply NOT included - 256GB MicroSD slot (not included) - 24 month warranty
|
|
| ONVIF®: Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
| POE (Power Over Ethernet): The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
| Resolution: This camera has a resolution of 8 MP (3840 x 2160) 1 / 1.8 ”2Megapixel progressive scan CMOS image sensor |
| Optics: This camera features 2.8 - 12 mm Varifocal lens |
Compression H.265 +
A self-developed intelligent algorithm by Hikvision that can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
|
IR Infrared Illuminator: |
|
HIK-CONNECT Hik Connect allows you to control the device remotely
|
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
|
MICRO SD SLOT: 256GB Micro SD slot ( NOT INCLUDED ) |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
| ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
|
3D- DNR: |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP66 protection: Protection from dust and temporary immersions. Suitable for outdoor environments. |
|
IK10: IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism |
Data sheet
| DS-2CD2786G2-IZS (2.8-12mm) | |
| Room | |
| Image Sensor | 1 / 1.8 "progressive scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 / 3s to 1 / 100,000s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 ° to 355 °, tilt: 0 ° to 75 °, rotate: 0 ° to 355 ° |
| Power-off Memory | Yes |
| Lens | |
| Focus | Car |
| Lens Type & FOV | 2.8 to 12 mm, horizontal FOV 108 ° to 45 °, vertical FOV 58 ° to 25 °, diagonal FOV 127 ° to 52 ° |
| Openings | F1.4 |
| Lens Mount | Φ14 |
| Illuminator | |
| IR Range |
Up to 40 m |
| Wavelength |
850nm |
| Smart Supplement Light |
Yes |
| Video | |
| Max. Resolution |
3840 × 2160 |
| Main Stream |
50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265 + / H.264 + / H.265 / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Stream Type | Main stream / sub-stream / third stream |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 1 fixed region for each stream |
| Audio | |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 |
| Audio Bit Rate | 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32-192Kbps (MP2L2) / 8Kbps320Kbps (MP3) |
| Audio Type | Mono sound |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF® (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL / TLS |
| Smooth Streaming | Yes |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP / HTTPS, WSSE and digest authentication for ONVIF®, TLS 1.2 |
| Network Storage | MicroSD / SDHC / SDXC card (256 GB), local storage and NAS (NFS, SMB / CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8 +, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Free live view plug-in: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Day / Night Switch | Day / Night / Auto / Schedule / Triggered by Alarm In |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A, 24 VAC, 1 A) |
| Audio | 1 input (line in), 3.5 mm three-connector, 1 output (line out), 3.5 mm three-connector |
| On-board Storage | Built-in micro SD slot, up to 256GB |
| Hardware Reset | Yes |
| Communication Interface | 10M / 100M self-adaptive Ethernet port |
| Smart Feature-Set | |
| Premier Protection | Intrusion detection, line crossing detection, region entrance detection, region exiting detection (Human & Vehicle classification) |
| Face Capture | Yes |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
| General | |
| Web Client Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Mirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat |
| Software Reset | Yes |
| Linkage Method | Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
| Storage Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F), humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 ° C to 60 ° C (-22 ° F to 140 ° F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, two-core terminal block; PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.9 A, max. 10.8 W PoE: (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W |
| Power Interface | 2-core terminal block |
| Material | Metal |
| Dimension room | Φ153.5 × 133.2 mm (Φ6 ″ × 5.2 ″) |
| Package Dimension | 244 × 174 × 173 mm (9.6 "× 6.9" × 6.8 ") |
| Camera Weight | 1080 g (2.4 lb.) |
| With Package Weight | 1671 g (3.7 lb.) |
| Approval | |
| Protection | Ingress protection: IP66 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS / NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950- 1: 2005 + Am 1: 2009 + Am 2: 2013); BIS (IS 13252 (Part 1): 2010 + A1: 2013 + A2: 2015); LOA (IEC / EN 60950-1) |
| Environment | CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No 1907/2006) |
