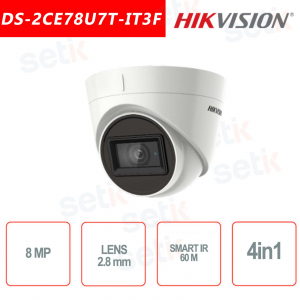

Hikvision Turret Camera 8MP 4in1

Hikvision Turret Camera 8MP 4in1
CERCHI ASSISTENZA O UN INSTALLATORE?
-35%

Hikvision DS-2CE78U7T-IT3F (2.8mm) 8MP CMOS Turbo HD TVI 4in1 (TVI / AHD / CVI / CVBS) Turret camera 8Megapixel, 2.8mm fixed lens, 8.29MP CMOS sensor, EXIR 2.0 illuminator up to 60M with EXIR 2.0 Technology, Supports 3D Digital noise reduction, BLC, Smart IR, WDR 130dB, Up to Coax data with HIKVISON-C. Power supply 12Vdc 4.2W, operating temperature from -40 ° C to + 60 ° C. IP67 protection


HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!




Reference: DS-2CE78U7T-IT3F(2.8mm)

Brand: Hikvision

EAN: 6954273683535

€137.98

€212.28 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%




DS-2CE78U7T-IT3F (2.8mm) | HIKVISION 8MP TURRET CAMERA 4IN1 TURBO HD TVI 2.8MM

Made by Hikvision
Hikvision 4IN1 Camera (TVI / AHD / CVI / ANALOG) IP67
Resolution: 8Megapixel - 2.8mm fixed lens - CMOS sensor
60M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - SMART IR - WDR 130dB - IP67 protection
Power supply NOT included - 24 months warranty
DS-2CE78U7T-IT3F_BANNER

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

Resolution:
This camera has a resolution of 3840x2160 FULL-HD
High performance CMOS sensor of 8.29 megapixels
Optics:
This camera features 2.8mm fixed lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 60M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the object framed.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with the EXIR cameras, even more so in the flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entrances or exits from car parks, Plaques, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 protection (dust / diving). Suitable for outdoor environments.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

Technical data sheet

DS-2CE78U7T-IT3F (2.8mm)
Room
Image Sensor 8.29 MP CMOS
Signal System PAL / NTSC
Video Frame Rate

TVI: 8MP@12.5fps, 8MP @ 15fps, 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 1080P @ 25fps, 1080P @ 30fps

AHD: 8MP@12.5fps, 8MP @ 15fps

CVI: 8MP@12.5fps, 8MP @ 15fps

CVBS: P / N

Resolution 3840 (H) × 2160 (V)
Min. Illumination 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shuder Time

PAL: 1 / 12.5 s to 1 / 50,000 s

NTSC: 1/15 s to 1 / 50,000 s

Lens 2.8 mm
Horizontal Field of View 102 °
Lens Mount M16
Day & Night ICR
Angle Adjustment (Bracket) Pan: 0 ° to 360 °, Tilt: 0 ° to 75 °, Rotate: 0 ° to 360 °
Menu
Image Mode STD / HIGH-SAT
AGC Yes
Day / Night Mode Auto / Color / BW (Black and White)
White Balance Auto / Manual
AE (Auto Exposure) Mode Global / BLC / HLC / WDR
Noise Reduction 3D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output

Switchable TVI / AHD / CVI / CVBS

General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

* You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 4.2 W

Protection Level IP67
Material

Enclosure: Plastic

Main body: Metal

IR Range Up to 60 m
Communication HIKVISION-C

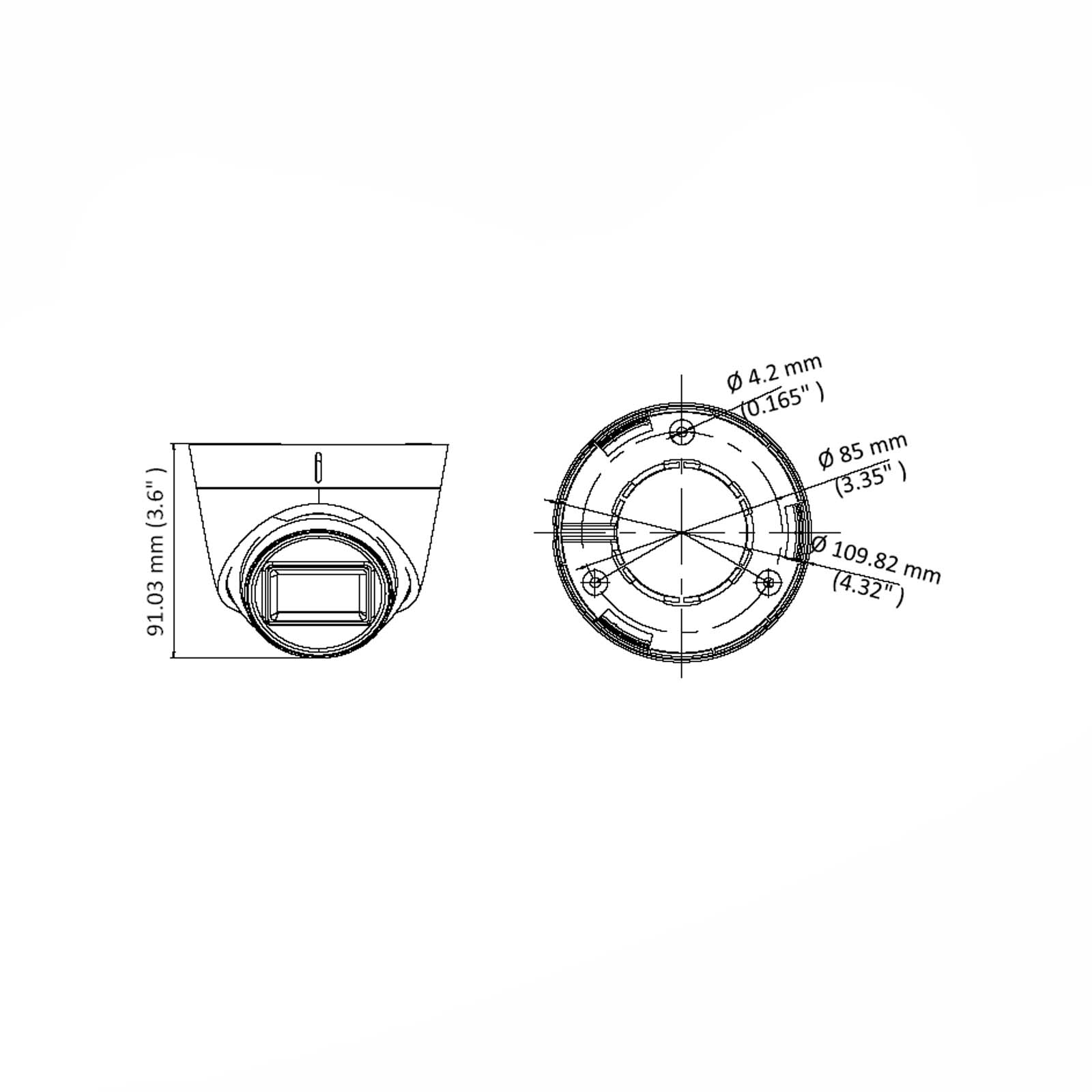

Dimensions Φ 109.82 mm × 91.03 mm (Φ 4.32 "× 3.6")
Weight Approx. 325 g (0.72 lb.)

Further details

DS-2CE78U7T-IT3F

Download

Download the English brochure
