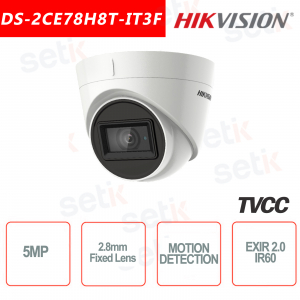

HIKVISION IR60 turret camera 5MP Motion Detection

-35%

Hikvision DS-2CE78H8T-IT3F 5MP CMOS Turbo HD TVI 4in1 (TVI / AHD / CVI / CVBS) Turret outdoor camera 5Megapixel turret camera, 2.8mm fixed lens, 5.0MP CMOS sensor, EXIR 2.0 illuminator up to 60M with EXIR 2.0 Technology, Supports 3D Digital noise reduction, BLC, Smart IR, Motion detection, Privacy mask WDR 130dB, data via coaxial with HIKVISON-C. TVI / AHD / CVI / CVBS video output, 12VDC power supply, operating temperature -40 ° C to + 60 ° C - IP67

HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!

Reference: DS-2CE78H8T-IT3F

Brand: Hikvision

EAN: 6954273669607

https://www.setik.biz/en/cameras/6069-hikvision-ds-2ce78h8t-it3f-hikvision-ir60-turret-camera-5mp-motion-detection.html

€133.22

€204.96 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-2CE78H8T-IT3F | HIKVISION 5MP TURRET CAMERA 4IN1 TURBO HD TVI 2.8MM

Hikvision 4IN1 (TVI / AHD / CVI / ANALOG) camera for outdoor IP67
Resolution: 5 MP 5Megapixel - 2.8mm fixed lens - CMOS sensor
60M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - SMART IR - WDR 130dB - IP67 protection - Motion detection - Privacy Mask
Power supply NOT included - 24 months warranty

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .

Resolution:
This camera has a resolution of 2560 (H) × 1944 (V)
High performance CMOS sensor of 5 megapixels

Optics:
This camera features 2.8mm fixed lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 60M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
Having the IR LEDs positioned separately from the camera lens, the possible internal reflections of the IR and IR Bleeding are completely eliminated, a serious problem on turret cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

Motion detection:

This camera provides VIDEO ANALYSIS and PRIVACY FUNCTION functions:
- Detect motion in 4 programmable areas
- Privacy Mask in 4 programmable areas

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

3D-DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR (Wide Dynamic Range):
It is the professional solution in cases where you have to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE78H8T-IT3F
Room
Image Sensor	5.0 megapixel progressive scan CMOS
Signal System	PAL / NTSC
Video Frame Rate	TVI: 2 MP @ 25fps, 2 MP @ 30fps, 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps AHD: 4MP @ 25fps, 4MP @ 30fps, 5MP @ 20fps CVI: 4 MP @ 25fps, 4 MP @ 30fps CVBS: PAL, NTSC
Resolution	2560 (H) × 1944 (V)
Min. Illumination	0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shuder Time	PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Lens	2.8 mm
Horizontal Field of View	98 °
Lens Mount	M12
Day & Night	IR cut filter
Angle Adjustment	Pan: 0 ° to 360 °, Tilt: 0 ° to 75 °, Rotation: 0 ° to 360 °
WDR (Wide Dynamic Range)	Yes, 130 dB
Menu
AGC	Yes
D / N Mode	Auto / Color / BW (Black and White)
Image Setting	Brightness, Sharpness, 3D DNR, Mirror, Smart IR
White Balance	Auto / Manual
Image Enhancement	BLC
3D DNR	Level 1 to 9
Language	English
Interface
Video Output	Switchable TVI / AHD / CVI / CVBS
General
Operating Conditions	-40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensing Aon)
Power Supply	12V DC ± 25%
Power Consumption	Max. 5.8 W
Protection level	IP67
Material	Enclosure: Plastic Main body: Metal
IR Range	Up to 60 m
Communication	Ø 109.82 mm × 91.03 mm (Ø 4.32 "× 3.6")
Weight	Approx. 310 g (0.68 lb.)
