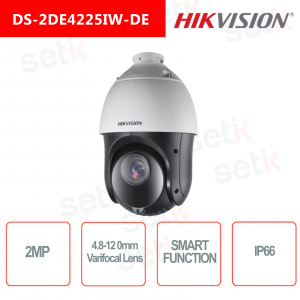

Dome Camera Hikvision2MP 4.8-120mm Darkfighter Onvif PoE ir

-58%

Hikvision DS-2DE4225IW-DE IP PoE ONVIF Outdoor Camera 2MP Dome Camera, 4.8-120mm Varifocal Lens, 1 / 2.8 "CMOS sensor, H.265 + . Day & Night (ICR), 100M IR illuminator, DARKFIGHTER (STARLIGHT) , Micro Slot SD ( UP TO 256GB - NOT INCLUDED), 1x input + 1x audio output, Triple Stream, Video Analis i, Motion Detection , ROI, WDR 120dB, BLC, 3D DNR, AGC,, Connection to Hik-connect, IP66 protection, Alloy Aluminum

Reference: DS-2DE4225IW-DE

Brand: Hikvision

EAN: 6941264054023

https://www.setik.biz/en/cameras/6108-hikvision-ds-2de4225iw-de-dome-camera-hikvision2mp-48-120mm-darkfighter-onvif-poe-ir.html

€583.62

€1,389.58 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-2DE4225IW-DE | HIKVISION IP ONVIF® POE 2MP 4.8MM-120MM OUTDOOR CAMERA H.265 + IR 100 METERS DOME

Hikvision IP PoE outdoor camera SPEED DOME
Resolution: 2.0 MP 2MP 2Megapixel - DarkFighter (Starlight) - Varifocal lens 4.8 mm - 120 mm - 1 / 2.8 "CMOS sensor - H.265 +
100M IR Illuminator - Day / Night (ICR) - 1x input + 1x audio output - WDR 120dB - AGC -BLC - 3D DNR - Motion Detection - Triple Stream - AUDIO
Power supply NOT included - 256GB MicroSD slot (not included) - 24 month warranty

DarkFighter Technology:
Darkfighter technology allows color shooting even with very low brightness, thus avoiding switching to black and white vision. A benefit of no small importance for the Local Police, often called upon to "decipher" images that are not very clear and in black and white.

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

POE (Power Over Ethernet):
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Resolution:
This camera features 2MP 2Megapixel resolution in real time! (1920 x 1080)
1 / 2.8 ”2Megapixel progressive scan CMOS image sensor

Optics:
This camera features a 4 .8 - 120 mm Varifocal lens

Compression H.265 +

What is H.265 +?

A self-developed intelligent algorithm by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction encoding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 100M

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing me a greater definition of the image.
Ultra Smart Funzione ROI

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

Smart features:

This camera has several smart features:
- Intrusion
- line crossing
- movement of objects
- abandoned baggage

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR (Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

3D- DNR:
More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

Supply:
A 12V DC power supply is required for the operation of this camera (not included)

IP66 protection:
Protection from dust and temporary immersions. Suitable for outdoor environments.

Data sheet

DS-2DE4225IW-DE
Camera Module
Image Sensor	1 / 2.8 "progressive scan CMOS
Min Illumination	Color: 0.005 Lux @ (F1.6, AGC ON) B / W: 0.001 Lux @ (F1.6, AGC ON) 0 Lux with IR
White Balance	Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp
Gain	Auto / Manual
Shutter Time	1 to 1 / 30,000 s
Day & Night	IR Cut Filter
Digital Zoom	16 ×
Privacy Mask	24 programmable privacy masks
Focus Mode	Auto / Semi-automatic / Manual
WDR	120 dB WDR
Lens
Focal Length	4.8 mm to 120 mm, 25 × optical zoom
Zoom Speed	Approx. 3.2 s (optical lens, wide-tele)
Field of View	Horizontal field of view: 57.6 ° to 2.5 ° (wide-tele) Vertical field of view: 34.4 ° to 1.4 ° (wide-tele) Diagonal field of view: 64.5 ° to 2.9 ° (wide-tele)
Working Distance	10 mm to 1500 mm (wide-tele)
Aperture Range	F1.6 to F3.5
PTZ
Movement Range (Pan)	360 ° endless
Pan Speed	Configurable, from 0.1 ° / s to 80 ° / s, Preset speed: 80 ° / s
Movement Range (Tilt)	From -15 ° to 90 ° (auto-flip)
Tilt Speed	Configurable, from 0.1 ° / s to 80 ° / s Preset Speed: 80 ° / s
Proportional Zoom	Yes
Presets	300
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Yes
Park Action	Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan
3D Positioning	Yes
Preset Freezing	Yes
Scheduled Task	Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output
Compression Standard
Video Compression	Main Stream: H.265 + / H.265 / H.264 + / H.264 Sub-stream: H.265 / H.264 / MJPEG Third Stream: H.265 / H.264 / MJPEG
H.264 Type	Baseline profile / main profile / high profile
H.265 Type	Main Profile
H.265 +	Yes
Video Bit Rate	32 Kbps to 16384 Kbps
Audio Compression	G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM
Smart Feature-set
Smart Event	Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception
Smart Record	ANR (Automatic Network Replenishment), Dual-VCA
Region of Interest	Main stream, sub-stream, and third stream respectively support four fixed areas.
IR
IR Distance	100 m
Smart IR	Yes
Max. Resolution	1920 x 1080
Main Stream	0Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720)
Sub-stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement	HLC / BLC / 3D DNR / Defog / EIS / Regional Exposure / Regional Focus
Network
Network Storage	Built-in memory card slot, support microSD / SDHC / SDXC, up to 256GB; NAS (NFS, SMB / CIFS), ANR
Protocols	IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API	ONVIF® (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View	Up to 20 channels
User / Host	Up to 32 users. 3 user levels, administrator, operator and user
Security Measures	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser	IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Audio	1-ch audio input and 1-ch audio output
Alarm	2-ch alarm input and 2-ch alarm output
Network Interface	1 RJ45 10M / 100M Ethernet, PoE (802.3at, class4)
General
Power	12 VDC and PoE + (802.3 at, class4) Max .: 18 W, including max. 7W for IR
Working Environment	Temperature: -30 ° C to 65 ° C (-22 ° F to 149 ° F), humidity:? 90%
Protection Level	IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	ADC 12, PC, PC + 10% GF
Dimension	Φ 164.5 mm × 290 mm (Φ 6.48 "× 11.42")
Weight	Approx. 2 kg (4.41 lb)
