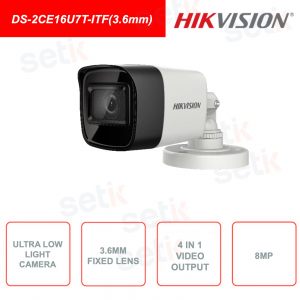

DS-2CE16U7T-ITF (3.6mm) - Ultra Low Light Camera 8MP - 4in1 4in1 TVI / AHD / CVI / CVBS - 3.6mm Lens - IP67

-58%

HIKVISION Camera - DS-2CE16U7T-ITF (3.6mm) - 8MP 4K UHD Ultra HD - True WDR 130dB - 4in1 (TVI / AHD / CVI / CVBS switchable output) - 3.6mm fixed lens - CMOS 8.29MP - ICR - Signal system PAL / NTSC - Manual and automatic white balance - Made of metal - IP67 protection - Ideal for setting up video surveillance systems operating in low light environments.

HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!

Reference: DS-2CE16U7T-ITF(3.6mm)

Brand: Hikvision

https://www.setik.biz/en/cameras/6441-hikvision-ds-2ce16u7t-itf36mm-ds-2ce16u7t-itf-36mm-ultra-low-light-camera-8mp-4in1-4in1-tvi-ahd-cvi-cvbs-36mm-lens-ip67.html

€88.65

€211.06 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-2CE16U7T-ITF (3.6mm) | HIKVISION 8MP ULTRA LOW LIGHT CAMERA - 4IN1 - 3.6MM LENS - IP67 PROTECTION

Hikvision Camera - DS-2CE16U7T-ITF (3.6mm) - Ultra Low Light - 4IN1 (TVI / AHD / CVI / ANALOG) - 8MP -
Resolution: 8 MP 8Megapixels - 3.6mm fixed lens - 8.29MP CMOS sensor - True WDR 130dB - Mirror Mode - Smart IR illuminator up to 30M - 3D DNR Digital Noise Reduction - Day / Night (ICR) - AGC - BLC - HLC - Smart IR - Protection of the device from dust and immersion IP67 - Operating temperature: -40 + 60 ° C - Metal body - Dimensions: 58 mm × 61 mm × 158.6 mm - Net weight: 345g - Ideal for video surveillance systems - NO power supply included - 24 months warranty - HIKVISION - DS-2CE16U7T-ITF (3.6mm)

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

Resolution:
This camera features a resolution of 8MP
8.29MP high performance CMOS sensor

Optics:
This camera features a fixed 3.6mm lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 30m

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

True WDR 130dB (Digital Wide Dynamic Range):
It is a Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. This feature makes it suitable for outdoor use.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

Model	DS-2CE16U7T-ITF (3.6mm)
Room
Image Sensor	8.29 MP CMOS
Signal System	PAL / NTSC
Frame Rate	TVI: 8MP@12.5fps, 8MP @ 15fps, 5MP @ 20fps, 4MP @ 25fps, 4MP @ 30fps, 1080P @ 25fps, 1080P @ 30fps AHD: 8MP@12.5fps, 8MP @ 15fps CVI: 8MP@12.5fps, 8MP @ 15fps CVBS: P / N
Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1 / 12.5 s to 1 / 50,000 s NTSC: 1/15 s to 1 / 50,000 s
Lens	3.6 mm
Horizontal Field of View	102 ° (2.8 mm), 79 ° (3.6 mm), 51 ° (6 mm)
Lens Mount	M16
Day & Night	ICR
WDR (Wide Dynamic Range)	≥130 dB
Angle Adjustment (Bracket)	Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 °
Menu
Image Mode	STD / HIGH-SAT
AGC	Yes
Day / Night Mode	Auto / Color / BW (Black and White)
White Balance	Auto / Manual
AE (Auto Exposure) Mode	Global / BLC / HLC / WDR
Noise Reduction	3D DNR
Language	English
Functions	Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output	Switchable TVI / AHD / CVI / CVBS
General
Operating Conditions	-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing)
Power Supply	12 VDC ± 25% * You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 4.2 W
Protection Level	IP67
Material	Metal
IR Range	Up to 30 m
Communication	HIKVISION-C
Dimensions	58 mm × 61 mm × 158.6 mm (2.28 "× 2.40" × 6.42 ")
Weight	Approx. 345 g (0.76 lb.)
