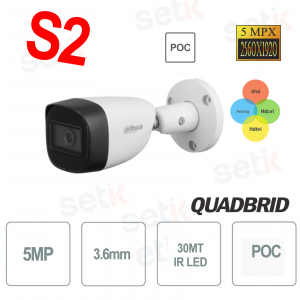

Dahua outdoor camera HAC-HFW1500CM-A-POC-S2 S2 5MP 5 Megapixel version with 4 technologies in 1: HDCVI / HDTVI / AHD / Analog Switchable , 3.6mm fixed lens and 1 / 2.7 "CMOS sensor. 30MT Smart IR LED illuminator, Day / Night (ICR), BLC, HLC, DWDR, IP67 protection, multilingual OSD menu, PoC power supply (only CVI) / 12V, Dahua Technology. S2 version
€66.61
€158.60 -58%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA OUTDOOR CAMERA 4IN1 5MEGAPIXEL 3.6MM - INTEGRATED MICROPHONE - S2 VERSION - DAHUA
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG Switchable
5Megapixel resolution - 3.6mm fixed lens - 1 / 2.7 "CMOS sensor
Smart IR LED 30MT - Day / Night (ICR), PoC power supply (only CVI) / 12V ~ IP67
Product details
- - 4in1 bullet outdoor camera - Dahua
- - S2 version
- - 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable
- - Resolution: 5 Megapixel
- - 1 / 2.7 "CMOS image sensor
- - 3.6mm fixed lens
- - Functions: Day / Night (ICR), BLC, HLC, DWDR, AGC
- - OSD Multilingual menu
- - Built-in microphone
- - Smart IR LED 30MT illuminator
- - 1 high definition BNC video output
- - PoC power supply (CVI only) / 12V
- - Suitable for outdoor and indoor environments
- - IP67 protection (dust / immersion)
- - Dimensions: 166.6mm × 69.7mm × 70.0mm
- - 24 months warranty
Data sheet
Model |
HAC-HFW1500CM-A-POC -S2 |
Room | |
Image Sensor | 1 / 2.7 inch CMOS |
Effective Pixels | 2880 (H) × 1620 (V) |
Pixel | 5 MP |
Scanning System | Progressive |
Electronic Shutter Speed |
PAL: 1/25 s – 1 / 100,000 s |
Min. Illumination |
0.005 Lux / F1.6, 30IRE, 0 Lux IR on |
S / N Ratio | > 65 dB |
IR Distance | 30 m (98.4 ft) |
IR On / Off Control | Car; manual |
IR LEDs | 3 |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 3.6 mm |
Max. Aperture | F1.6 |
Field of View | 109 ° × 92 ° × 48 ° |
Close focus distance |
1.6 m (5.2 ft) |
Video | |
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
Frame rate | CVI: PAL: 5M @ 25 fps; 4M @ 25 fps; 1080P @ 25 fps; NTSC: 5M @ 25 fps; 4M @ 30 fps; 1080P @ 30 fps AHD: PAL: 4M @ 25 fps; NTSC: 4M @ 30fps TVI: PAL: 4M @ 25fps; NTSC: 4M @ 30fps CVBS: PAL: 960H; NTSC: 960H |
Day / Night | Auto switch by ICR |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / DWDR |
WDR | DWDR |
White Balance | Car; manual |
Gain Control | Car; manual |
Noise reduction | 2D NR |
Smart IR | Yes |
Mirror | Off / On |
Privacy Masking | Off / On (8 areas, rectangle) |
Certification | |
Certifications |
CE (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3- 3: 2013, EN 55024: 2010 + A1: 2015, EN 55035: 2017, EN 50130-4: 2011 + A1: 2014, EN 62368-1: 2014 + A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No. 60950-1) |
Port | |
Audio Interface | One channel built-in mic |
Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port |
Power | |
Power Supply | PoC (CVI only) / 12V ± 30% DC |
Power consumption | Max 3.7W (12V DC, IR on); PoC (AF) |
Environmental | |
Operating Conditions |
–40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation) |
Strorage Conditions | –40 ° C to + 60 ° C (–40 ° F to 140 ° F); <95% (noncondensation) |
Ingress Protection | IP67 |
Construction | |
Casing | Metal throughout the whole casing |
Dimensions | 166.6 mm × 69.7 mm × 70.0 mm (6.56 "× 2.75" × 2.75 ") |
Net Weight | 0.33 kg (0.73 lb) |
Gross Weight |
0.43 kg (0.95 lb) |
Further details
This camera is a QUADRIBRID (4 Integrated Technologies) These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi . |
|
POC - POWER OVER COAX: This new technology makes it possible to power common coaxial cameras directly through the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones. The coverage in terms of distance of this technology depends on the quality of the cable and the power supply required by the camera, in any case the guaranteed distances are greater than those of the typical 12V power supplies, which have a much greater loss. Below you will find a purely indicative table of Dahua: |
|
5MP resolution, means 12 times the resolution of a common D1 camera : 1 / 2.7 "CMOS image sensor |
|
3.6mm fixed lens |
|
OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ... The OSD menu is multi-language Multi-Technology: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) |
|
Infrared Illuminator with Dot Led (larger) with approximate maximum range of 30Mt |
|
Allows you to adapt the lens to Night / Day vision | |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations | |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | |
Protection level IP67 (Dust / Diving) |
|
12VDC power supply not included |
|
This product is covered by a 24 month warranty. |
