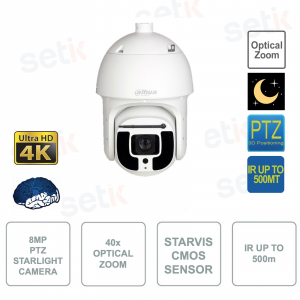

SD8A840-HNF-PA - PoE ONVIF® IP Camera - PTZ AI Starlight - 8MP - 40x Zoom 5.6-223 mm - Video Analysis

SD8A840-HNF-PA - PoE ONVIF® IP Camera - PTZ AI Starlight - 8MP - 40x Zoom 5.6-223 mm - Video Analysis
CERCHI ASSISTENZA O UN INSTALLATORE?
-56%

SD8A840-HNF-PA - Dahua IP PoE ONVIF PTZ outdoor camera - Supports Hi PoE - 4K ULTRA-HD 8MP resolution with Artificial Intelligence, 5.6 -223 mm optics (40x zoom), 1 / 1.8 " Sony STARVIS CMOS sensor with Starlight Technology . IR Illumination 10 LED 500M. Compression up to H.265 +, Day / Night (ICR), WDR 140dB, Defog, EIS , Wiper, Autotracking , Perimeter Protection, Face Detection, Metadata, Video Analysis , PFA Technology, LAN RJ45, RS485, Audio, Alarm, Micro SD slot up to 256GB (not included), IP67 protection, TVS6kV.



Reference: SD8A840-HNF-PA

Brand: Dahua

EAN: 6923172502575

€3,020.57

€6,864.94 -56%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


PTZ OUTDOOR IP CAMERA ONVIF® HI-POE - 4K ULTRA-HD 8MEGAPIXEL - ARTIFICIAL INTELLIGENCE - DAHUA - SD8A840-HNF-PA

Made by Setik

PTZ IP ONVIF® HI-PoE Camera - AI Dahua Series - SD8A840-HNF-PA
4K ULTRA-HD 8Megapixel resolution , 40x optical zoom (5.6-223 mm) - 16x digital zoom - 1 / 1.8 "CMOS sensor Sony STARVIS Starlight - 10 LED 500M IR illuminator - Day / Night (ICR) - Triple Stream - BLC - HLC - AWB - AGC - ROI - Defog - WDR 140dB - Video Analysis - Audio 1in / 1out - Alarm 7in / 2out - Wiper - MicroSD slot up to 256GB (not included) - RS-485 - RJ45 - IP67 / TVS6kV protection - Body in metal - Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata) - 24 Month Warranty

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

Telecamera Videosorveglianza Dome Motorizzata 8MP  4K ULTRA-HD IR 500MT
  • PTZ Starlight outdoor IP camera ONVIF® HI-PoE - AI Series - Dahua - SD8A840-HNF-PA
  • 4K ULTRA-HD 8Megapixel resolution
  • 1 / 1.8 " Sony Starvis ™ CMOS sensor with Starlight Technology
  • Starlight: Thanks to the sensor, color shooting even at night
  • Smart Wiper: The present wiper operates / stops automatically, depending on the intensity of the rainfall
  • Triple Stream
  • 40x Optical Zoom (5.6 ~ 223mm) + 16x digital zoom
  • Video compression up to H.265 +
  • ULTRA WDR (120dB) - Defog, EIS, ROI, Day / Night (ICR), Auto Focus
  • Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata)
  • Auto Tracking Function: (Auto zoom to single, multiple or panorama scene)
  • Video Analysis: Abandoned / lost objects
  • 10 LED IR Illuminator up to 500 Meters!
  • Audio: 1 in / 1 out
  • Alarm: 7 inputs and 2 outputs
  • BNC video output
  • RS485 port
  • IP67 protection (Dust / Diving) - Outdoor camera
  • 6KV lightning protection)
  • MicroSD slot (256GB - not included)
  • Dimensions: 415.6 mm × Φ26 2 mm (16.36 "× Φ10.31")
  • Material: Metal
  • 24 months warranty

–40 ° C to + 70 ° C (–40 ° F to + 158 ° F)

Operating Humidity

≤ 95% RH

Protection

IP67; TVS 6000V lightning protection; surge protection; voltage transient protection

Structure

Casing

Metal

Dimensions

415.6 mm × Φ26 2 mm (16.36 "× Φ10.31")

Net Weight

8.5 kg (18.74 lb)

Gross Weight

13.5 kg (29.76 lb)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera complies with the ONVIF® standard

PoE power supply

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

This camera supports the High-PoE standard.

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Auto tracking
- Face detection It distinguishes the face from all other objects in the image

- Perimeter protection: Intrusion, Line crossing (classification of people & vehicles), filters false alarms caused by animals, rustling leaves, bright lights etc ...
- Metadata

AI Camera - Rilevamento volto

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
Questa telecamera ha una risoluzione 8Mpx 3480x2160

This camera features a resolution of 8Megapixels!

Starlight

1 / 1.8 " Sony STARVIS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

Starvis logo

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (WDR multiple exposure, DOL-WDR)

- Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black / white.


With the SENSOR present, night shots will be sharp and in color



This camera is equipped with a wiper , useful for improving the view in case of rain.


Triple Stream :

Main stream : 4K / 1080P / 1.3M / 720P (1–25 / 30 fps)
Sub stream 1 : D1 / CIF (1–25 / 30 fps)
Sub stream 2 : 1080P / 1.3M / 720P (1–25 / 30 fps)

This camera also provides basic VIDEO ANALYSIS functions:
- Recognition of lost and abandoned objects.

This camera features the AUTO TRACKING function.
The system will identify the objects moving in a specific video surveillance area and will automatically enlarge it for a better view of the tracked object.



This camera is equipped with 10 LED lighting with a maximum range of up to 500 meters!

32X optical zoom 40x Optical Zoom (5, 6mm ~ 223mm) + 16x Digital Zoom
Infrared Illuminator Supports Intelligent 3D Positioning with DH-SD protocol. This system allows, in addition to movement on the camera axis, also positioning in terms of depth, and the same can be stored in the Presets.

General PTZ Functions:
Pan / Tilt Range: Pan: 0 ° to 360 ° Tilt: -30 ° to + 90 °, auto flip 180 °
Manual Control Speed: Pan: 0.1 ° / s – 240 ° / s Tilt: 0.1 ° / s – 100 ° / s
Preset Speed: Pan: 240 ° / s; Tilt: 120 ° / s
Preset: 300
PTZ Mode: 5 Patterns, 8 Tours (up to 32 presets per tour) 5 Scan
Speed Setup: Yes
Power off memory: Yes
Idle Motion: Preset; Tour; Pattern; Scanning ???????
Protocol: DH-SD Pelco-P / D (auto recognition)
Full HD It is extremely useful to have Inputs / Outputs in a CCTV system in order to control relays or activate a recording following an event.
This camera has 7 inputs and 2 alarm outputs.
Ingresso Audio This camera has 1 Audio In + 1 Audio Out.
Dual Encoding RS 485 for PTZ commands (remotely controllable cameras)
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

DEFOG Function Icon Last Function ONLY present in Sony Effio-V, It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Funzione EIS This camera features the EIS function.

The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
Ultra Smart Funzione Stabilizzazione EIS
ULTRA WDR up to 140dB.
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db while managing very strong contrast levels.
Immagine esempio funzione WDR 120db
MicroSD Recording

Possibility to insert Micro SD (256GB - not included )

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

Warranty This product is covered by a 24 month warranty.

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
