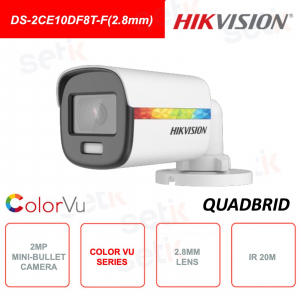

DS-2CE10DF8T-F (2.8mm) - HIKVISION - 2 MP ColorVu Mini Bullet Camera - 4in1 - 2.8mm Lens - IR 20m - WDR 130dB

IN PROMOTION -35%

Hikvision ColorVu | DS-2CE10DF8T-F (2.8mm) - Color Vu Outdoor Mini Bullet Camera - 4in1 Switchable TVI / AHD / CVI / CVBS - High Quality CMOS Sensor with ColorVu Technology - 24/7 Color Vision - 2.8mm Lens - 20m IR illumination - White light alarm - BLC, HLC, Global, HLS, AWB, 3D DNR / 2D DNR, Mirror Mode, Anti-banding - Privacy Mask - Motion Detection - IP68 protection - Metal body.

Reference: DS-2CE10DF8T-F(2.8mm)

Brand: Hikvision

EAN: 6941264042136

https://www.setik.biz/en/cameras/7085-hikvision-ds-2ce10df8t-f28mm-ds-2ce10df8t-f-28mm-hikvision-2-mp-colorvu-mini-bullet-camera-4in1-28mm-lens-ir-20m-wdr-130db.html

€91.20

€140.30 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DS-2CE10DF8T-F (2.8mm) | HIKVISION COLORVU IP CAMERA - 4 IN 1 - 2MP - 2.8MM LENS - WDR 130dB - OUTDOOR - WHITE LIGHT

Hikvision Mini Bullet Outdoor Camera with Color Vu Technology - DS-2CE10DF8T-F (2.8mm)
2MP 2 Megapixel resolution - 4in1 switchable TVI / AHD / CVI / CVBS - 2.8mm lens - 0.0003 Lux CMOS sensor with ColorVu technology: 24/7 color vision even at night! - WDR 130dB - IR 20m - White light (on / off) - Day / Night - AGC - AWB - 3D DNR / 2D DNR - WDR, BLC, HLC, Global, HLS - Mirror Mode - Motion Detection - Privacy Masks - Light Alarm white - Metal body - Power supply not included - 24 month warranty

ColorVu Technology:
Hikvision ColorVu technology provides 24/7 vibrant, colorful images with advanced F1.0 lenses and high performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can greatly improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid details in color, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is a F1.0 . The large aperture allows you to collect a large amount of light and capture color images even in the dark.

SENSOR WITH AMAZING QUALITY
The sensor installed in the ColorVu products has a sensitivity of 0.0005 Lux and has allowed a significant improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with a reduced light glare.

SML TECHNOLOGY - WHITE LED ON BOARD
All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from courtesy light to smart activation in conditions of total absence of light.

SIMPLIFIED START-UP
Thanks to the 4 pre-configured profiles and the possibility to create two customized ones, ColorVu products allow an easy installation for professionals of the sector.

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Analog , Ahd , HDCVI and HDVI .

Resolution:

This camera features a resolution of 2MP ( 1920x1080 pixels)

Bright lens:

This camera features bright F1.0 aperture lens and 2.8mm fixed lens.
The camera will collect much more light ensuring color shots even in the dark!

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor present (0.0005 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car / license plate

IR Infrared Illuminator | White Light:

With the additional white light on board , the camera is able to deliver images with more vivid colors even in total darkness.
Many adjustable functions: from courtesy light to smart activation in conditions of total absence of light.

20M range

DS-2CD2087G2-L (2.8mm) _LED.jpg

WDR 130dB

WDR (Wide Dynamic Range): this is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.

Day / Night:

Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

BLC (Back Light Compensation):

is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:

More advanced version of the NOISE REDUCTION management. It allows still images in both low light and movement. Currently the most powerful solution for obtaining maximum results in low light conditions.

MATERIAL:

This camera features a metal housing.

IP68 protection:

Protection from dust and temporary immersions. Suitable for outdoor environments.

Data sheet

DS-2CE10DF8T-F (2.8mm)
Room
Image Sensor	2 MP CMOS
Signal System	PAL / NTSC
Resolution	1920 (H) × 1080 (V)
Frame Rate	TVI: 1080p @ 25fps / 30fps CVI: 1080p @ 25fps / 30fps AHD: 1080p @ 25fps / 30fps CVBS: PAL / NTSC
Min. Illumination	0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter Time	PAL: 1/25 s to 1 / 50,000 s; NTSC: 1/30 s to 1 / 50,000 s
Slow Shutter	Max. 16 times
Lens	2.8 mm
Field of View	horizontal FOV: 106 °, vertical FOV: 56 °, diagonal FOV: 129 °
Lens Mount	M12
Light Alarm	Solid Light Alarm (White Light)
Day & Night	Color
WDR (Wide Dynamic Range)	≥130 dB
Angle Adjustment	Pan: 0 ° to 360 °, Tilt: 0 ° to 90 °, Rotation: 0 ° to 360 °
Menu
White Light	Auto / Off
Image Mode	STD / HIGH-SAT / HIGHLIGHT
AGC	Yes
Day / Night Mode	Color
White Balance	Car
AE (Auto Exposure) Mode	WDR, BLC, HLC, Global, HLS
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable motion areas
Noise Reduction	3D DNR / 2D DNR
Language	English
Function	Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
Video Output	Switchable TVI / AHD / CVI / CVBS
General
Operating Conditions	-40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensing)
Power Supply	12 VDC ± 25%, * You are recommended to use one power adapter to supply the power for one camera.
Consumption	Max. 3.1 W
Protection Level	IP68
Material	Metal
White Light Range	Up to 20 m
Communication	HIKVISION-C
Dimension	161.1 mm × 70 mm × 70 mm (6.34 "× 2.76" × 2.76 ")
Weight	Approx. 390 g (0.86 lb.)

Further details

Download

Download the English brochure
