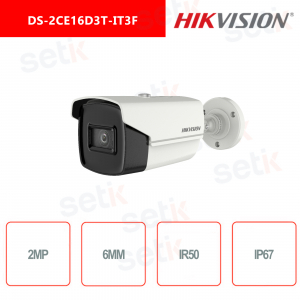

Hikvision Ultra Low Light Fixed Bullet Camera 4in1 2MP 6mm IR 50M IP67

Hikvision Ultra Low Light Fixed Bullet Camera 4in1 2MP 6mm IR 50M IP67
CERCHI ASSISTENZA O UN INSTALLATORE?
-35%

Hikvision DS-2CE16D3T-IT3F (6mm) 2MP CMOS 4in1 (TVI / AHD / CVI / CVBS) Ultra Low Light Bullet outdoor camera 2Megapixel, 6mm fixed lens, 2MP CMOS sensor, EXIR 2.0 illuminator up to 50M with EXIR 2.0 technology, Support 3D Digital noise reduction, BLC, Smart IR, WDR 120dB. Analog HD video output, IP67



Reference: DS-2CE16D3T-IT3F(6mm)

Brand: Hikvision

€76.92

€118.34 -35%
taxes included
Tax included
 Available in 5 days



DS-2CE16D3T-IT3F (6mm) | HIKVISION 2MP BULLET CAMERA HD 4IN1 6MM - EXIR 50 M

Made by Hikvision
Hikvision DS-2CE16D3T-IT3F (6mm) 2MP CMOS 4in1 (TVI / AHD / CVI / CVBS) Ultra Low Light Bullet Camera
2Megapixel outdoor, 6mm fixed lens, 2MP CMOS sensor, EXIR 2.0 illuminator up to 50M with EXIR 2.0 technology
Support 3D Digital noise reduction, BLC, Smart IR, WDR 120dB. Analog HD video output, IP67
Power supply NOT included - POC compatible (Coaxial power supply) - 24 month warranty

4IN1 TECHNOLOGY:

This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , Hdcvi and Hdtvi .

Resolution:
This camera features a resolution of 1920x1080 FULL-HD
2 megapixels high performance CMOS sensor

Optics:
This camera features a 6mm fixed lens

IR Infrared Illuminator:
IR Infrared illuminator for better night vision. Range up to 50M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic disturbances of the traditional IR illuminator.

In detail:

1) NO IR REFLEX OR BLEEDING:
By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDS around the lens.
This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hottest IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so in flat-faced EXIR cameras, on which the contact surfaces are significantly smaller.

Day / Night:
Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows a correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex possible, the BLC function allows a fair adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR 120 (Digital Wide Dynamic Range):
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Esempio funzionamento WDR

IP67 protection - outdoor:
This camera has IP67 (dust / diving) protection. Suitable for outdoor environments.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

Data sheet

DS-2CE16D3T-IT3F (6mm)
Room
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL / NTSC
Video Frame Rate PAL: 1080p @ 25fps
NTSC: 1080p @ 30fps
Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shuder Time PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Slow Shuder Max. 16 Times
Lens 6 mm
Horizontal Field of View 61 °
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, RotaAon: 0 ° to 360 °
SynchronizaAon Internal synchronization
WDR (Wide Dynamic Range) ? 120 dB
Menu
AGC High / Medium / Low
D / N Mode Auto / Color / BW (Black and White)
Image Mode STD / HIGH-SAT
HLC Yes
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 9
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output

1 HD analog output

Budon switch

TVI / AHD / CVI / CVBS

General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensation)

Power Supply 12 VDC ± 25%
Power Consumption Max. 5.6 W
Protection level IP67
Material Front cover: Metal
Main body: Plastic
Bracket: Plastic
IR Range Up to 50 m

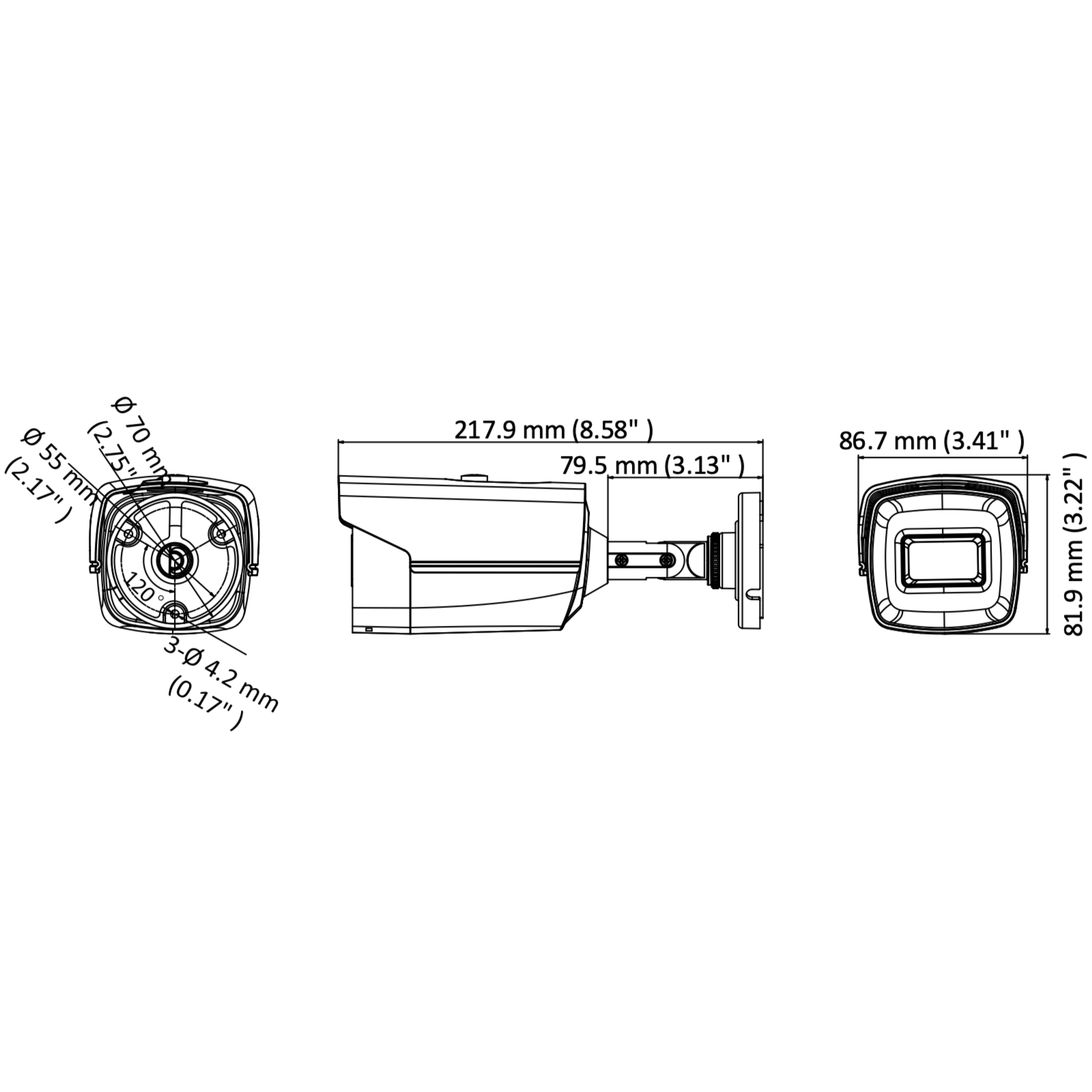

Communication 81.9 mm × 86.7 mm × 217.9 mm (3.22 "× 3.41" × 8.58 ")
Weight Approx. 411 g (0.91 lb.)

Further details

Download

Download the English brochure
