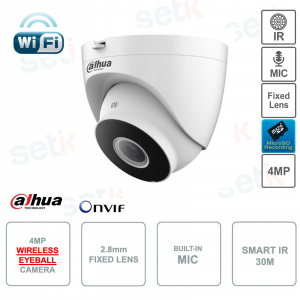

Dahua outdoor camera IPC-HDW1430DT-STW Eyeball 4MP Wireless WIFI - 2.8mm Lens - 1/3" 4MP CMOS Sensor - Smart IR 30m - Dual Stream - H.265+ Smart Codec - Day/Night(ICR) - BLC - DWDR - 3DNR - Motion Detection - Mirro Mode - Microphone - Event alarm - Wi-FI with double 2.4Ghz antenna up to 120m - MicroSD slot up to 256GB (not included) - External IP67 protection - Made of plastic and metal.
€92.54
€225.70 -59%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA EYEBALL IP ONVIF® CAMERA - 4MP - 2.8MM LENS - DOUBLE ANTENNA 2.4GHZ WIFI - AUDIO AND EVENT ALARM - IPC-HDW1430DT-STW
Dahua Eyeball IP ONVIF® 4MP Wireless Outdoor Camera - IPC-HDW1430DT-STW
Wireless with dual 2-4GHZ Wi-Fi antenna and 120m range - 4MP resolution - 2.8mm fixed lens - 1/3" 4MP 2560x1440 progressive scan CMOS sensor - Dual Stream - Smart H.265+
Smart IR illuminator 30m - Built-in microphone - Event alarm - Day/Night (ICR), AWB, AGC, BLC, WDR digital, 3DNR
IP67 protection - Power supply NOT included - 24 months warranty
Product details
- Quality Smart IR illuminator with a maximum range of 30 meters and 1 LED illuminator.
- Suitable for indoor and outdoor environments thanks to the IP67 protection against dust and splashes
- Weight: 352g
Data sheet
| IPC-HDW1430DT-STW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/3" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max.Resolution |
2560(H)×1440(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
16MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
64MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressives |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3s–1/100,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min Illumination |
0.03 Lux@F2.0 (Color, 30IRE) video encryption; configuration encryption; digests; WSSE; account lockout; security logs; generation and import of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrades |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NetworkProtocol |
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP extension |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF® (Profile S/Profile T); CGI; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
6 (Total bandwidth: 36M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD card (support max. 256GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browsers |
IE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
management software |
Smart PSS; DSS; DMSS extension |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Clients |
iOS; android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC:47 CFR FCC Part 15, Subpart B; FCC ID:FCC PART 15C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
power consumption |
Basic: 2W (12VDC) Max. (H.265 + IR intensity): 6.1 W (12 VDC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30°C to +60°C (–22°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperatures |
–30°C to +60°C (–22°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Inner core: Metal+Plastic Cover: Plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
Ø109.9mm × 102.2mm (Ø4.33" × 4.02") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
352g (0.77lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
530g (1.17lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 |
This wireless camera has built-in Wi-Fi, with dual 2.4Ghz antennas and a transmission distance of up to 120m (performance may vary based on the concrete characteristics of the usage environment) |
 |
This camera features a resolution of 4MP 4 Megapixels 2560x1440p 1/3" 4MP progressive scan CMOS sensor |
 |
This camera features a 2.8mm fixed lens |
 |
Infrared illuminator with approximate maximum range of 30m 1 x LED Illuminator |
 |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera is equipped with built-in microphone ! |
 |
Event-linked alarm:
|
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
 |
Allows you to adapt the lens to Night/Day vision
|
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 |
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Protection level IP67 ( Dust / Immersion ) Ideal solution for video surveillance systems set up outdoors. |
 |
Slot for recording on MicroSD cards with capacities up to 256GB (not included) |
 |
12VDC power supply not included  |
 |
This product is covered by a 24 month guarantee. |
