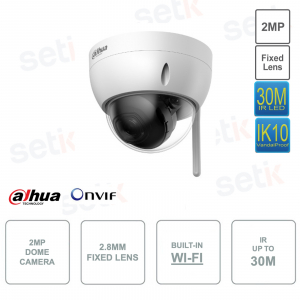

IPC-HDBW1230DE-SW | OUTDOOR IP CAMERA 2.8mm FIXED LENS - 2MP - MOTION DETECTION

Dahua

The Dahua IPC-HDBW1230DE-SW 2MP Wi-Fi dome camera with 2.8 mm or 3.6 mm fixed lens offers Full HD images at 30 fps, with integrated IR for night vision up to 30 m. It supports Smart H.265+ compression, motion detection on 4 areas, IP67 and IK10 protection against dust, water and shock. Thanks to 2.4 GHz Wi-Fi connectivity up to 80 m, a 256 GB MicroSD slot and advanced cybersecurity functions, it is ideal for small and medium-sized residential and commercial applications.

Main specifications:

- 2MP resolution (1920×1080) at 25/30 fps

- 2.8mm fixed optics

- IR night vision up to 30 meters

- Smart H.265+/H.264+ video compression

- Motion detection on 4 areas

- IP67 (waterproof) and IK10 (vandal-proof) protection

- 2.4 GHz Wi-Fi with coverage up to 80 m

- MicroSD support up to 256GB

- Power supply 12V DC

- Advanced cybersecurity features

Further details

Fixed optics:
It is available with a fixed 2.8 mm lens with F2.0 aperture. The field of view reaches up to 120° (diagonal), with excellent coverage for large environments. The optical system is ideal for identification at medium-short distances thanks to DORI technology
Resolution :
Equipped with a 1/2.8" CMOS sensor, the video camera offers Full HD 1080p (1920×1080) resolution at 25/30 fps, with Smart H.265+/H.264+ compression to reduce bandwidth and storage consumption while maintaining high video quality.
Motion Detection :
It integrates intelligent motion detection functions on 4 configurable areas, with alarm or recording activation in case of detected activity. It also supports the detection of video tampering, absence of SD card or unauthorized access.
IP67, IK10 and Wide Voltage Protection:
The camera is designed for outdoor: IP67 makes it waterproof and dustproof; IK10 ensures vandal-proof protection; wide voltage support (±30%) allows stability even in environments with fluctuating voltage.
Built-in IR LED:
It is equipped with 3 built-in IR LEDs that offer night vision up to 30 meters, which can be activated automatically or manually. This function ensures clear images even in complete darkness.
Network Camera :
It is a Wi-Fi network camera, manageable by browser, mobile app (iOS/Android) or Dahua Smart PSS, DSS and DMSS software. It has a microSD slot (up to 256 GB), stable connection on 2.4 GHz Wi-Fi up to 80 m and advanced cyber security functions (encryption, certificates, trusted boot).
IPC-HDBW1230DE-SW dimensions

Technical data sheet

IPC-HDBW1230DE-SW

Room

Image Sensor

1/3" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.025 lux@F2.0 (Color, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

30m (98.43ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

3 (IR LEDs)

Pan/Tilt/Rotation Range

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Power

Power Supply

12VDC

Power Consumption

Basic: 2 W (12 VDC);
Max. (H.265+IR intensity): 4.9 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

Φ110.7 mm × 88.7 mm (Φ4.33" × 3.49")

Net Weight

414g (0.91lb)

Gross Weight

592g (1.31lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
