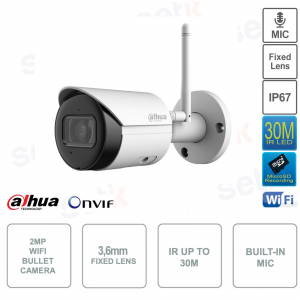

IP ONVIF® camera - 2MP - 3.6mm lens - WIFI - IR 30m - Microphone

IP ONVIF® camera - 2MP - 3.6mm lens - WIFI - IR 30m - Microphone
-58%

Consumer Series | Dahua IPC-HFW1230DS-SAW Bullet 2MP 1080p Full HD wireless IP ONVIF outdoor camera, 3.6mm fixed lens and 1/2.8 "CMOS sensor - Smart H.265+ - Dual Stream - 2.4G WI-FI antenna up to 80m in open space - Microphone - Motion Detection - IR 1xLED 30M, Day/Night (ICR), BLC, HLC, 3DNR, AGC, AWB, ROI, Mirror Mode - Event alarm - MicroSD slot (256GB - not included) - IP67 protection for outdoor use - Metal body.

Reference: IPC-HFW1230DS-SAW

Brand: Dahua

EAN: 6923172539908

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA CONSUMER SERIES | IP WIRELESS CAMERA ONVIF® 2MP - 3,6MM - WIFI - IPC-HFW1230DS-SAW

Made by Setik
ONVIF® IP Wi-Fi outdoor camera - Dahua Consumer - IPC-HFW1230DS-SAW
2MP 1080p resolution - 3.6mm fixed lens - 1/2.8" CMOS sensor - Dual Stream - Smart H.265+ codec
IR illuminator 30m - DWDR - BLC - HLC - 3DNR - Mirror - ROI - Day/Night (ICR) - 2.4GHz WIFI antenna up to 80m in open field without obstacles -
IP67 protection (ideal for outdoors) - Microphone - MicroSD slot (256Gb - Not Included) - 12V DC power supply included

Product details

Telecamera IP WIFI 4MP 2K QHD IPC-HFW1435S-W
- Outdoor Wireless IP ONVIF® Camera - Dahua Consumer Series - IPC-HFW1230DS-SAW
- WiFi IEEE802.11b/g/n 2.4–2.4835 GHz up to 80m in open field without obstacles
- 2MP resolution
- 3.6mm fixed lens
- Image sensor 1/2.8” CMOS 2MP FullHD 1080p progressive scan
- Video compression up to H.265+
- Day/Night (ICR) - BLC - HLC - AGC - AWB - ROI - Mirror - 3D-NR
- 1xLED 30M IR illuminator
- Integrated microphone
- MicroSD slot (up to 256GB - not included)
- 12V DC power supply included in the package
- Suitable for indoor and outdoor environments (IP67 protection (dust / short immersions)
- Dimensions: 166.2mm × 70.0mm × 128.6mm
- Material: Metal
- Weight: 477.9g
- Operating temperature: –40 °C to +60 °C (
- 24 months warranty

Data sheet

IPC-HFW1230DS-SAW

Room

Image Sensor

1/2.8" CMOS

Max.Resolution

1920(H)×1080(V)

ROM

16MB

RAM

64MB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3s–1/100,000s

Min Illumination

0.025 lux@F2.0 (Color, 30IRE)
0.0025 lux@F2.0 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>56dB

Illumination Distance

30m (98.43ft) (IR LED)

Illuminator On/Off Control

Car; manual

Illuminator Number

1 (IR LEDs)

Pan/Tilt/Rotation Range

IE
Chrome
firefox

management software

Smart PSS; DSS; DMSS extension

Mobile Clients

iOS; android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Power

Power Supply

12VDC

power consumption

Basic: 2W (12VDC)
Max. (H.265+IR intensity): 4.1 W (12 VDC)

environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Storage Temperatures

–30 °C to +70 °C (–22 °F to +158 °F)

Protection

IP67

structure

Casing

Metal

Product Dimensions

166.2mm × 70.0mm × 128.6mm (6.53" × 2.76" × 5.06")

Net Weight

477.9 g (1.05 lb)

Gross Weight

696.5 g (1.50 lb)

Further details

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
WIFI Support

WIRELESS IEEE802.11b/g/n 2.4–2.4835GHz

Range in open field up to 80m in the absence of obstacles.

2MP resolution This camera has a resolution of 2 Megapixels!

Smart H.265+ video encoding

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Ottica fissa This camera features a 3.6mm fixed lens
Illuminatore IR fino a 30mt

Thanks to the illuminator it is equipped with, you will remain safe even at night, 24 hours a day, 7 days a week!

Range of the illuminator about 30MT.

Ultra WDR 120dB ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Esempio funzionamento WDR
Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
AGC Automatic Gain Control function The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Esempio Funzione Automatic Gain Control
ROI function This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
3D-DNR function

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.

Esempio funzione 3D-DNR
This camera has built-in microphone This camera is equipped with an onboard microphone
MicroSD recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

Protezione IP67 contro polveri e immersioni

Protection level IP67 ( Dust / Immersion )

The camera is suitable for outdoor environments and is rain resistant.

Telecamera protetta contro acqua, ideale per ambienti esterni

12VDC_Supply 12VDC power supply included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
