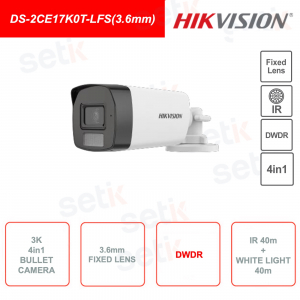

Hikvision Bullet Camera DS-2CE17K0T-LFS(3.6mm) with 3K 2960x1665 resolution - 4in1: TVI/AHD/CVI/CVBS - 3.6mm fixed lens, 3K CMOS sensor - 40m IR illumination and 40m white light - Day&Night - DWDR - AGC , Hikvision-C, IP67 protection - Made of metal and plastic.
HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!
€104.68
€161.04 -35%
DS-2CE17K0T-LFS(3.6mm) | 3K 4IN1 BULLET CAMERA TVI/AHD/CVI/CVBS - 3.6MM LENS - DWDR - IP67 - IR 40M - WHITE LIGHT 40M
Resolution: 3K 2960X1665 progressive scan - 4 technologies in 1 switchable: TVI/CVI/AHD/CVBS - 3.6mm Fixed Lens - 3K CMOS sensor - Hikvision-C
40m IR illuminator - 40m white light illuminator - Day/Night(ICR) - DWDR - AGC - IP67 outdoor protection - Made of metal and plastic.
Power supply NOT included - 24 months warranty
| 4in1: 4 technologies in 1, switchable: TVI/AHD/CVI/CVBS. |
| Resolution: This camera has a resolution of 3K (2960x1665 progressive scan pixels) 3K progressive scan CMOS image sensor |
| Optics: This camera features a 3.6mm Fixed Lens |
|
Infrared IR Illuminator: |
| White Light Illuminator: White light illuminator integrated in the design, with an approximate range up to 40m . |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
|
D-WDR: D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersion. Suitable for use in surveillance systems set up outdoors. |
Data sheet
| DS-2CE17K0T-LFS(3.6mm) | |
|
Room |
|
|
Image Sensor |
3K CMOS |
|
Max.Resolution |
2960(H)×1665(V) |
|
Min Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s |
|
Day ? Night |
ICR extension |
|
Angle adjustment |
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
|
Signal System |
PAL/NTSC |
|
lens |
|
|
LensType |
3.6mm |
|
focal length ? FOV extension |
horizontal FOV: 83°, vertical FOV: 48°, diagonal FOV: 102° |
|
Lens mount |
M12 |
|
Illuminator |
|
|
Supplement Light Type |
White Light, IR |
|
Supplement Light Range |
IR : Up to 40m White Light : Up to 40m |
|
image |
|
|
Image Settings |
Brightness, Sharpness, Smart IR |
|
Frame Rates |
TVI: 3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps AHD: 5MP@20fps, 4MP@25fps/30fps CVI: 4MP@25fps/30fps CVBS : PAL/NTSC |
|
Day/Night Mode |
IR/White Light |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
Image Enhancement |
Yes |
|
White Balance |
Auto/Manual |
|
AGC extension |
Yes |
|
interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
General |
|
|
Material |
Front cover: Metal Main body: Plastic |
|
Dimension |
216.6mm × 78.9mm × 75.4mm (8.53" × 3.10" × 2.97") |
|
Weight |
Approx. 340g (0.75lb.) |
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
communication |
HIKVISION-C |
|
Language |
English |
|
Power Supply |
12VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
|
consumption |
Max. 4.5W |
|
Approve |
|
|
Protection |
IP67 |
