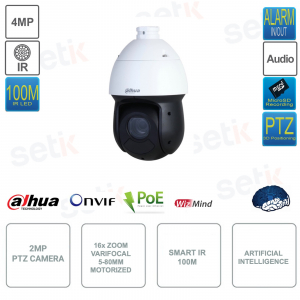

POE ONVIF® PTZ IP camera - 2MP - 5-80mm lens - 16x zoom - Artificial intelligence

-58%

Dahua - SD49216DB-HNY outdoor IP camera ONVIF 2MP 1080P FULL-HD , 5.0-80mm motorized varifocal lens (16X zoom), - 1/2.8" STARVIS™ CMOS sensor with Starlight Technology . IR 3 LEDs 100M , H.265+ compression , Day/Night(ICR), BLC, HLC, WDR120dB, EIS, Defog, ROI Audio, Alarm, 512GB Micro SD slot (not included) - Outdoor IP66 protection - Bracket included (PFB305W) - Lightning protection TVS6000 - Intelligence Artificial: Perimeter Protection, SMD, Face Detection.

Reference: SD49216DB-HNY

Brand: Dahua

EAN: 6923172541970

https://www.setik.biz/en/cameras/8317-dahua-sd49216db-hny-ip-camera-poe-onvif-ptz-2mp-optical-5-80mm-zoom-16x-artificial-intelligence.html

€479.61

€1,141.92 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

MOTORIZED IP DOME CAMERA 2MEGAPIXEL 1080P FULL-HD - IR 100 METERS - ARTIFICIAL INTELLIGENCE - VARIFOCAL 5-80MM - 16X OPTICAL ZOOM - ONVIF® - DAHUA - SD49216DB-HNY

Outdoor PTZ IP camera ONVIF® PoE Dahua - SD49216DB-HNY
2MP 1080P FULL-HD , 16X Optical Zoom (5 ~ 80mm motorized varifocal lens) - 1/2.8" STARVIS™ CMOS with Starlight Technology - Triple Stream - H.265+ Codec - 100MT IR Illuminator with 3 LEDs - Day/Night (ICR ) - WDR120dB - EIS - Defog - HLC - BLC - AGC - Audio 1in/1out /Alarm 2in/1out - Event alarm - MicroSD slot 512GB (not included) - Artificial intelligence: Perimeter protection, SMD, Face detection - IP66 protection from external - TVS6000 lightning protection - Includes mounting support (PFB305W) - 24 months manufacturer's warranty.

Product details

Telecamera Videosorveglianza Dome PTZ Dahua

PTZ Outdoor IP Camera ONVIF® PoE Motorized - Dahua -
Image sensor 1/2.8" CMOS STARVIS™ with Starlight Technology
Starlight technology: color night vision
2Megapixel 1080P FULL-HD resolution
Triple Stream Video
H.265+ Smart Codecs
16x Optical Zoom (5-80mm) + 16x digital zoom
IR illuminator 3 LEDs 100mt
WDR 120dB , Day/Night (ICR), BLC, Electronic Defog, ROI, EIS, HLC,
Artificial Intelligence: Perimeter Protection, Face Detection, SMD
2 inputs and 1 alarm outputs
1 input + 1 audio output
Micro SD slot (max 512GB - not included)
IP66 protection (Rain / Dust)
Operating temperature: –40 °C to +60 °C
Dimensions: 270.4mm × Φ160.0mm
Power supply NOT included 12 VDC, 3 A
Bracket included (PFB305W, for wall mounting)
Item Weight: 2.4Kg
24 months warranty

Data sheet

SD49216DB-HNY

Room

Image Sensor

1/2.8" CMOS

Pixels

2MP

Max.Resolution

1920(H)×1080(V)

ROM

128MB

RAM

256MB

Electronic Shutter Speed

1/1s–1/30,000s

Scanning System

Progressives

Min Illumination

Color: 0.005lux@F1.6
B/W: 0.0005lux@F1.6
0 lux (IR light on)

Illumination Distance

100m (328.08ft) (IR)

Illuminator On/Off Control

Zoom Prior; Manual; Smart IR

Illuminator Number

3 (IR)

lens

S/N Ratio

≥55dB

Audio

Audio Compression

G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729

Network

Network Port

RJ-45 (10/100Base-T)

NetworkProtocol

TCP; FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; IP filter; SMB; HTTP; SSL; DHCP; smtp; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP

Interoperability

CGI; Dahua SDK; APIs; SDKs; ONVIF® (Profile S&G&T)

Streaming Method

unicast; Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP; Micro SD card (512GB); NOS

Browsers

IE 7 and later versions
Chrome
firefox
Safari

management software

DSS; DMSS; ConfigTool; NVRs; Smart PSS; IVSS

Mobile Clients

iPhones; iPads; iOS; android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio inputs

1 channel (LINE IN, bare wire)

Audio Outputs

1 channel (LINE OUT, bare wire)

I/O alarms

2/1

Audio I/O

1/1

Alarm Linkage

Capture; presets; tours; patterns; recording; alarm digital input; audio; send email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

12VDC, 3A (±10%)
PoE (802.3at)

power consumption

Basic: 12W
Max.: 20W (IR light)

environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Protection

IP66; TVS 6000V lightning proof; surge protection; voltage transient protection

structure

Product Dimensions

270.4mm × Φ160.0mm (10.65" × Φ6.30")

Net Weight

2.4kg (5.29lbs)

Gross Weight

3.9kg (8.60lbs)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. This camera is ONVIF® compatible
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera features 2Megapixel 1080P FULL-HD resolution
	1/2.8" STARVIS™ CMOS sensor with Starlight Technology . Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
	16x Optical Zoom (5mm~80mm, Motorized varifocal lens)
	3 LED IR illuminator with range up to 100 meters! This camera is also equipped with SMART IR technology. Through this technology, the light emitted by the LEDs is adapted according to the object framed.
	It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° Manual Control Speed: Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s??????? Preset Speed: Pan: 80°/s; Tilt: 80°/s??????? Presets: 300 PTZ Mode: 8 (up to 32 presets per tour) Patterns : 5 Scan : 5
	This camera features ARTIFICIAL INTELLIGENCE Perimeter protection SMD Face detection
	This camera has 2 inputs and 1 output
	This camera features 1 Audio input and 1 Audio output Two-way audio supported
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
	ULTRA 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light.
	ELECTRONIC DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
	Possibility to insert Micro SD up to a maximum of 512GB (not included)
	RJ45 100M interface included.
	IP66: guarantees the impossibility for dust to enter the camera and protection from water jets of any kind (e.g. rain)
	Power supply NOT included
	Protection level from Heavy Rain and dust in IP parameters.
	This product is covered by a 24 month guarantee.
