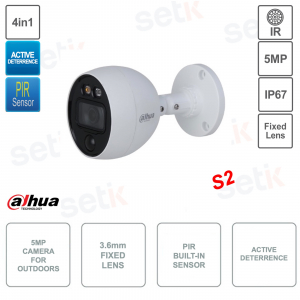

Outdoor Active Deterrent Camera - 4in1 - 5MP - 3.6mm Lens - PIR

Outdoor Active Deterrent Camera - 4in1 - 5MP - 3.6mm Lens - PIR
-57%

Dahua - HAC-ME1500B-LS-S2 - S2 Version - Outdoor Camera - 4in1 CVI/CVBS/AHD/TVI switchable - 3.6mm lens - 5MP 2688x1620 resolution - 1/2.7" 5MP CMOS - Active deterrence with intermittent lights - Integrated PIR up to 10m infrared - Smart IR 30m - Day/Night(ICR) BLC - HLC - DWDR - 2DNR - AGC - Mirror Mode - Privacy MAsking - Made of plastic and metal - IP67 protection from dust and splashes, ideal for outdoors. One of the best bullet cameras

Reference: HAC-ME1500B-LS-S2

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

5-Megapixel 4-in-1 Active Deterrence Camera | PIR Alarm & White Light - Dahua - HAC-ME1500B-LS-S2

Prodotto marchiato Dahua
Dahua HAC-ME1500B-LS-S2 4-in-1 Active Deterrence Outdoor Camera with PIR
4in1: CVBS - CVI - DVI - TVI - 5Megapixel 5 MP resolution - 3.6mm fixed lens - 1/2.7" 5MP CMOS sensor - Smart IR illuminator 1 LED 30m - Day/Night (ICR), BLC, HLC, DWDR, 2DNR, AWB, AGC, Mirror Mode - Privacy Masks - PIR sensor for motion detection with a range of up to 10m - Deterrence : White light and siren One of the best bullet cameras

Telecamere MotionEye Sensore allarme PIR

Product details

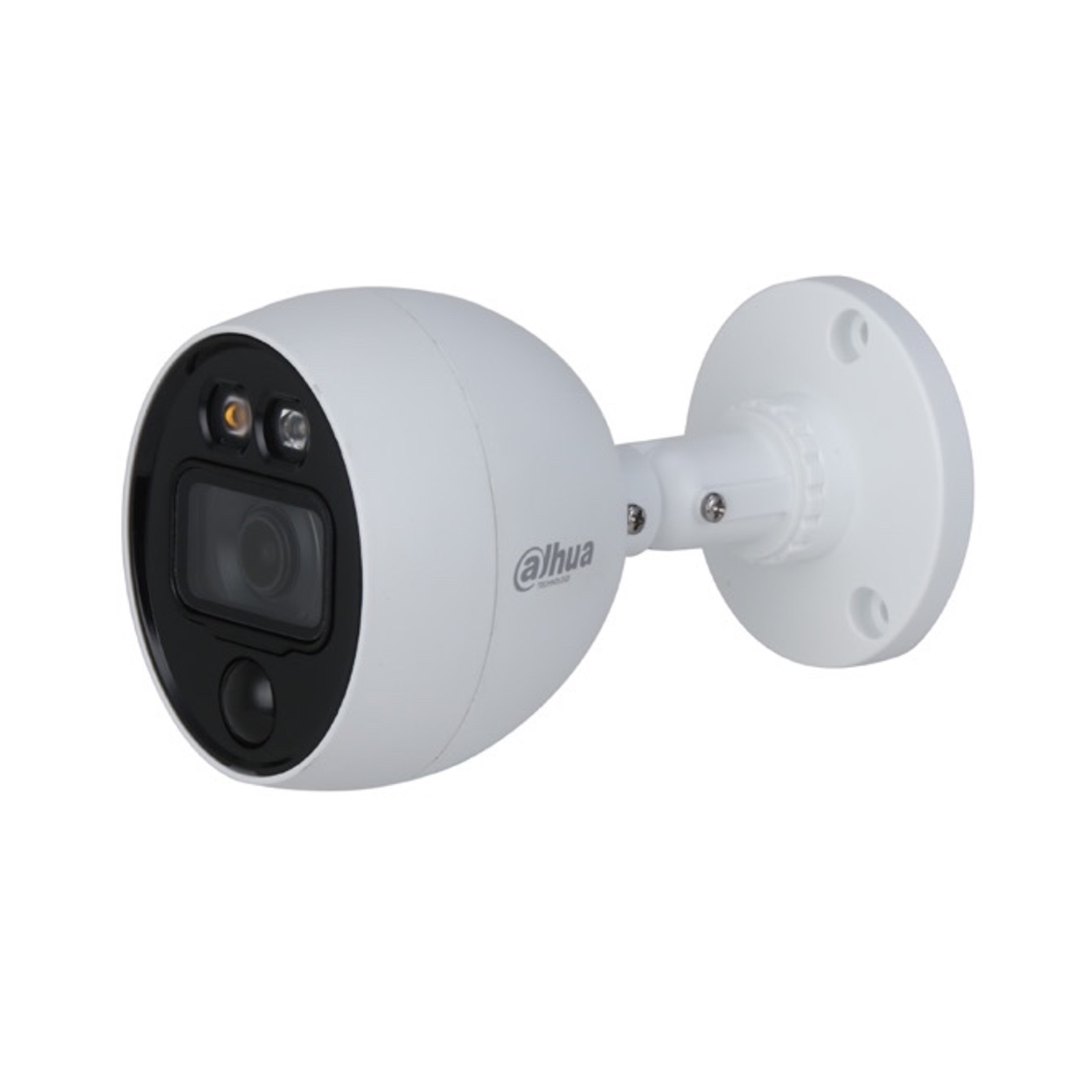

Telecamera Dahua per la sorveglianza 5MP,2.8mm, Motioneye
  • Active Deterrence HD CVI camera - Dahua - HAC-ME1500B-Ls-S2
  • Resolution 5Megapixel 5MP
  • Version S2
  • 3.6mm fixed optics
  • 1/2.7" 5MP 2688x1620 progressive scan CMOS sensor
  • Integrated PIR sensor ( 10 meter range)
  • SPECIAL FUNCTIONS:
    - Active Deterrence with White Light
    - Precise alarm via infrared PIR
  • Smart IR illuminator 1 LED (approx. 30m)
  • Day/Night(ICR), BLC / HLC / DWDR / Mirror Mode - Privacy Masking - 2DNR
  • IP67 Protection (Dust/Immersion) - Outdoor/Indoor Camera
  • 12V DC power supply (not included)
  • Material: Aluminum + plastic
  • Dimension: 146.6mm × 72.4mm × 83.0mm
  • Operating temperature: –40 °C to +60 °C Item net weight: 0.24 kg
  • 24 month warranty

Technical data sheet

HAC-ME1500B-LS-S2

Room

Image Sensor

5MP

Max. Resolution

1/2.7" CMOS

Pixel

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

0.005 Lux/F1.6, 30 IRE, 0 Lux IR on

Min. Illumination

> 65 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Car

Illuminator Number

1 (IR light)

Pan/Tilt/Rotation Range

0.27 kg (0.60 lb)

Gross Weight

0.41 kg (0.90 lb)

Further details

Sensore PIR

PIR sensor

This camera integrates a PIR sensor.
Thanks to the combination with the video motion sensor , motion detection will be double and even more reliable, reducing false alarms.

Thanks to this, your hard drive will last longer and will not have false alarm recordings.

No more false alarms caused by strong wind or rain will be detected.

Active deterrence:

Alerts intruders with built-in white light

  • Promptly reports intruders and takes action even before the break-in occurs
  • Improves accuracy with PIR and dual motion detection. Reduces storage space for motion-based recordings.

Alerts users in real time with alarm-on-coax and provides video evidence with HDCVI video recording

Protects owners and property during pre-programmed time frame and prevents disturbances during unnecessary hours thanks to configurable alarm period

Telecamere Dahua con funzioni IoT Active Deterrence

Precise alarm:

HDCVI surveillance with PIR alarm sensor allows important events to be seen.

Active deterrence

Active deterrence:

Alert intruders with built-in white light and siren!

Risoluzione 5.0 Megapixel (2560x1920)

5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.

1/2.7" 5MP progressive scan CMOS image sensor

3.6mm fixed optics

Illuminatore IR 20 Metri

IR illuminator with 1 LED and maximum range of 30m!

This camera also features SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted depending on the object being framed.
Tecnologia Smart IR

High Light Compensation Function Icon HLC (High Light Compensation) allows for better light management in the presence of direct light (cars, flashlights, etc.). It also prevents image blurring.
Example image of HLC High Light Compensation function
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night Function
ICR The IR CUT FILTER is a mechanical filter that allows for correct image display in daytime conditions. It filters out typical infrared frequencies, thus improving image quality. At night, the filter is removed as it is necessary to capture typical IR frequencies.
BLC

BLC (BACK LIGHT COMPENSATION) is one of three solutions for managing contrasty images. The BLC function allows for a reasonable adjustment to all those situations where shooting is difficult (parking lot entrances or exits, license plate shots, presence of particular lights, etc.).

DWDR function

D-WDR (Digital Wide Dynamic Range) is the software solution of the more powerful WDR integrated in the DSP, exactly as happens with digital zoom compared to optical zoom, it is a software simulation of emulation of WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
AGC

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and requires no specific settings.
Automatic Gain Control Function Example

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Materiale con cui è stato creato il dispositivo This camera is made of aluminum and plastic
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English Brochure

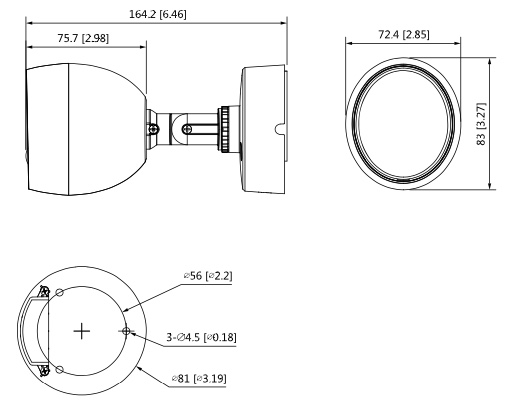

Schema dimensioni HAC-ME1500B-LED
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
