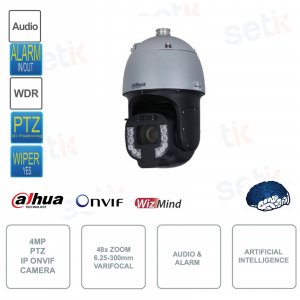

4MP ONVIF IP PTZ Camera - 48x Zoom - 6.25-300mm - Artificial Intelligence

4MP ONVIF IP PTZ Camera - 48x Zoom - 6.25-300mm - Artificial Intelligence
CERCHI ASSISTENZA O UN INSTALLATORE?
-57%

SD8C448PA-HNF - Dahua IP PoE ONVIF PTZ outdoor camera - Supports PoE - 4MP 2560x1440p resolution with Artificial Intelligence, 6.25-300mm lens (48x zoom), 4MP 1/1.8" CMOS sensor with Starlight Technology . IR illumination 10 LEDs up to 250m - Codec up to H.265+, Triple Stream, Day/Night (ICR), WDR 120dB, Defog , ROI, Wiper, Autotracking - PFA Technology - LAN RJ45 - RS485 - Audio + Alarm - Micro SD slot up to 512GB (not included) - IP67 and TVS8kV protection - Ideal for video surveillance systems set up outdoors.



Reference: SD8C448PA-HNF

Brand: Dahua

EAN: 6923172532961

€3,557.84

€8,274.04 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


PTZ OUTDOOR IP CAMERA ONVIF® HI-POE - 4MP - ARTIFICIAL INTELLIGENCE - 48x ZOOM 6.25-300MM - DAHUA - SD8C448PA-HNF

Made by Setik

ONVIF IP PTZ Camera - Dahua AI Series - SD8C448PA-HNF
Resolution 4MP 2560x1440p , 48x Optical Zoom (6.25-300mm) - 16x Digital Zoom - 1/1.8" Starlight CMOS Sensor - 10 LED IR Illuminator 250m - H.265+ - Day/Night(ICR) - Triple Stream - BLC - HLC - AWB - ROI - Defog - WDR 120dB - Video Analysis - Bi-Audio directional - Audio 1in/1out - Alarm 7in/2out - Windscreen wiper - MicroSD slot up to 512GB (not included) - RS-485 - RJ45 - IP67 / TVS8kV protection - Artificial Intelligence: Face Detection - Perimeter Protection - Metadata) - 24 Months Manufacturer's Warranty.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

Telecamera Videosorveglianza Dome Motorizzata 8MP  4K ULTRA-HD IR 500MT
  • IP ONVIF PTZ Starlight outdoor camera - AI Series - Dahua - SD8C448PA-HNF
  • 4MP resolution
  • 1/1.8" CMOS sensor with 4MP 2560x1440p Starlight Technology
  • Starlight: Thanks to the sensor, color shots even at night
  • Wipers
  • Triple Stream
  • 48x Optical Zoom (6.25-300mm) + 16x digital zoom
  • Video compression up to H.265+
  • ULTRA WDR (120dB) - Defog (optical), ROI, Day/Night(ICR), Auto Focus
  • Artificial Intelligence: Face Detection - Perimeter Protection - Metadata
  • Auto Tracking function: (Auto zoom on single, multi or panorama scene)
  • IR illuminator 10 LED up to 250 meters!
  • Audio: 1 in / 1 out
  • Alarm: 7 inputs and 2 outputs
  • BNC video output
  • RS485 port
  • IP67 protection (Dust / Immersion) - Outdoor camera
  • lightning protection 8KV)
  • MicroSD slot (512GB - not included)
  • Dimensions: 442mm × Φ262mm
  • Operating temperature: –40 °C to +70 °C
  • Product net weight: 10.3Kg
  • 24 months warranty

Data sheet

SD8C448PA-HNF

Room

Image Sensor

structure

Product Dimensions

442mm × Φ262mm (17.40" × Φ10.31")

Net Weight

10.3kg (22.71lbs)

Gross Weight

12.5kg (27.56lbs)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera complies with the ONVIF® standard

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Auto tracking
- Face detection Distinguishes the face from all other objects in the image

- Perimeter protection: Intrusion, Line crossing (people&vehicles classification), filters false alarms caused by animals, rustling leaves, bright lights etc...
- Metadata


AI Camera - Rilevamento volto

4MP resolution

This camera has a resolution of 4 Megapixels!

Starlight

1/1.8" sensor STARLIGHT technology.

Low brightness, color vision even in night mode

Starvis logo

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixel

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.


With the SENSOR present, night shots will be clear and in colour



This camera is equipped with a wiper , useful for improving the view in case of rain.


Triple Stream :

Main stream: 4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/960p/720p (1–25/30 fps)

This camera features the AUTO TRACKING function.
The system will identify the objects moving in a given video surveillance area and will automatically enlarge it for a better view of the tracked object.


IR illuminator 20 MT

This camera is equipped with 10 LED lighting with a maximum range of up to 250 meters!

32X optical zoom 48x Optical Zoom (6.25-300mm ) + 16x Digital Zoom

This camera is equipped with a wiper , useful for improving the view in case of rain.

Infrared Illuminator

It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:
Pan/Tilt Range: Pan: 0° to 360° endless Tilt: –20° to +90°
Manual Control Speed: Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s???????
Preset Speed: Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour(up to 32 preset per tour) 5 Scan
Power off memory: Yes
Idle Motion: Presets; Tours; Patterns; Scan
Protocol: DH-SD Pelco-P/D (auto recognition)

Full HDIt is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event
This camera has 7 inputs and 2 alarm outputs.
Ingresso Audio This camera features 1 Audio input + 1 Audio Output.
Dual encoding RS 485 for PTZ commands (remotely controllable cameras)
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Icon Function DEFOG Last Function present ONLY in the Sony Effio-V, It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
ULTRA WDR up to 140dB.
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db
MicroSD recording

Possibility to insert Micro SD (512GB - not included )

Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

Warranty This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
