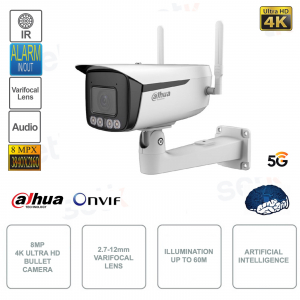

IPC-HFW5842DK1-Z-5G - Dahua - ONVIF IP camera - 4K Ultra HD 8MP - Outdoor - 2.7-12mm varifocal lens - 1/1.8" CMOS sensor 8MP 3840x2160p - Code H.265+ - Triple STream Video - Smart IR 60m (4IR Leds+ 4 Warm lights) - Artificial intelligence - Connections 5G - WDR 120dB - BLC - HLC - SSA - AWB - ROI - Defog - Alarm - Audio - Microphone - Loudspeaker - MicroSD 512GB slot - IP67 Outdoor protection - In plastic and metal.
€1,314.12
€3,056.10 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR ONVIF® IP CAMERA - 8 MEGAPIXELS WITH ARTIFICIAL INTELLIGENCE - 5G - ALARM - AUDIO - MICROPHONE - DAHUA - IPC-HFW5842DK1-Z-5G
ONVIF® IP Camera - Dahua AI Series - IPC-HFW5842DK1-Z-5G
8Megapixel 4K Ultra HD resolution - 2.7-12mm lens with motorized zoom - 1/1.8" CMOS sensor 8MP 3840x2160p - H.265+ Codec - Triple Stream Video - 5G Connectivity - Day/Night (ICR) - WDR 120dB - BLC - HLC - SSA - AWB - Defog - Mirror Mode - Privacy Masking - Smart IR Illuminator 4 LED + 4 warm lights up to 60m - Audio 1in/1out / Alarm 3in/2out - Microphone and loudspeaker - RS485 - MicroSD 512GB slot (not included) - IP67 protection for outdoor use - 12 VDC power supply (±30%) - Made of plastic and metal.
Artificial Intelligence: Face Detection / Intelligent Object Detection / Perimeter Protection / Heat Map / People Counting / Intelligent Search
Product details
- ONVIF outdoor IP AI camera - Dahua - IPC-HFW5842DK1-Z-5G
- 8Megapixel 4K ULTRA HD resolution
- 2.7-12mm varifocal lens with motorized zoom
- 1/1.8” CMOS 4K sensor
- 5G connectivity module on board
- Video compression up to H.265+
- Triple Stream
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Smart IR illuminator 4 IR LEDs + 4 Warm lights up to 60m
- Artificial Intelligence: Face Detection / Intelligent Object Detection / Perimeter Protection / Heat Map / People Counting / Intelligent Search
- Remote viewing with DMSS
- Audio : 1 Input + 1 RCA Output
- Alarm : 3 Inputs + 2 Outputs
- RS485
- RJ45 100M Ethernet LAN
- Micro SD memory slot (Up to 512GB - not included)
- IP67 protection (indoor/outdoor)
- Material: Metal + Plastic
- Dimensions: 281.3mm × 171.8mm × 191.7mm
- Operating temperature: –30 °C to +60 °C
- Item net weight: 2074g
- Power supply NOT included
- 5 year manufacturer's guarantee
Data sheet
| IPC-HFW5842DK1-Z-5G | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 3840(H)×2160(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3s–1/100,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Illumination | 0.005 lux@F1.8 (Color, 30IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
60m (196.85ft) (IR LEDs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Car; Zoomprius; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (IR LEDs); 4 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LensType | Motorized vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens mount | φ14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.7mm–12mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings | F1.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 113°–47° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Car | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 1.2m (3.94ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heatmap | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshots, quality priority and optimization snapshots); face angle filter; optimization time setting. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Tripwire people counting and people counting in area, queue management; 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codecs | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265 (Compression rate≥25%) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 3840×2160; 3072×2048; 3072×1728; 2592×1944; 2688×1520; 2560×1440; 2048×1536; 2304×1296; 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 3kbps–8192kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC extension | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC extension | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
wdr extension | 120dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Car; natural; street lamp; outdoors; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Car | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise reduction | 3D NO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures
–40°C to +60°C (–40°F to +140°F)
Protection
IP67
structure
Casing material
Metal + plastic
Product Dimensions
281.3 mm × 171.8 mm × 191.7 mm (11.07" × 6.76" × 7.55") (L × W × H)
Net Weight
2074 g (4.57 lb)
Gross Weight
2290g (5.05lb)
Further details
| AI | Artificial intelligence - Face Detection: Support face capture - People counting: after crossing the line or zone - Perimeter protection: Intrusion, Line crossing (people&vehicles classification) - Smart search | |
 |
| |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible | |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
| |
 | This camera has a resolution of 8Megapixel 8 MP : | |
 | 2.7-12mm varifocal lens with motorized zoom Motorized zoom example | |
 |
Main stream: 3840 × 2160@(1–25/30 fps) sub streams: D1@(1–25/30 fps) third stream: 1080p@(1–25/30 fps) | |
| IR illuminator with 4 IR LEDs and 4 warm lights and max range 60m! This camera is also equipped with SMART IR technology.
| |
 | Remote visibility on mobile using the Dahua DMSS application. | |
 | This product features 1 audio input + 1 audio output MICROPHONE AND SPEAKER EQUIPPED ON BOARD!!! | |
 | This camera has 3 inputs + 2 alarm outputs | |
 |
Allows you to remotely control PTZ movements. | |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  | |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  | |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  | |
 |
This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable  | |
 | It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   | |
 | Protection level IP67 ( Dust / Immersion ) | |
 | Possibility to insert Micro SD up to a maximum of 512GB - not included | |
 | Power supply NOT included  | |
 | This product is covered by a 24 month guarantee. |
