DAHUA IP CAMERA ONVIF® POE HYBRID THERMAL CAMERA - 13MM THERMAL OPTIC - 6MM VISIBLE - VIDEO ANALYSIS AND FIRE ALARM - TPC-BF5641-B13F6-S2 - S2 VERSION

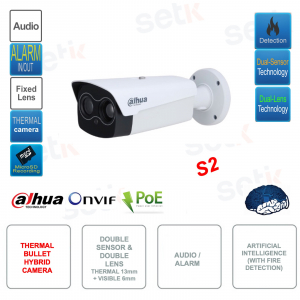

Hybrid Thermal Bullet IP Camera - Dahua - TPC-BF5641-B13F6-S2
Double lens and double image sensor - Thermal module : 13mm lens, Vanadium oxide uncooled focal plane detector sensor, 640x512 resolution - Visible module : 6mm fixed lens, 1/1.8" 4MP CMOS sensor - Codec H.265 - IR 80m (visible ) - WDR - AWB - 3DNR - HLC - BLC - Artificial intelligence - Two-way audio - Audio - Alarm - RS485 - RJ45 - IP67 and TVS 6kV protection from lightning - 256GB MicroSD slot (not included) - Sound and light alarm - For outdoor.
| THERMAL DETECTION |
|---|

  |
Product details

- IP Camera ONVIF® PoE Hybrid Thermal Bullet - Dahua - TPC-BF5641-B13F6-S2
 - S2 version
 -  Thermal Module:
13mm optics
Vanadium oxide uncooled focal plane detector
Resolution 640x512 -  Visible form:
Fixed 6mm optics
1/1.8" progressive scan CMOS sensor
Resolution 4MP, 2688(H)×1520(V) - Thermal Sensitivity: 40mK
 - Illumination 80m
 - Compression up to H.265
 - Detection of People (382m max.) and Mobile Vehicles (max. 1667)
 - Integrated Video Analysis ( Crossing, Intrusion)
 - Advanced intelligent functions (Fire detection and alarm, smoke detection, hot/cold spot trace, human/vehicle classification)
 - ROI, Motion Detection
 - 1 CVBS/BNC Video Out
 - Audio: 1 in and 1 out
 - Alarm: 2 inputs and 2 outputs
 - RS485 port
 - 100M Ethernet LAN RJ45 port
 - MicroSD slot (Max 256GB - not included)
 - 12V DC/PoE/ePoE power supply
 - Power supply NOT included
 - Operating temperature: –30 °C to +70 °C
 - Dimensions 300.9mm × 181.8mm × 181.8mm
 - Net weight: ≤2.35kg
 - Material: Metal
 - 24 months warranty

Data sheet
| TPC-BF5641-B13F6-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DetectorType  | Vanadium oxide uncooled focal plane detector  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels  | 400(H)×300(V)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch  | 17 μm  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range  | 8 μm–14 μm  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity (NETD)  | ≤35mK (@f/1.0)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View  | H:30.4°; V: 22.5°  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal Focus Control  | Fixed-focal  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance  | Product Dimensions  | 300.9 mm × 181.8 mm × 181.8 mm (11.85" × 7.16" × 7.16") (L × W × H)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions  | 423mm × 180mm × 178mm (16.65" × 7.09" × 7.01") (L × W × H)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight  | ≤2.35kg (5.18lb)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight  | ≤2.7kg (5.95lbs)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
lens  | Included  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | CE/FCC  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Detection Distance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | Max.Distance  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
13mm  | 114m (374.02ft)  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection Distance  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications  | Distance (Human)  | Distance (Vehicle)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
13mm  | 130m (426.51ft)  | 390m (1,279.53ft)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
Thermal camera... what is it? and how to choose it?  | |
![]()  | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
![]()  | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation  |
![]()  | This camera is a THERMAL CAMERA .
 Visual spectrum from 8 to 14µm
  |
  |  Thermal Sensor:
  |
![]()  |  This camera has a fixed 13mm (thermal) and 6mm fixed (visible) lens   |
![]()  |  This camera provides VIDEO ANALYSIS:
  |
![]() ![]()  | This camera has advanced intelligent features:    |
![]()  |  This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. ![]()  |
| This camera features the Motion function by connecting it to a recording device having alarm inputs. | |
![]()  | This camera features 1 Video Output (CVBS/BNC)  |
![]()  | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 2 inputs and 2 outputs  |
| This camera features 1 Input + 1 Audio Output | |
| RS 485 for PTZ commands (remotely controllable cameras) | |
![]()  |  Protection level IP67 ( Dust / Immersion )  |
Possibility to insert Micro SD up to a maximum of 256GB - not included  | |
![]()  | This camera was made of metal  |
| This product is covered by a 24 month guarantee. |
