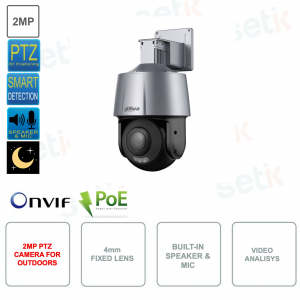

Telecamera PTZ IP POE ONVIF 2MP - Ottica 4mm - Video Analisi - Microfono e Speaker

Telecamera PTZ IP POE ONVIF 2MP - Ottica 4mm - Video Analisi - Microfono e Speaker
-56%

SD3A200-GN-HI-A-PV - Dahua telecamera IP da esterno ONVIF PoE 2MP - Ottica 4mm - Sensore CMOS 1/2.8" 2MP STARVIS - Dual Stream con Code H.265+ - Illuminatore 2xIR fino a 30m e  2x luce bianca fino a 30m - Audio bidirezionale con audio e microfono - Audio 1in/1out - DWDR, Day/Night (ICR), BLC, HLC, Motion Detection, AGC, 3DNR - Video Analisi: Tripwire e intrusione - Protezione IP66 da esterno - Ethernet RJ45 10/100M - Slot MicroSD 256GB (non inclusa) - Protezione TVS2000 - IP66 da esterno - Include supporto.

Reference: SD3A200-GN-HI-A-PV

Brand: Dahua

EAN: 6923172526588

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


TELECAMERA IP POE ONVIF® PTZ 2MP - OTTICA FISSA 4MM - DETERRENZA ATTIVA - VIDEO ANALISI - MICROFONO E SPEAKER - DAHUA - SD3A200-GN-HI-A-PV

Made by Setik
Telecamera IP PoE ONVIF® PTZ 2MP - Dahua - SD3A200-GN-HI-A-PV
Risoluzione 2MP 1080p - Ottica fissa da 4mm - Sensore CMOS  1/2.8” 2MP 1920x1080 STARVIS (per visione a colori 24/7) - Illuminatore IR 2x fino a 30m e 2x luce bianca 30m - Day/Night(ICR) - DWDR - ROI - AWB - AGC - 3DNR - Microfono e speaker a bordo - Audio 1in/1out - Slot MicroSD (256GB Non Inclusa) - Video Analisi: Attraversamento linea, intrusione - Protezione IP66 da esterno - TVS2000 dai fulmini - Ethernet 10/100 RJ45 - Alimentazione: 12 VCC /1,5A (±10%) / PoE (802.3af) - Supporto incluso.

Dettagli prodotto

Telecamera a colori SD3A200-GN-A-PV
  • Telecamera IP ONVIF® PoE - PTZ - Dahua - SD3A200-GN-HI-A-PV
  • Risoluzione 2MP 2 Megapixel 1920 (H) × 1080 (V)
  • Sensore CMOS 1/2.8" 2MP STARVIS
  • CMOS STARVIS: Visione a colori 24/7
  • H.265+ Video Compressione
  • Dual Stream
  • Ottica fissa da 4mm
  • DWDR, Day/Night(ICR), Motion Detection, BLC, HLC, AGC
  • Illuminatore IR 30m (2x)
  • Illuminatore luce bianca 30m (2x)
  • Video Analisi: Attraversamento linea, Intrusione
  • Audio: 1 ingresso + 1 uscita (Microfono e altoparlante integrati) Bidirezionale
  • 1 Porta RJ45 10/100M
  • Protezione IP66 (Polveri / Immersioni), ideale per sistemi allestiti in esterni
  • Slot per MicroSD (Max 256GB - non inclusa)
  • Dimensioni: 140 (W) x 271.7 (H) x 165.5 mm
  • Temperatura funzionamento: –30 °C to +60 °C (–22 °F to +140 °F)
  • Peso del prodotto: 1.07kg
  • Garanzia 24 mesi
  • Alimentazione: 12V DC /1.5A (±10%) / PoE (802.3af)
  • Include staffa di montaggio
  • Temperatura di funzionamento: 30°C ~ +60°C

Scheda tecnica

SD3A200-GN-HI-A-PV
Technical Specs

1/2.8" Sony STARVIS 2 megapixel CMOS image sensor

Video compression H.265+, H.264+, H.265, H.264 and MJPEG

Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)

Stream 1: 1080P, 1.3MP, 720P (1~25/30fps)

Stream 2: D1, CIF (1~25/30ips)

Day/night mode with removable mechanical filter

0.002 lux F1.6 (color), 0.0002 lux F1.6 (B/W), 0 lux with backlight on

Smart IR: 2 IR leds + 2 white leds, up to 30 meters

4mm fixed lens

View Angle: 88.9°(H), 47.7°(V), 104.7°(D)

Picture modes: BLC, HLC, digital WDR, 2D/3D-NR

White balance with 8 modes

Automatic and manual gain control

Support video sensor

Intelligence IVS: line crossing detection and intrusion detection

Horizontal positioner: 0° ~ 355°

Vertical positioner: -15° ~ 90°

Manual speed: 0.1° ~ 26°/sec. (H), 0.1° ~ 17.5°/sec. (V)

Preset speed: 26°/sec. (H), 17.5°/sec. (V)

300 presets

MicroSD card slot up to 256GB (card not included)

Two-way audio with microphone and speaker

1 input / 1 audio output

Network interface: RJ45 (10/100 Base-T)

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, SSL, FTP, ARP, RTCP, RTP, IP Filter, RTMP, TCP

Remote viewing with IOS and Android browsers and smartphones

Up to 20 users

Smart PSS, DMSS management software

Interoperability: ONVIF, CGI

Power: 12V DC /1.5A (±10%) / PoE (802.3af)

Consumption: 4W (12.95W with IR lighting activated)

Operating conditions: -30°C ~ +60°C, humidity <95%

Degree of protection IP66

Lightning-proof 2KV

Dimensions: 140 (W) x 271.7 (H) x 165.5 mm

Weight: 1.07kg

Includes Stand



Ulteriori dettagli

Standard ONVIF® Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione
Alimentazione PoE

Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice



Risoluzione Full-HD 1920x1080

Questa telecamera presenta una risoluzione FullHD 1920x1080p



Sensore CMOS 1/2.8" da 2MP



Risoluzioni supportate: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)

TLC_FIXED_lens.jpg Ottica fissa da 4mm.

Sensore 1/2.8" STARVIS con tecnologia STARLIGHT.

Bassa luminosità, visione a colori anche in modalità notte



Logo Starvis

Con l'aggiunta della caratteristica STARVIS abbiamo notevoli vantaggi:

- Struttura Retro-illuminata con 2.9 µm-square unit pixel

- Alta sensibilità (due o più volte maggiore rispetto ad altri prodotti presenti sul mercato)

- Sensibilità incrementata nelle vicinanze di una zona coperta da luce infrarosso

- Supporta WDR (esposizione multipla WDR, DOL-WDR)

- Interfaccia Versatile (CMOS parallel, basso voltaggio LVDS serial, MIPI CSI-2)



Con il sensore CMOS della Sony è possibile avere riprese a colori anche in modalità notte.

Normalmente, entrando in modalità notte, la visione da colori diventa bianco/nero.



Con il SENSORE presente le riprese notturne saranno nitide e a colori



 Codifica video Smart H.265+

Smart H.265+

Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete.

Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard



Video compressione Smart H.265+



Questa telecamera prevede funzioni di VIDEO ANALISI / SMART DETECTION:
- Riconoscimento attraversamento linea
- Intrusione



Attraversamento linea

Illuminatore Infrarossi

Funzioni generiche PTZ:

  • Horizontal positioner: 0° ~ 355°
  • Vertical positioner: -15° ~ 90°
  • Manual speed: 0.1° ~ 26°/sec. (H), 0.1° ~ 17.5°/sec. (V)
  • Preset speed: 26°/sec. (H), 17.5°/sec. (V)
  • 300 presets
Funzione DWDR

D-WDR (Digital Wide Dynamic Range) è la soluzione Software del più potente WDR integrato nel DSP, esattamente come avviene per lo zoom digital rispetto allo Zoom Ottico, è una simulazione software di emulazione della tecnologia WDR, comunque estremamente utile in circostanza di forte contrasto.

Esempio funzione Digital Wide Dynamic Range
Illuminatore IR fino a 30mt

Questa telecamera è provvista di doppio illuminatore IR LED con portata massima di circa 30m. (2 illuminaotori)
Include inoltre 2 illuminatori a luce bianca fino a 30m

Icona Funzione Day/Night Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente.
Esempio Funzione Day/Night
Funzione IR Cut Filter

L'IR CUT FILTER è un filtro meccanico che permette una corretta visualizzazione delle immagini nelle condizioni di visione diurna, filtrando le frequenze tipiche dell'infrarosso, migliorando così la qualità dell'immagine. In condizioni notturne il filtro viene rimosso in quanto è necessario catturare le frequenze tipiche dell'IR.

Esempio Funzione IR Cut Filter

Funzione ROI Questa telecamera è dotata di funzione ROI.

Le immagini derivanti da telecamere IP sono “compresse”, di conseguenza la qualità viene impostata in fase di registrazione. Soprattutto su telecamere con una risoluzione molto alta, spesso è necessario ridurre la qualità in modo da garantirsi un’occupazione di banda ridotta e registrare un numero maggiore di giorni o di telecamere.
Il ROI permette di definire delle zone dove impostare una qualità maggiore (ad esempio una porta, l’area dove solitamente passa la targa, un’uscita, etc.). In quell’area posso impostare una qualità più alta garantendomi così una maggior definizione dell’immagine.
Ultra Smart Funzione ROI
Funzione Motion Detection
Questa telecamera presenta la funzione Motion collegandola ad un dispositivo di registrazione avente ingressi allarme.
MicroSD Recording

Possibilità di inserire Micro SD (Max 256GB - non inclusa)

Questo DVR presenta ingressi / uscite audio Comunicazione bidirezionale con microfono e altoparlante.
TLC_IP66_Waterproof.jpg IP66: garantisce l'impossibilità per la polvere di entrare nella telecamera e la protezione da getti d'acqua di qualsiasi tipo (es: pioggia)

Garanzia Questo prodotto è coperto da Garanzia di 24 mesi.

Download

Scaricate il Depliant: attualmente non disponibile
