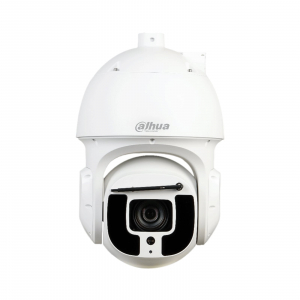

DAHUA CAMERA-4MP-5.6mm-223mm-ZOOM 40X-STARLIGHT-PTZ-5G

-57%

SD8A440PA-HNF-5G - Dahua Outdoor PoE ONVIF PTZ IP Camera - Supports PoE - 4MP 2560x1440p Resolution with Artificial Intelligence, 5.6-223mm Optics (40x Zoom), 4MP 1/1.8" CMOS sensor with Starlight Technology . 10 LED IR illumination up to 500 m - Codec up to H.265+, Triple Stream, Day/Night (ICR), WDR 140dB, Defog , ROI, Wiper, Autotracking 3.0 LAN RJ45 - RS485 - 5G/4G CONNECTIVITY

Audio + Alarm - Micro SD slot up to 512GB (not included) - IP67 and TVS8kV protection - Ideal for video surveillance systems set up outdoors.

415.9 mm × Φ262.0 mm (16.37" × Φ10.32")

Reference: SD8A440PA-HNF-5G

Brand: Dahua

https://www.setik.biz/en/cameras/9626-dahua-sd8a440pa-hnf-5g-camera-ptz-ip-onvif-4mp-48x-zoom-625-300mm-artificial-intelligence.html

€3,860.01

€8,976.76 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Technical Data Sheet Further Details Download

PTZ OUTDOOR IP CAMERA ONVIF® HI-POE - 4MP - ARTIFICIAL INTELLIGENCE - 40x ZOOM 5.6-300MM -5G DAHUA - SD8A440PA-HNF-5G

ONVIF IP PTZ Camera - Dahua AI Series - SD8A440PA-HNF-5G
4MP 2560x1440p resolution, 40x Optical Zoom (6.25-300mm) - 16x digital zoom - 1/1.8" STARVIS CMOS Starlight sensor - 10 LED 500m IR illuminator - H.265+ - Day/Night(ICR) - Triple Stream - BLC - HLC - ROI - Defog - WDR 140dB - Video Analysis - Audio 1in/1out - Alarm 7in/2out - Windscreen wiper - MicroSD slot up to 512GB (not included) - RS-485 - RJ45 - 5G-4G IP67 / TVS8kV protection - Artificial intelligence: Face Detection - Perimeter Protection - Metadata) - 24 Month Manufacturer's Warranty.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

ONVIF IP Outdoor Starlight PTZ Camera - AI Series - Dahua - SD8A440PA-HNF-5G
4MP resolution
1/1.8" STARVIS CMOS sensor with 4MP 2560x1440p Starlight Technology
Starlight: Thanks to the sensor, color shooting even at night
Wiper
Triple Stream
40x Optical Zoom (5.6-300mm) + 16x digital zoom
Video compression up to H.265+
ULTRA WDR (140dB) - Defog (optical), ROI, Day/Night(ICR), Auto Focus
Artificial Intelligence: Face detection - Perimeter protection - Metadata
Auto Tracking function: (Automatic zoom on single, multiple or panoramic scene)
10 LED IR illuminator up to 500 meters!
Audio: 1 in / 1 out
Alarm: 7 inputs and 2 outputs
BNC video output
RS485 port
5G connectivity
IP67 protection (Dust / Immersion) - Outdoor camera
8KV lightning protection)
MicroSD slot (512GB - not included)
Dimensions: 415.9 mm × Φ262.0 mm (16.37" × Φ10.32")
Operating temperature: –40 °C to +70 °C
Product net weight: 8.5Kg
24 month warranty

Data sheet

Room

Image Sensor

1/1.8" CMOS

Pixels

4MP

Max.Resolution

2560(H)×1440(V)

Electronic Shutter Speed

1/1 s–1/30,000 s

ROM

RAM

Scanning System

Progressives

Min. Illumination

Color: 0.001 lux@F1.4

B/W: 0.0001 lux@F1.4

0 lux (IR light on)

Illumination Distance

500 m (1640.42 ft) (IR)

Illuminator On/Off Control

Prio Zoom; Manual

Illuminator Number

10 (IR)

Wiper

Smart wiper

Lens

Focal Length

5.6mm–223mm

Max. Openings

F1.4–F4.5

Field of View

H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4°

Optical Zoom

40×

Focus Control

Car; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Iris Control

Car; Manual

DORI Distance

Detect

Observe

Recognize

Identify

3,034.5 m (9,955.71 ft)

1,198.6 m

(3,932.48 ft)

606.9 m (1,991.14 ft)

303.4 m (995.41 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –30° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–240°/s
Tilt: 0.1°/s–100°/s

Preset Speed

Pan: 240°/s; Tilt: 120°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Patterns

Scan

Power-off Memory

Yes

Idle Motion

Patterns; Presets; Scan; Tours

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, facial expressions, glasses, face mask, and mustache

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Recognition

Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first

Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces

Auto Tracking

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; MJPEG(Sub Stream); Smart H.264+; H.264M

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/1080p/1.3M/720p (1–50/60 fps)

Sub stream 1: D1/CIF (1–50/60 fps)

Sub stream 2: 1080p/1.3M/720p (1–50/60 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.265/H.264: 512kbps–8192kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

140dB

HLC

Yes

White Balance

Car; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Car; manual

Noise Reduction

2DNR; 3D NO

Region of Interest (RoI)

Yes

Image Stabilization

Yes

Defog

Optical Defog

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥55dB

Audio

Audio Compression

G.711a; G.711Mu; G7221; G726; MP2L2; G729

Network

Network Port

RJ-45 (10/100 Base-T)

Yes

Carrier Network System

4G;5G

Wireless Carrier Frequency Band

5G NR: N1/2/3/5/7/8/25/38/40/41/48/66/77/78/79
LTE-TDD: Band 34/38/39/40/41/42/48
LTE-FDD: Band 1/2/3/4/5/7/19/25/30/32/66
UMTS: Band 1/2/3/4/5/8/19

Network Protocol

TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMPv1/v2c/v3(MIB-2); Qos; RTSP; ARP

Interoperability

ONVIF (ProfileS&G&T); CGI; SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP; Micro SD card (512GB); NAS

Browsers

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions

Management Software

DMSS; DSS pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4/EN55035/EN61000-3-2/EN61000-3-3/EN62368-1

FCC: Part15 subpartB

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; presets; tours; pattern; recordings; alarm digital input; send email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

7/2

Audio I/O

1/1

Power

Power Supply

36VDC/3A±25%

Power Consumption

Basic: 22W
Max.: 53 W (illuminator + PTZ + pulling stream in 5G)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperatures

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

≤95%

Protection

IP67, TVS 8000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

415.9 mm × Φ262.0 mm (16.37" × Φ10.32")

Net Weight

8.5 kg (18.74 lb)

Gross Weight

13.3 kg (29.32 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard
	AI \| Artificial intelligence This camera features Artificial Intelligence on board This means it has a wide range of advanced features such as: - Auto tracking - Face detection Distinguishes the face from all other objects in the image - Perimeter protection: Intrusion, Line crossing (people & vehicle classification), filters false alarms caused by animals, rustling leaves, bright lights etc... - Metadata
	This camera features a resolution of 4 Megapixels!
	1/1.8" STARLIGHT technology sensor. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	This camera is equipped with Tergioptic , useful for improving the view in case of rain.
	Triple Stream : Main stream: 4M/1080p/1.3M/720p (1–50/60 fps) Sub stream 1: D1/CIF (1–50/60 fps) Sub stream 2: 1080p/1.3M/720p (1–50/60 fps)
	This camera features the AUTO TRACKING 3.0 function The system will identify objects moving in a specific video-surveillance area and will automatically enlarge it for a better view of the tracked object.
	This camera is equipped with 10 LED lighting with a maximum range of up to 500 meters!
	Optical Zoom 40 (5.6-223mm ) + 16x Digital Zoom
	Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range Pan: 0° to 360° endless Tilt: –30° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s Preset Speed Pan: 240°/s; Tilt: 120°/s Presets 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Pattern; Presets; Scan; Tours PTZ Protocol DH-SD Pelco-P/D (Auto recognition)
	It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 7 inputs and 2 alarm outputs.
	This camera has 1 Audio Input + 1 Audio Output.
	RS 485 for PTZ Commands (Remotely Controlled Cameras)
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	Latest function present ONLY in Sony Effio-V, allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	ULTRA WDR up to 140dB. WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
	Possibility to insert Micro SD (512GB - not included )
	Protection level IP67 (Dust / Immersion)
	This product is covered by a 24 month warranty.
