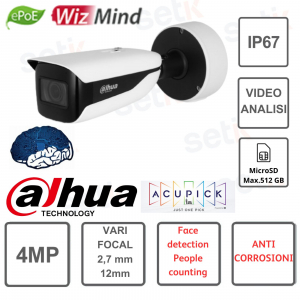

DAHUA 4MP IR60M CAMERA - Vari-focal 2.7mm-12mm WizMind -IA

-57%

IPC-HFW5442H-ZHE-ATC-S3 Dahua AI Onvif PoE external IP camera with Artificial Intelligence , 4 Megapixel 4MP , 1/1.8" CMOS sensor with 2.7-12mm optics with motorized zoom and compression up to H.265+ . Smart IR 4 illuminator 60MT LED, Day/Night (ICR), WDR 140dB, Video Analysis , AcuPick EIS, ROI, Defog, MicroSD Slot, Audio & Alarm, RS-485, IP67/IK10 ANTI CORROSION. S3 Version

Reference: IPC-HFW5442H-ZHE-ATC-S3

Brand: Dahua

https://www.setik.biz/en/cameras/9849-dahua-ipc-hfw5442h-zhe-atc-s3-ai-ip-camera-onvif-poe-8mp-motorized-starlight-wdr-s2-dahua.html

€524.08

€1,218.78 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Technical Data Sheet Further Details Download

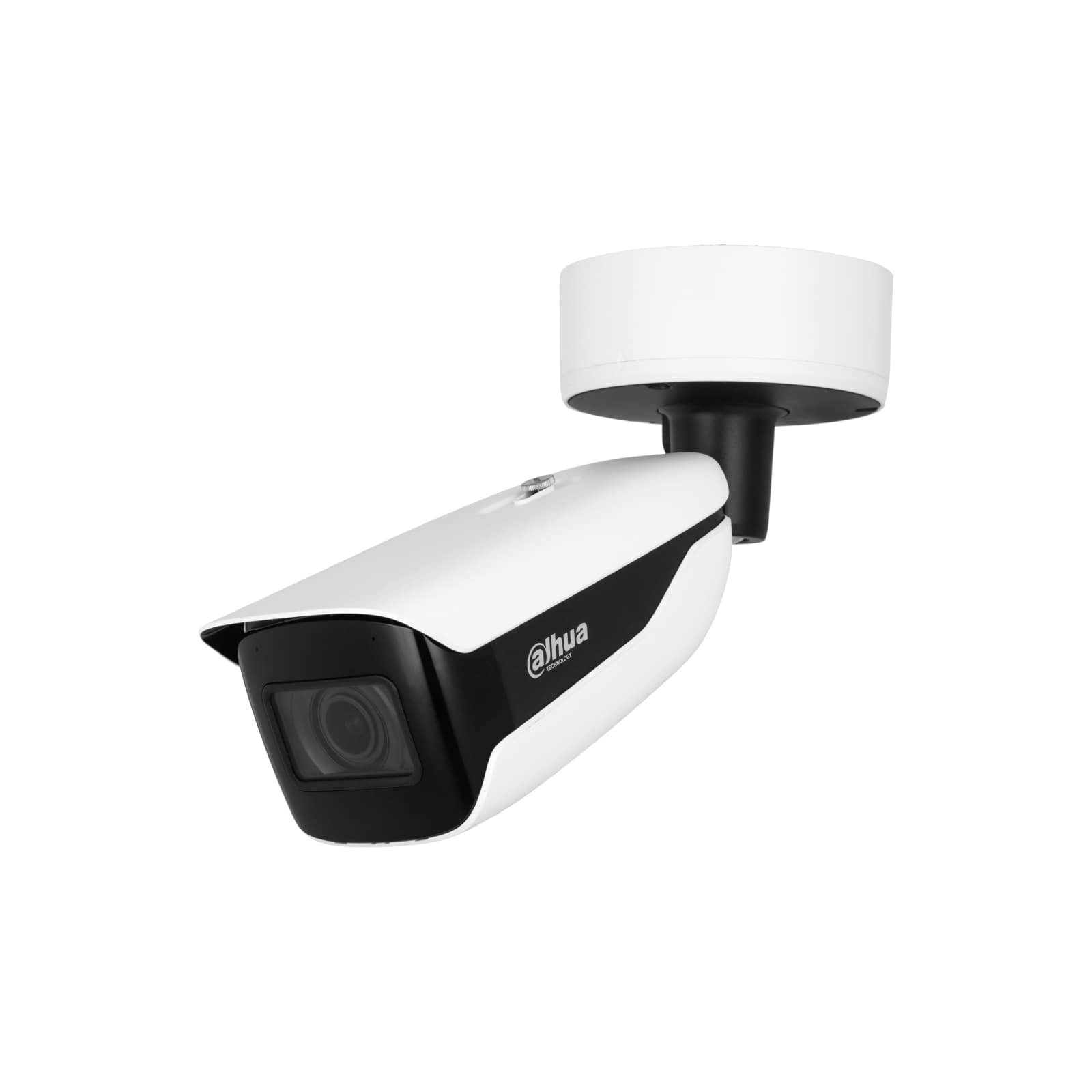

IPC-HFW5442H-ZHE-ATC-S3-OUTDOOR ONVIF® POE IP CAMERA - 4 MEGAPIXELS WITH ARTIFICIAL INTELLIGENCE - S3 VERSION - DAHUA

ONVIF® PoE IP Camera - AI Series - S3 Version - Dahua
4 Megapixel resolution - 2.7-12mm optics with motorized zoom - 1/1.8" CMOS - Day/Night (ICR) - WDR 140dB - Smart IR illuminator 4 LEDs 60MT
Artificial Intelligence and Video Analysis - Audio/Alarm, RS485, MicroSD Slot (max. 512Gb)

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

PoE external AI IP camera - Dahua
S3 version
4Megapixel 4MP resolution
2.7-12 mm varifocal lens with motorized zoom
1/1.8” CMOS sensor
Video compression up to H.265+
Four Streams
WDR 140dB - Day/Night (ICR) - 3D NR,BLC
Smart IR illuminator 4 LEDs 60MT
Artificial Intelligence : Face Detection / Perimeter Protection / People Counting / Intelligent Search
Video Analysis: abandoned / lost objects, movement of objects
AcuPick Dahua AcuPick technology is a video search engine which, using both front-end and back-end artificial intelligence, allows you to quickly locate the necessary information. You can use it to find a lost person, locate a specific vehicle, or retrieve video evidence needed to report an accident
Remote viewing with DMSS
Audio : 1 Input + 1 Output
Alarm : 3 Inputs + 2 Outputs
RS-485
Micro SD memory slot (Up to 5126GB - not included)
Protection IP67 / IK10 (indoor/outdoor)
ANTI CORROSION
Material: Metal + Plastic
Power supply NOT included
24 month warranty

Data sheet

Room

Image Sensor

1/1.8" CMOS

Max.Resolution

2688(H)×1520(V)

ROM

4GB

RAM

1GB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0006 lux@F1.2 (Color, 30 IRE)
0.0003 lux@F1.2 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

Up to 60 m (196.85 ft) (IR)

Illuminator On/Off Control

Car; Zoomprio; Manual

Illuminator Number

4 (IR LED)

Angle Adjustment

Pan: 0-360°
Tilt: 0-90°
Rotation: 0-360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7mm–12.0mm

Max. Openings

F1.2

Field of View

H: 114°–48°; V: 59°–27°; D: 143°–56°

Iris Control

Car

Iris Control Type

P-Iris

Close Focus Distance

1.75 m (5.74 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

TO SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codecs

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1@ (1–25/30 fps)
Third stream: 1080p@ (1–25/30 fps)
Fourth stream: 720p@ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32kbps–16384kbps
H.265: 12kbps–11008kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise Reduction

3D NO

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688×1520 )resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in dual Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 80M)

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS

Browsers

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Alarm Input

3 channels in: wet contact, 5mA 3V–5V DC

Alarm Output

2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS output: BNC)

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/24 VAC/PoE (802.3at)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3.7W (12VDC); 4.7W (24VAC); 5W (PoE)
Max. (Focus+WDR+ Intelligence on+IR on): 12.9 W (12 VDC); 15.1W (24VAC); 16.1W (PoE)
Heating: 3W (12VDC); 3.6W (24VAC); 3.8W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperatures

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal + plastic

Product Dimensions

345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H)

Net Weight

1.6 kg (3.53 lb)

Gross Weight

2.4 kg (5.29 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	AI \| Artificial intelligence This camera features Artificial Intelligence on board This means it has a wide range of advanced features such as: - People counting: following line or area crossing - Perimeter protection: Intrusion, line crossing (people&vehicle classification)
	Dahua AcuPick technology is a video search engine that, by effectively using artificial intelligence, both front-end and back-end, is able to quickly locate the information you need. Use it to find a lost person, locate a specific vehicle or video evidence needed to report an accident.
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera has a resolution of 4Megapixel 4MP :
	2.7-12 mm varifocal lens with motorized zoom Motorized zoom example
	Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@ (1–25/30 fps) Third stream: 1080p@ (1–25/30 fps) Fourth stream: 720p@ (1–25/30 fps)
	IR illuminator with 4 LEDs and maximum range of 60 meters!
	Remote visibility on mobile using the Dahua DMSS application.
	This DVR features 1 audio input + 1 audio output
	This camera has 3 inputs + 2 alarm outputs
	RS485 directly on the camera.
	ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	This camera features EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
	It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
	Possibility to insert Micro SD up to a maximum of 512Gb - not included
	Power supply NOT included
	This product is covered by a 24 month warranty.
