Dahua camera - IPC-HDBW2441R-ZS - POE IP Dome ONVIF - 4MP Resolution - 2.7-13.5mm motorized varifocal lens - 1/2.9" 4MP CMOS - Smart Codec H.265+ - Dual Stream Video - Smart IR 2LED up to 40m - Artificial intelligence with: smart search / perimeter protection - HLC - BLC - WDR 120dB - 3DNR - Mirror - Privacy Masking - day/night(ICR) - ROI - Event alarm - Integrated microphone - MicroSD slot up to 256GB (not included) - Outdoor protection IP67 and IK10 - Metal body.
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

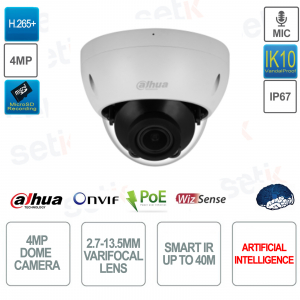

POE ONVIF® 4MP DOME IP CAMERA - 2.7-13.5MM LENS - ARTIFICIAL INTELLIGENCE - MICROPHONE - IP67 AND IK10 PROTECTION - DAHUA - IPC-HDBW2441R-ZS
4MP Resolution - 2.8mm Optics - CMOS 1/2.9" 4MP - H.265+ Smart Codec - Dual Stream Video - 40m Smart IR Illuminator with 2 LEDs - Day/Night (ICR) - HLC - BLC - Day/Night(ICR) - 3DNR - Mirror - Privacy Masks - WDR 120dB - Dual Stream - Artificial intelligence : intelligent search / perimeter protection - 256GB MicroSD slot (sold separately) - Microphone - 12 VDC/PoE (802.3af) power supply (not included) - Warranty 24 months
Product details
- ONVIF® PoE Dome outdoor IP camera - Dahua - IPC-HDBW2441R-ZS
- Resolution: 4MP 2688(H)×1520(V)
- Progressive scan CMOS image sensor, 1/2.9"
- Motorized varifocal lens 2.7-13.5mm
- Video compression: H.265+ Smart Codec
- Dual Stream
- Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Smart IR illuminator with maximum range of 40m with 2LEDs
- Remote visibility. Supports DMSS Application (Best CCTV Software for Mobile) .
- Artificial Intelligence: Smart Security and Perimeter Protection
- MicroSD slot (Max 256GB - sold separately)
- RJ45 100M Ethernet network interface
- IP67 protection (from dust/immersion)
- IK10 protection (protection against vandalism
- Material: metal shell
- Operating temperature: –40 °C to +60 °C
- Dimensions: 93.4 mm × Φ122 mm (3.68" × Φ4.80")
- Item net weight: 0.49kg
- 24 Months Italian Warranty
Data sheet
| IPC-HDBW2441R-ZS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.9" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 2688(H)×1520(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 40 m (131.23 ft) (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto;Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Yes | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF® (Profile S/Profile G); CGI; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 6 (Total bandwidth: 36M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP;SFTP; Micro SD card (support max. 256GB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browsers | IE; Chrome; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 2.3W (12VDC); 2.9W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –40 °C to +60 °C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67; IK10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 93.4 mm × Φ122 mm (3.68" × Φ4.80") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.49kg(1.08lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.66kg(1.46lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera features a resolution of 4 Megapixels! |
 | This camera has a 2.8mm fixed lens. |
 | Infrared illuminator with REAL range up to 30m for night vision, with 3 LED illuminators. This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.  |
 | This camera includes ARTIFICIAL INTELLIGENCE functions, integrated on board!:
|
 | Remote visibility on mobile using the Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically. |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...). |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of little light and in motion, the currently most powerful solution for obtaining maximum results in the presence of little light.  |
 | This camera is equipped with an on-board microphone |
 | Possibility of inserting a Micro SD up to a maximum of 256GB (not included) |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | 12V DC power supply NOT included!
|
 | This product is covered by a 24 month warranty. |
